Teknim TFB-3168 Installation & User Manual

Conventional Manual Call Point with Led, Resettable
GENERAL
 Read this manual carefully before operating the equipment and
save it for future reference.
 Observe all warnings and precautions specified in the operating
instructions. Follow all operating and usage instructions.
 Keep devices away from water and moisture.
SERVICE AND MAINTENANCE
Do not try to fix the device on your own, removal of cover may end
up with electricity shock. In case of any defect or malfunction,
contact with your dealer or with authorized service. All the technical
interventions has to be done by technicians of service company.
Device must be cleaned up with a dry fabric. No-chemicals are
allowed for cleaning.
Warning: Do not attempt to remove the electronic board from
its plastic case. The electronic board is closed for your safety.
Users should avoid from interference.
MALFUNCTIONS THAT REQUIRE TECHNİCAL SERVICE
In the event of any malfunction or in the following cases, contact
your authorized service or dealer.
 When the power cord is damaged,
 When any liquid flows into the device or any object falls,
 When exposed to water or rain,
 If the device has been dropped or the housing has been
damaged,
 If the device has noticeable performance changes,
 If the device does not operate normally according to the
operating instructions specified in the installation manual,
Contact with your authorized service in such terms.
TRANSPORTATION AND SHIPPING
The device must be handled carefully so that it is not exposed to
any external impact and does not allow any liquid to enter.
Malfunctions during improper handling are not covered by the
warranty.
HUMAN AND ENVIRONMENTAL HEALTH
This device does not contain any chemical or biological substances
that may harm human health.
* 2012/19/EU (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product
to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
TFB-3168
Installation & User Manual
Rev. Date: 19/11/2024 - Rev. No:00

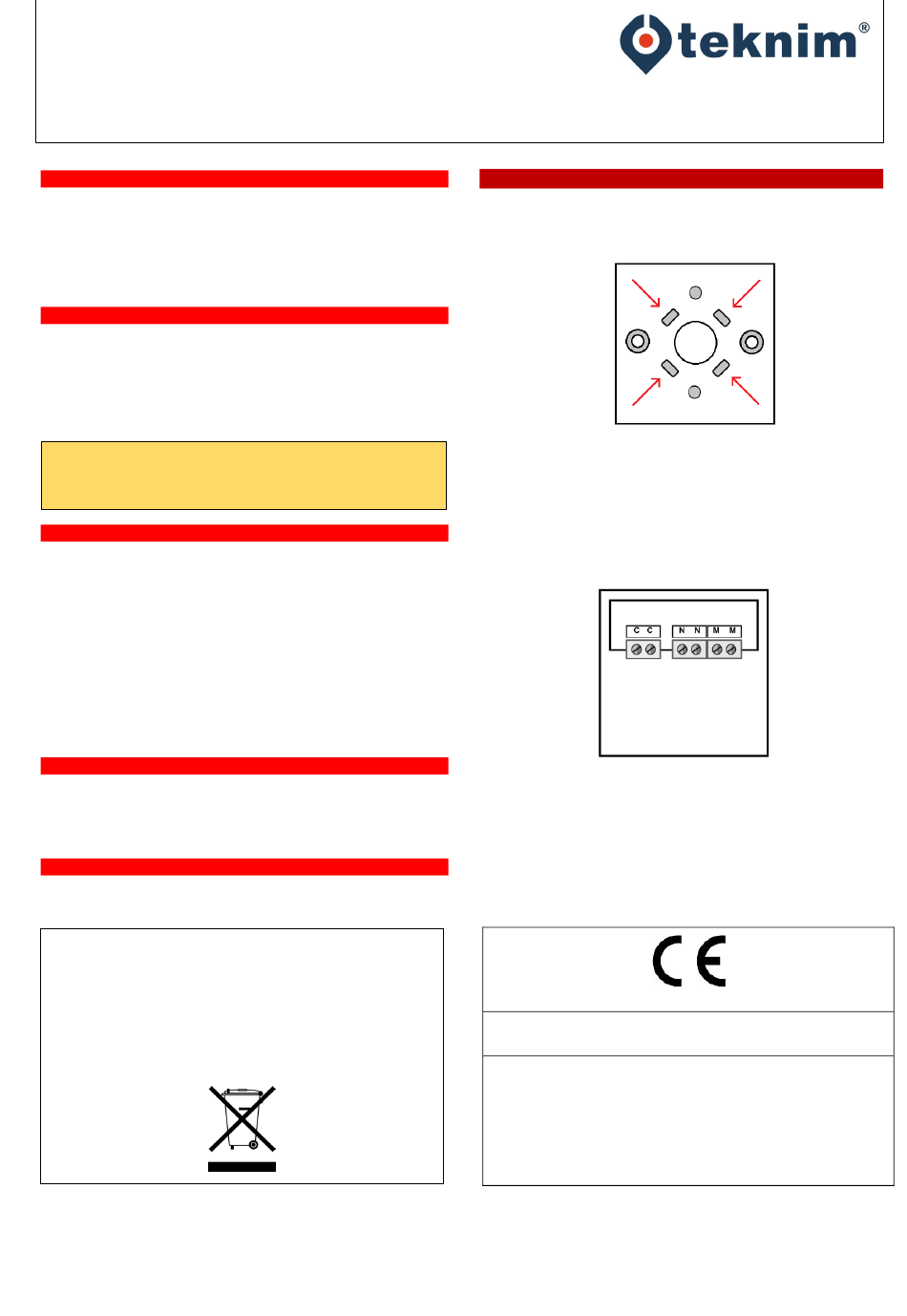

Mounting and Connection
1.
Mount the fire cable on the wall in such a way that it passes
through the channeled base. Be careful not to overtighten the
mounting screws.
2. There is an internal 470 ohm resistor between the C and N
terminals, and an internal 100 ohm resistor between the C and M
terminals, and there is no need to connect additional 470 ohm and
100 ohm resistors for the connection. You need to connect the +
(positive) cable from the Conventional Fire Alarm panel to the N or
M terminal, and the - (negative) cable to the C terminal.
1922-CPR-2292
EN 54-11:2001, EN 54-11:2001/A1:2005
Manual Call Points
Technical data: see BİLGİ-TEC-231212 held by the
manufacturer.
Release Date: 17/04/2024
Doc. Ref.: HM.Z.KLV.8178
1922
24
TFB-3168
