Teknim TFS-1182R Installation Manual page 2

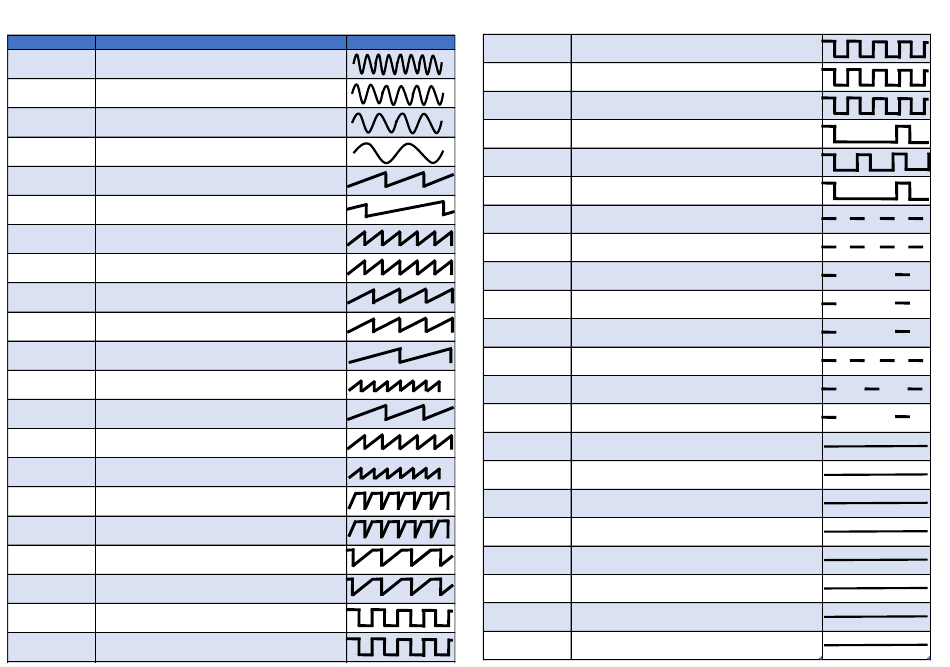

Supported Tones
Tone Modes
Default tone 1754Hz ~ 2380Hz sinus signal
TONE 1 (default)
11 HZ 600 us
Specific tone 1754Hz ~ 2380Hz sinus signal
TONE 2
5 HZ 1333 us
Specific tone 1754Hz ~ 2380Hz sinus signal
TONE 3
1 HZ 6666 us
Specific tone 500Hz ~ 1200Hz sinus signal
TONE 4
0.33 HZ 2594 us
Specific tone 2400Hz ~ 2850Hz sawtooth signal
TONE 5
7 HZ 2197 us
Specific tone 2400Hz ~ 2850Hz sawtooth signal
TONE 6
1 HZ 15384 us
Specific tone 2400Hz ~ 2850Hz sawtooth signal
TONE 7
50 HZ 307 us
Specific tone 300Hz ~ 1200Hz sawtooth signal
TONE 8
1 HZ 400 us
Specific tone 500Hz ~ 1200Hz sawtooths signal
TONE 9
1 HZ 856 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE 10
7 HZ 646 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE 11
1 HZ 4524 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE12
50 HZ 90 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE 13
2 HZ 2262 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE14
9 HZ 502 us
Specific tone 800Hz ~ 970Hz sawtooth signal
TONE 15
100 HZ 45 us
Specific tone 500Hz ~ 988Hz sawtooths-square signal
TONE 16
321 us 250000 us
Specific tone 500Hz ~ 1200Hz sawtooths-square signal
TONE 17
299 us 500000 us
Specific tone 500Hz ~ 1200Hz sawtooths-square signal
TONE 18
600 us 500000 us
Specific tone 1200Hz ~ 500Hz sawtooths-square signal
TONE 19
600 us 500000 us
Specific tone 2850Hz - 2400Hz square signal (ISO8201)
TONE 20
250000 us 250000 us
Specific tone 1200Hz - 500Hz square signal
TONE 21
500000 us 500000 us
Tone Type Tone Description
Specific tone 1200Hz - 500Hz square signal
TONE 21
500000 us 500000 us
Specific tone 800Hz ~ 970Hz square signal
TONE 22
500000 us 500000 us
Specific tone 628Hz - 925Hz square signal
TONE 23
250000 us 250000 us
Specific tone 554Hz - 440 square signal
TONE 24
100000 us 400000 us
Specific tone 670Hz - 845Hz square signal
TONE 25
250000 us 350000 us
Specific tone 440Hz - 554Hz square signal (French)
TONE 26
100000 us 400000 us
Specific tone 2850Hz - 0 square signal
TONE 27
500000 us 500000 us
Specific tone 970Hz - 0 square signal (ISO8201)
TONE 28
250000 us 250000 us
Specific tone 925Hz - 0 square signal
TONE 29
150000 us 600000 us
Specific tone 925Hz - 0 square signal
TONE 30
250000 us 1000000 us
Specific tone 800Hz - 0 square signal (ISO8201)
TONE 31
250000 us 1000000 us
Specific tone 660Hz - 0 square signal (Swedish)
TONE 32
150000 us 150000 us
Specific tone 660Hz - 0 square signal
TONE 33
6500000 us 13000000 us
Specific tone 554Hz - 0 square signal
TONE 34
100000 us 400000 us
Specific tone 400Hz
TONE 35
signal
Specific tone 628HZ
TONE 36
continuous signal
Specific tone 660HZ
TONE 37
continuous signal
Specific tone 750HZ
TONE 38
continuous signal
Specific tone 925HZ
TONE 39
continuous signal
Specific tone 970HZ
TONE 40
continuous signal
Specific tone 2400HZ
TONE 41
signal
Specific tone 2850HZ
TONE 42
signal
continuous
continuous
