64 Kbyte Flash memory, 2Kbyte EEPROM, 12-bit ADC,

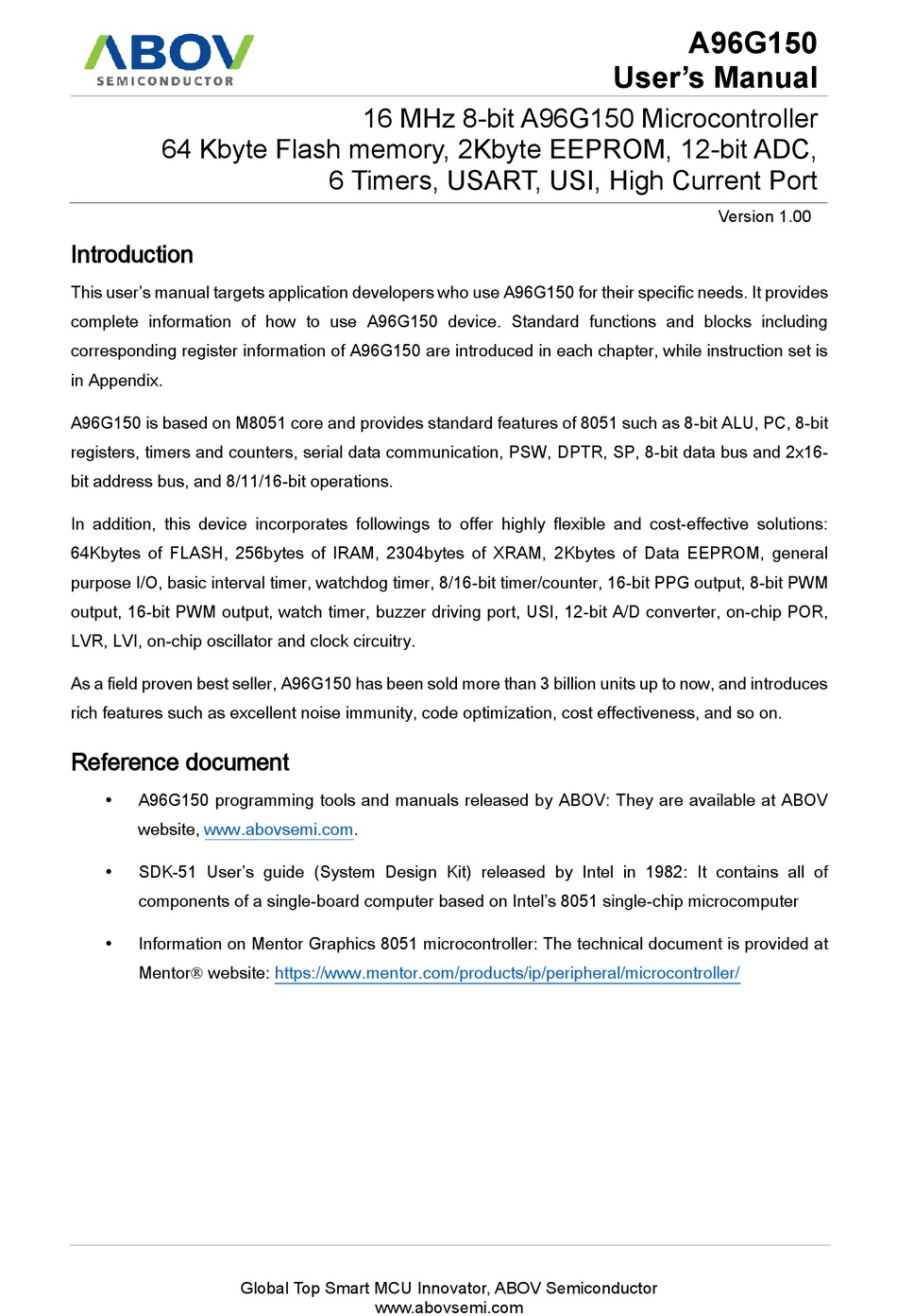

Introduction

This user's manual targets application developers who use A96G150 for their specific needs. It provides
complete information of how to use A96G150 device. Standard functions and blocks including
corresponding register information of A96G150 are introduced in each chapter, while instruction set is
in Appendix.
A96G150 is based on M8051 core and provides standard features of 8051 such as 8-bit ALU, PC, 8-bit
registers, timers and counters, serial data communication, PSW, DPTR, SP, 8-bit data bus and 2x16-
bit address bus, and 8/11/16-bit operations.
In addition, this device incorporates followings to offer highly flexible and cost-effective solutions:
64Kbytes of FLASH, 256bytes of IRAM, 2304bytes of XRAM, 2Kbytes of Data EEPROM, general
purpose I/O, basic interval timer, watchdog timer, 8/16-bit timer/counter, 16-bit PPG output, 8-bit PWM
output, 16-bit PWM output, watch timer, buzzer driving port, USI, 12-bit A/D converter, on-chip POR,
LVR, LVI, on-chip oscillator and clock circuitry.
As a field proven best seller, A96G150 has been sold more than 3 billion units up to now, and introduces
rich features such as excellent noise immunity, code optimization, cost effectiveness, and so on.

Reference document

A96G150 programming tools and manuals released by ABOV: They are available at ABOV
website, www.abovsemi.com.
SDK-51 User's guide (System Design Kit) released by Intel in 1982: It contains all of
components of a single-board computer based on Intel's 8051 single-chip microcomputer
Information on Mentor Graphics 8051 microcontroller: The technical document is provided at
Mentor website:
16 MHz 8-bit A96G150 Microcontroller
6 Timers, USART, USI, High Current Port
https://www.mentor.com/products/ip/peripheral/microcontroller/
Global Top Smart MCU Innovator, ABOV Semiconductor
www.abovsemi.com
A96G150
User's Manual
Version 1.00
