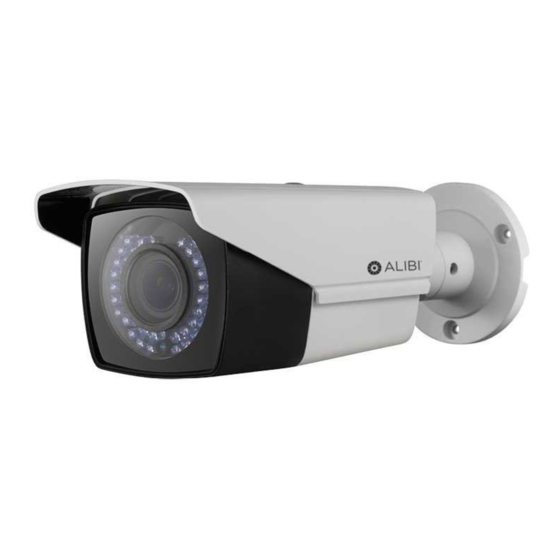

ALIBI ALI-TS4002R Quick Installation Manual

ALI-TS4002R 2 MP 4-in-1 HD 130 ft IR
Bullet Camera Quick Installation Guide
This indoor / outdoor security bullet camera includes the following features:
2 Megapixel (1920 x 1080 pixels) high-performance CMOS sensor
•
Switchable video output for TVI, AHD, CVI, or CVBS (4-in-1)
•
2.7 mm – 13.5 mm motorized varifocal lens with horizontal Field of View 108.1° to 45.6°
•
Low light 0.01 lux @ (F1.2, AGC ON) minimum illumination
•
130 ft Smart IR
•
OSD menu (up-the-coax OSD control),
•
IP66 Weather rated housing
•
Compatible with ALI-AJ1 junction box
•

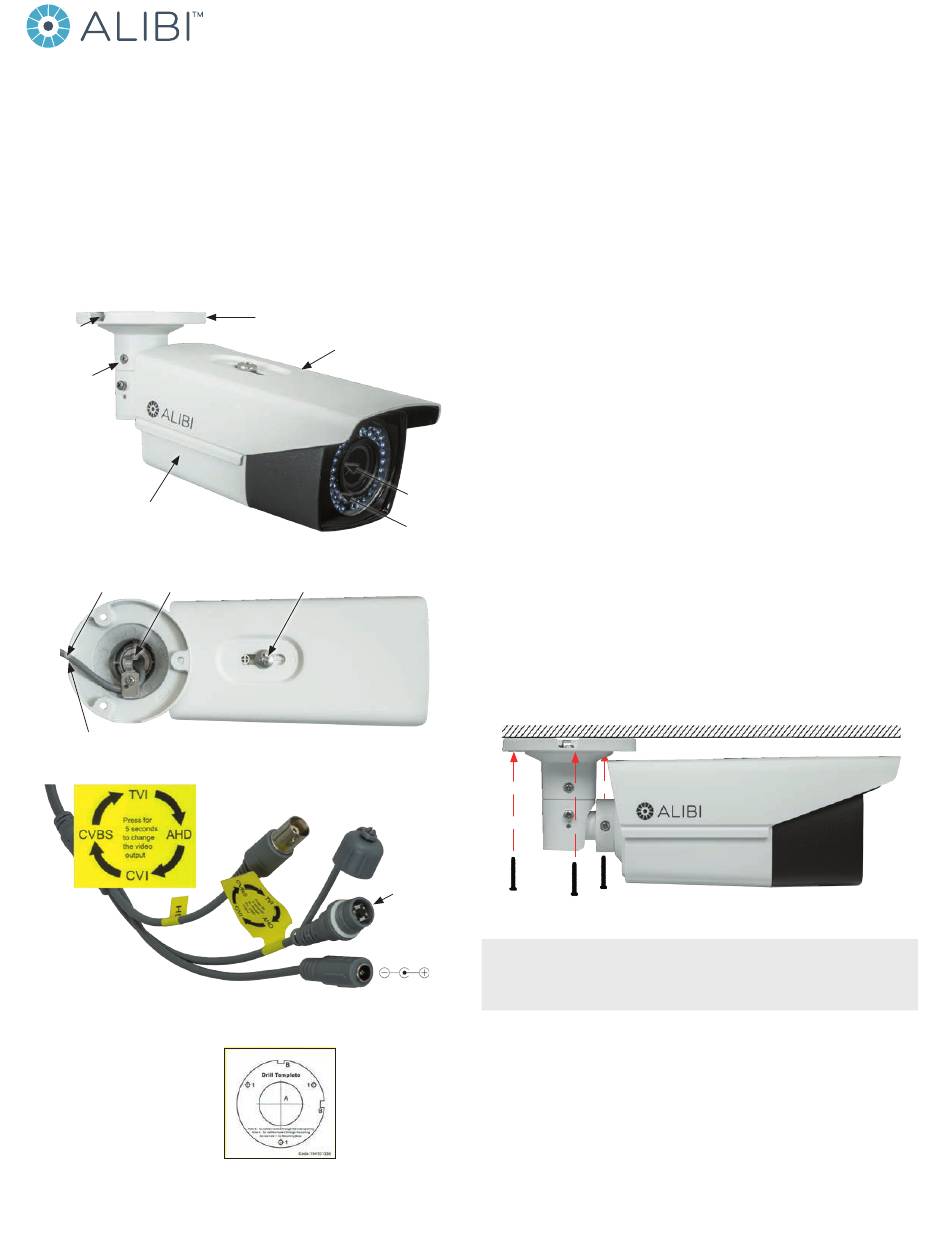

Cable
channel
Adjustable
mounting
bracket
Camera body
ALI-TS4002R camera
Camera drop cable Tab for safety cable loop
Cable channel
Camera top view with bracket up
* Press and hold switch button for 5 seconds to change the video format. See cable tag.
Camera Drop cables
What's in the box
Camera assembly
•
Mounting hardware
•
Drill template
•
This instruction guide
•
www.observint.com
1
Mounting base
Adjustable sun shield
Lens
LED array
Sun shield lock screw
HD video BNC connector
Cap for
switch
button
Switch*
button
12 Vdc power in

What you need

To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for requirements
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the
•
camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to a compatible recorder.
Switch button drop cable: Use the Switch button for selecting the video format you prefer to
—
use. You can select either TVI, AHC, CVI or CVBS. The format you select must be compatible with
your video recorder.
Power connector: The camera is powered by 12 Vdc (see Specification section for
—
requirements. When applying 12 Vdc power, observe the power polarity shown on the
connector.

Mounting the camera

An ALI-TS4002R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video / power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
Mounting the camera directly to a wall or ceiling
•
Typical ceiling mounting
If mounting the camera on a wall, ensure that the mounting bracket "UP" label is positioned at
the top.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
a. Using the drill template provided, mark the location of the screws that anchor the mounting
base to the mounting surface. See the note above. If you are routing the drop cable through
mounting surface, also mark the position of the hole for the drop cable.
b. Drill holes for the screws that anchor the base to the mounting surface. The mounting
hardware provided is appropriate for most surfaces. However, depending on the surface
materials, more appropriate fasteners may be required.
c. If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the
drill template.
section.
Cleaning
ALI-TS4002R_CQ
191007
