ALI-TS4115R 5MP HD-TVI 135 ft IR
Varifocal Outdoor Bullet Camera
Quick Installation Guide
The ALIBI ALI-TS4115R indoor/outdoor HD-TVI bullet cameras include a high sensitivity sensor with the
ability to send HD video across standard coaxial cable.
Features
5 MP Megapixel High Performance CMOS
Smart IR with 135 foot range
Motorized 2.7 ~ 13.5 mm VF lens
OSD menu (up-the-coax OSD control)
3D-DNR and D-WDR
IP67 Weather rated housing
Compatible with a 5 MP HD-TVI recorder (HD-TVI DVR)
Can be installed with optional ALI-AJ1 junction box
Adjustable sun shield
Lens
Photosensor

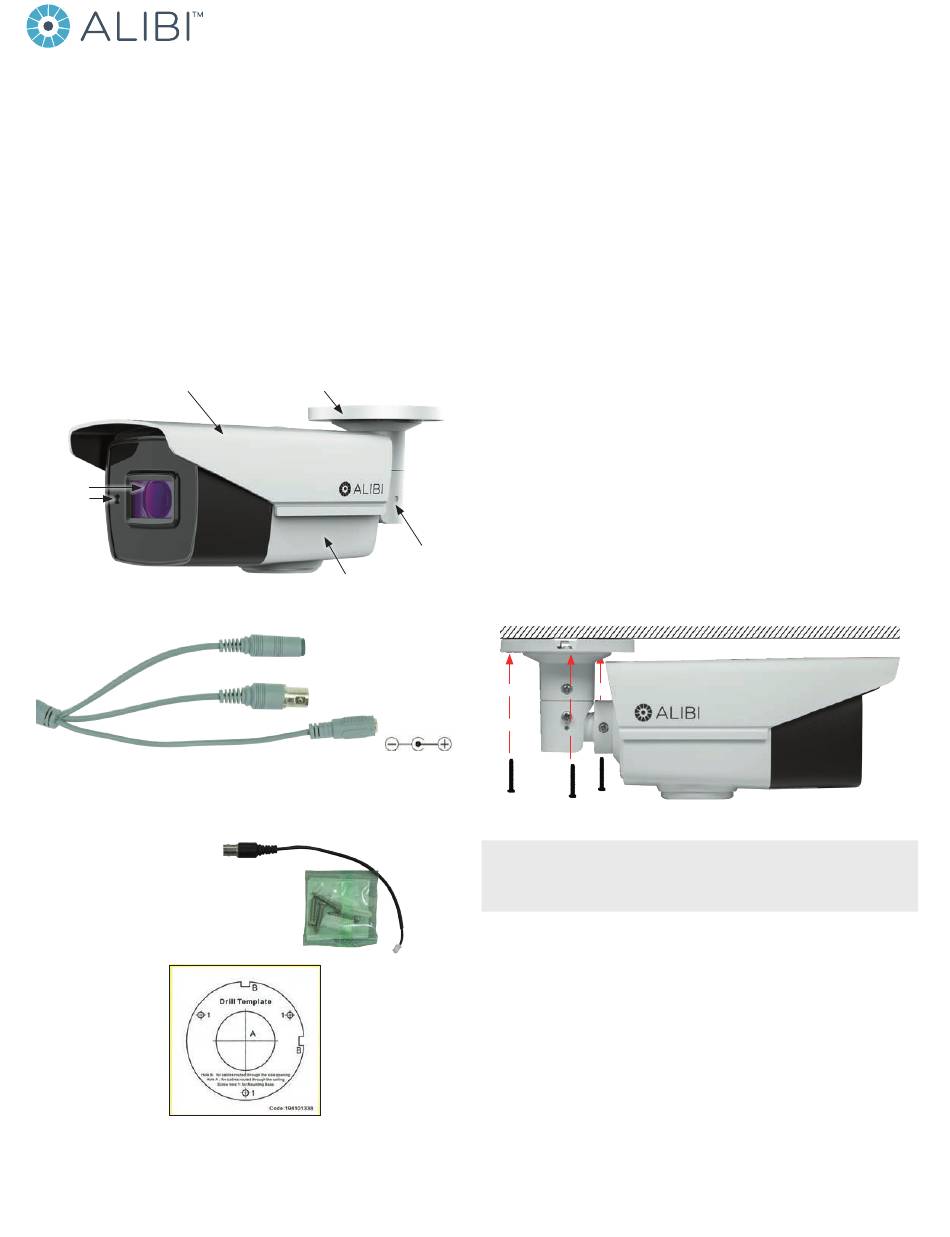

ALI-TS4115R camera
Camera drop cable connectors
* Button switch reserved for future use.
What's in the box
Camera assembly
Mounting hardware
Video test adapter cable
Drill template
This instruction guide
What you need
To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for requirements
www.observint.com
1
Mounting base
Adjustable
mounting
bracket
Camera body
Button switch*
HD-TVI video
BNC connector
Power
Connector
Tools and additional fasteners (may be required) for mounting the camera
Phillips #2 screwdriver
Video and power extension cable
HD-TVI video setup monitor (optional)

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Button Switch: Reserved for future use.
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
cable to an HD-TVI compatible recorder.
Power connector: When applying power, observe the power polarity. See the picture to the
left for the connector polarity configuration.

Mounting the camera

An ALI-TS4115R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video/power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
Mounting the camera directly to a wall or ceiling
Typical ceiling mounting
If mounting the camera on a wall, ensure that the mounting bracket "UP" label is positioned at
the top.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
1.
Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2.
Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3.
If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
4.
Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
5.
Connect the camera drop cable to video and power extension cables as required. If using 12 Vdc
power, observe the polarity embossed on the power connector. See the photo above.
6.
Connect the other end of the video extension cable to an HD-TVI DVR.
section.
ALI-TS4115R_CQ
190904
