ALIBI ALI-TS4012R Quick Installation Manual

ALI-TS4012R 2MP HD-TVI 130' IR
Outdoor Bullet Camera
Quick Installation Guide
The ALIBI ALI-TS4012R indoor/outdoor HD-TVI bullet cameras include a high sensitivity sensor with the
ability to send HD video across standard coaxial cable. This camera features:
2 MP Megapixel High Performance CMOS
•
130' Smart Full Frame IR
•
Motorized 2.8 ~ 12 mm VF lens
•
WDR Wide Dynamic Range 120 dB
•
Up the Coax (UTC) technology for OSD control
•
−40° to 140°F temperature range
•
12 Vdc or 24 Vac powering
•
IP66 Weather rated housing
•
Must be used with a compatible Alibi HD-TVI recorder (HD-TVI DVR)
•
Can be installed with optional ALI-AJ1 junction box
•
Mounting base "UP" label
Adjustable mounting Camera body
bracket

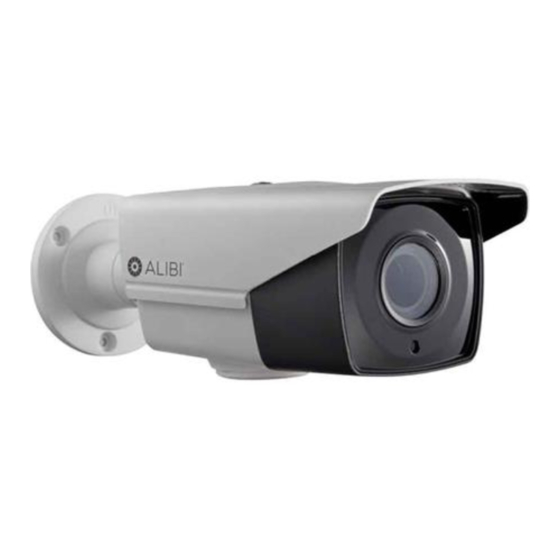

ALI-TS4012R camera
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Video test adapter cable
•
Drill template
•
This instruction guide
•
www.observint.com
1
Adjustable sun shield
Lens
Photosensor
Maintenance access
cover
HD-TVI video
BNC connector
Power
Connector
What you need
To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•
HD-TVI or CVBS video setup monitor (optional)
•
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to an HD-TVI compatible recorder.
Power connector: The camera can be powered with 24 Vac or 12 Vdc voltage. When applying
—
12 Vdc voltage, observe the polarity (+ / −) shown in the drop cable power connector picture
to the left.
Mounting the camera
An ALI-TS4012R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video/power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
Mounting the camera directly to a wall or ceiling
•
Typical ceiling mounting
If mounting the camera on a wall, ensure that the mounting bracket "UP" label is positioned at
the top.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
1. Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
4. Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
section.
Cleaning
ALI-TS4012R_CQ
170718
