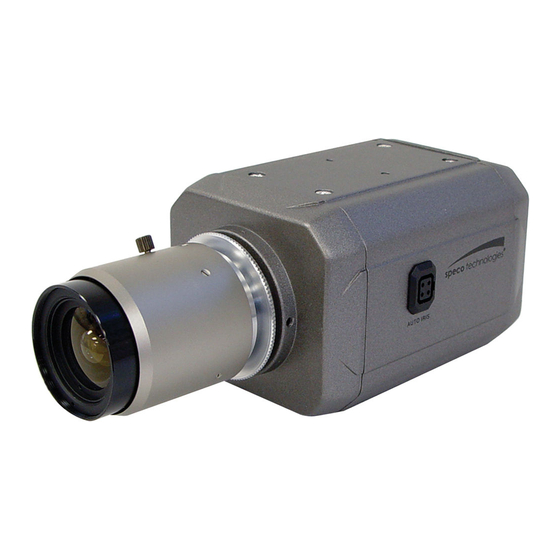

- Page 1 Intensifier Series Camera HT-INTT5 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Please read this manual thoroughly before operation and keep it handy for further reference.
-
Page 3: Table Of Contents
Contents Features Precautions Operating Your Camera * SET UP----------------------------------------------------------------9~11 * SET UP LENS-----------------------------------------------------------12 * SHUTTER SPEED CONTROL ---------------------------------13~16 * BACK LIGHT-------------------------------------------------------------17 * AUTO GAIN (AGC) ----------------------------------------------------18 * WHITE BALANCE -------------------------------------------------19~20 * REDUCE NOISE--------------------------------------------------------21 * INTENSIFIER------------------------------------------------------------22 * CAMERA TITLE-----------------------------------------------------23~24 * DAY/NIGHT/SYNC ----- -------------------------------------------25~26 * MOTION DETECTION---------------------------------------------27~28 * PRIVACY------------------------------------------------------------------29 * REVERSE-----------------------------------------------------------------30... -
Page 4: Reduce Noise
Features ♣ SLC ( Speco Light Compensation ) When the image is in front of strong background lighting, your camera allows you to get the best image. ♣ INTENSIFIER 1/3 inch density CCD and digital processor permit high quality pictures to be captured in very low light conditions. - Page 5 Precautions * Do not install the camera in extreme temperature conditions. - Only use the camera under conditions where temperatures are between -10℃ and +50℃. Be especially careful to provide ventilation when operating under high temperatures. * Do not install or use the camera in an environment where the humidity is high.
-
Page 6: Operating Your Camera
Operating your camera ◈OSD Menu Setting ◈Functions SET UP MENU LENS OPTION When you control by Buttons on the Product, refer to the following ●DC ●MANUAL (OPTION) SHUTTER ●OFF ●F/L ●MANUAL WHITE BALANCE ●AWC MANUAL● ●ATW LEFT RIGHT BACKLIGHT ●OFF ●LOW ●MIDDLE ●HIGH LEFT SET DOWN... - Page 7 Operating your camera ( Option ) 1. When controlled by RS-485, Pelco-D protocol (Option), refer to the following. A. DIP Switch Setting on the Camera (Factory default : Camera Address = 01, Baud Rate = 2400bps) ① ② •Up to 15 Cameras can be controlled by 1 IR Remote Controller &...
- Page 8 Operating your camera SET UP 1. Press the SET button to access the SETUP mode. ●SETUP menu is displayed on the monitor screen. 2. Select the desired feature using the UP or DOWN button. ●Each time you press the UP or DOWN button, the arrow indicator moves up or down.
- Page 9 Operating your camera – SHUTTER SPEED CONTROL① ▶When DC LENS selected, press SET button to control the BRIGHTNESS. Notes ●AUOT IRIS LENS(DC TYPE) is recommended 2) Shutter status and speed control You can control brightness of the screen by the shutter speed. ①...
-
Page 10: Shutter Speed Control
Operating your camera – SHUTTER SPEED CONTROL ② ▶MANUAL : When setting shutter speed manually. ▶ELC : You can control the BRIGHTNESS. You can select speed from ‘1/60’ to ‘1/200,000’sec ③ When completed, press ‘SET’ Notes ●Avoid pointing the camera directly at a fluorescent lamp. ●When the SHUTTER menu is set to FLK mode, the INTENSIFIER will not work. -
Page 11: Backlight
Operating your camera - BACKLIGHT 3) SLC (Speco Light Compensation) - BACKLIGHT A built-in SR chip provides intelligent light level control to overcome severe Backlight conditions. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘SLC’ using the UP or DOWN button. ②... -
Page 12: White Balance
Operating your camera - 5) WHITE BALANCE ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘WHITE BALANCE’ using the UP or DOWN button. ② Set ‘WHITE BAL.’ to the desired mode using LEFT or RIGHT button. ▶ATW (Auto Tracking White Balance) : When color temperature is 2400~12000K, select this mode. -
Page 13: Reduce Noise
Operating your camera - 6) REDUCE NOISE (Dynamic Noise Reduction) DNR reduces the video noise on the screen. ① Press the SET button to display the SETUP menu and move the arrow to ‘REDUCE NOISE’ using the UP or DOWN button. ②... -
Page 14: Camera Title
Operating your camera - CAMERA TITLE① 8) NEXT PAGE ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘NEXT PAGE’ using the UP or DOWN button. ② SET ‘NEXT PAGE’ to the desired mode using the LEFT or RIGHT button. - Page 15 Operating your camera – COLOR/SYNC (2) COLOR : You can choose color and B/W mode electronically. ① Press the SET button to display the setup menu and move the arrow indicator to ‘COLOR’ using the UP and DOWN button. ② SET ‘COLOR’ to the desired mode using the LEFT or RIGHT button. ▶COLOR : The camera will always display a color picture ▶AUTO : The camera will switch into the B/W mode under low light conditions.
-
Page 16: Motion Detection
Operating your camera – MOTION DETECTION (4) Whenever your camera detects motion, THE WORDS “motion detected’ will appear on the screen. ① Press the SET button to display the setup menu and move the arrow indicator to ‘MOTION’ using the UP and DOWN button. ②... -
Page 17: Privacy
Operating your camera - PRIVACY (5) PRIVACY : To mask area which you want to be private. ① Press the SET button to display the setup menu and move the arrow to ‘PRIVACY’ using the UP and DOWN button. ② SET ‘PRIVACY’ to the desired mode using the LEFT or RIGHT button. ▶OFF : Deactivation ▶ON : PRIVACY mode activated -Press the SET button. -
Page 18: Detail
Operating your camera - SHARPNESS (7) DETAIL ① Press the SET button to display the setup menu and move the arrow indicator to ‘DETAIL’ using the UP and DOWN button. ② SET ‘DETAIL’ to the desired mode using the LEFT or RIGHT button. ▶OFF : Deactivation ▶ON : DETAIL control mode (level 0~31) When the level is up, the sharpness will increase. -
Page 19: Troubleshooting
Troubleshooting If you have trouble operating your camera, refer to the following. Problem Solution Nothing appears on ●Check that the power cord and line are properly connected. the screen. ●Check that you have properly connected the VIDEO cable the camera VIDEO output jack. The image on the ●Is lens stained with dirt? Clean your lens with soft, screen is dim. -
Page 20: Specifications Dimensions
SPECIFICATIONS ITEM HT-INTT5 Power Source DC 12V & AC 24v ( Dual Voltage ) Power Consumption 280mA(DC) / 3.8W(AC) I mage Sensor 1/3”, SONY SUPER HAD CCD, Total Pixels 811(H) x 608(V) , 1/3” CCD Effective Pixels 768(H) x 494(V) , 1/3” CCD LENS Type C &... -
Page 21: Warranty
WARRANTY...
