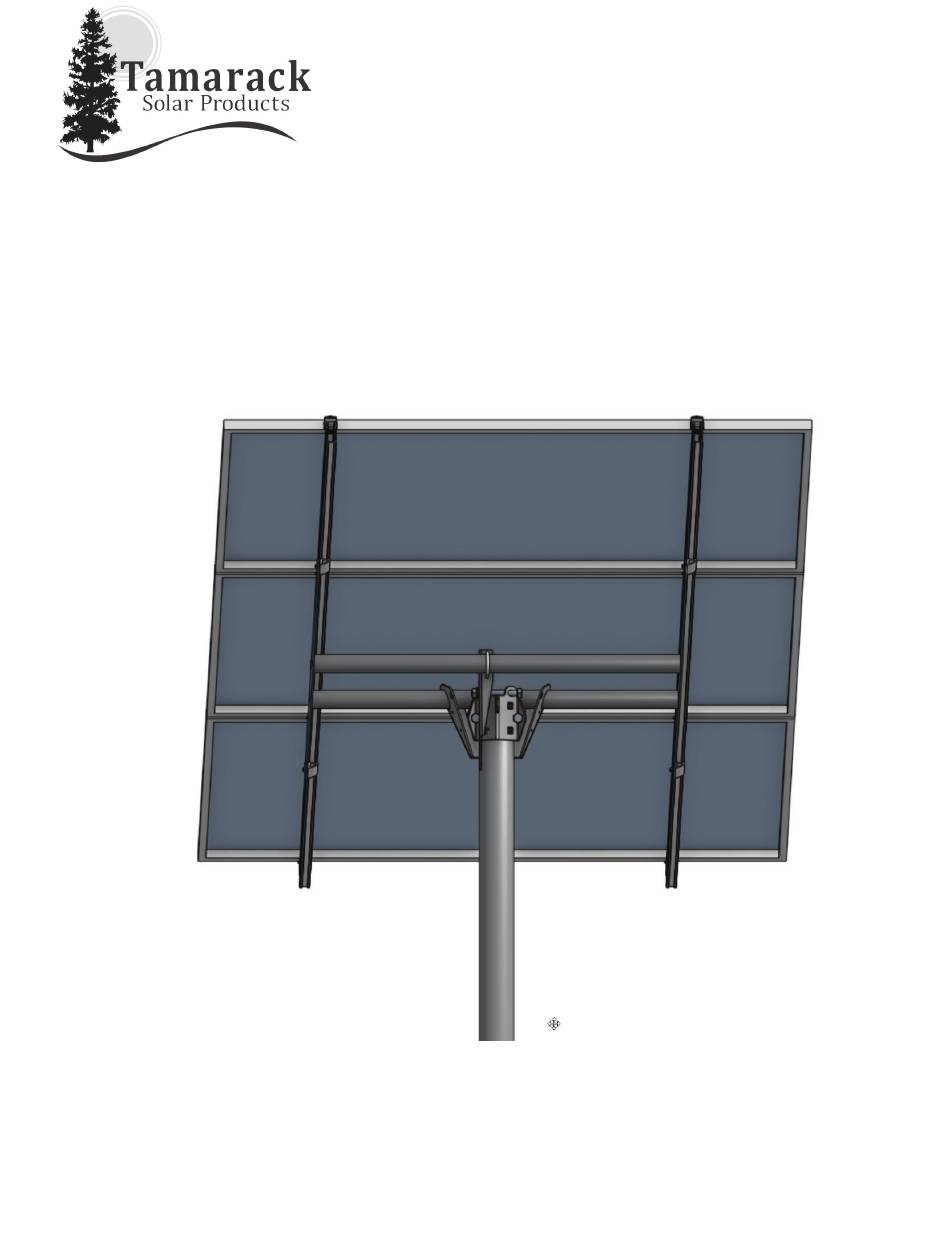

- Page 1 Pole Mount - TTP Series Installation Manual For Models TTP-2, TTP-3 TTP-23-MAN 2022 Edition v1.1 90286 TTP-2 2 Module Top of Pole Mount 90293 TTP-3 3 Module Top of Pole Mount TTP-23-MAN...
-
Page 2: Installer Responsibilities
Pole Mount - TTP Series Disclaimer This manual describes proper installation procedures and provides necessary standards required for product reliability. Warranty details are available on our website. www.tamaracksolar.com All installers must thoroughly read this manual and have a clear understanding of the installation procedures prior to installation. - Page 3 Pole Mount - TTP Series TTP-2 and TTP-3 Pole Mount Components Part # Part Description TTP 2 TTP 3 Box # 53 1001 Pole Cap, Pivot 4 inch pipe, 2 inch holes 53 1002 Pole Cap Backplate 53 1013 Tilt Adjuster Arm...
- Page 4 Pole Mount - TTP Series Foundation Hole and Pole Guidelines • Th e suggestions below are recommendations only. It is the installer’s responsibility to validate foundation parameters prior to installation, a local geotechnical report may be required to assess soil conditions. We...
- Page 5 Pole Mount - TTP Series TTP 2 For Array Ground Clearance of 3 Feet Foundation Hole Depth, Height of Pole Above Ground and Total Pole Length for Ground Clearance of 3 Feet at Lowest Part of the Array & Exposure Catgory B For Various Soil Class and Foundation Hole Diameter. Vertical Pipe is 4-inch Schedule 40.
- Page 6 Pole Mount - TTP Series TTP 3 For Array Ground Clearance of 3 Feet Foundation Hole Depth, Height of Pole Above Ground and Total Pole Length for Ground Clearance of 3 Feet at Lowest Part of the Array & Exposure Catgory B For Various Soil Class and Foundation Hole Diameter. Vertical Pipe is 4-inch Schedule 40.
- Page 7 Pole Mount - TTP Series Step One - Pole Cap Assembly • Place the Pole Cover on top of the mounting pole. • Install the 3/4 x 6-inch Cap Support Bolt through the two top holes in the rear half of the cap and install nut and tighten fi rmly.
- Page 8 Pole Mount - TTP Series Step Three - Assemble Adjuster Arm • Install the Adjuster Arm as shown in the image below. Attach it to the Support Pipe that does not go through the holes in the Pole Cap with a 2-3/8-inch U-bolt and two fl ange nuts. Tighten hand tight to allow it to be alligned with the tab on the Pole Cap Backplate.
-
Page 9: System Grounding
Pole Mount - TTP Series Step Five - Rail Mount Attachment • Attach a Rail Mount to each of the 4 end holes on the Rail Support Blades. If the length of the solar module being used is less than 70-inches, place the Rail Mounts on the inside of the Rail Support Blades. -
Page 10: Final Assembly
Pole Mount - TTP Series Mount Solar Modules on Rails • To center the modules on the rails, calculate the amount of excess Module Mounting Rail length: 1) Add the width of the modules plus 1/2-inch space between modules. 2) For TTP-2: subtract the above calculated number from 85-inches.
