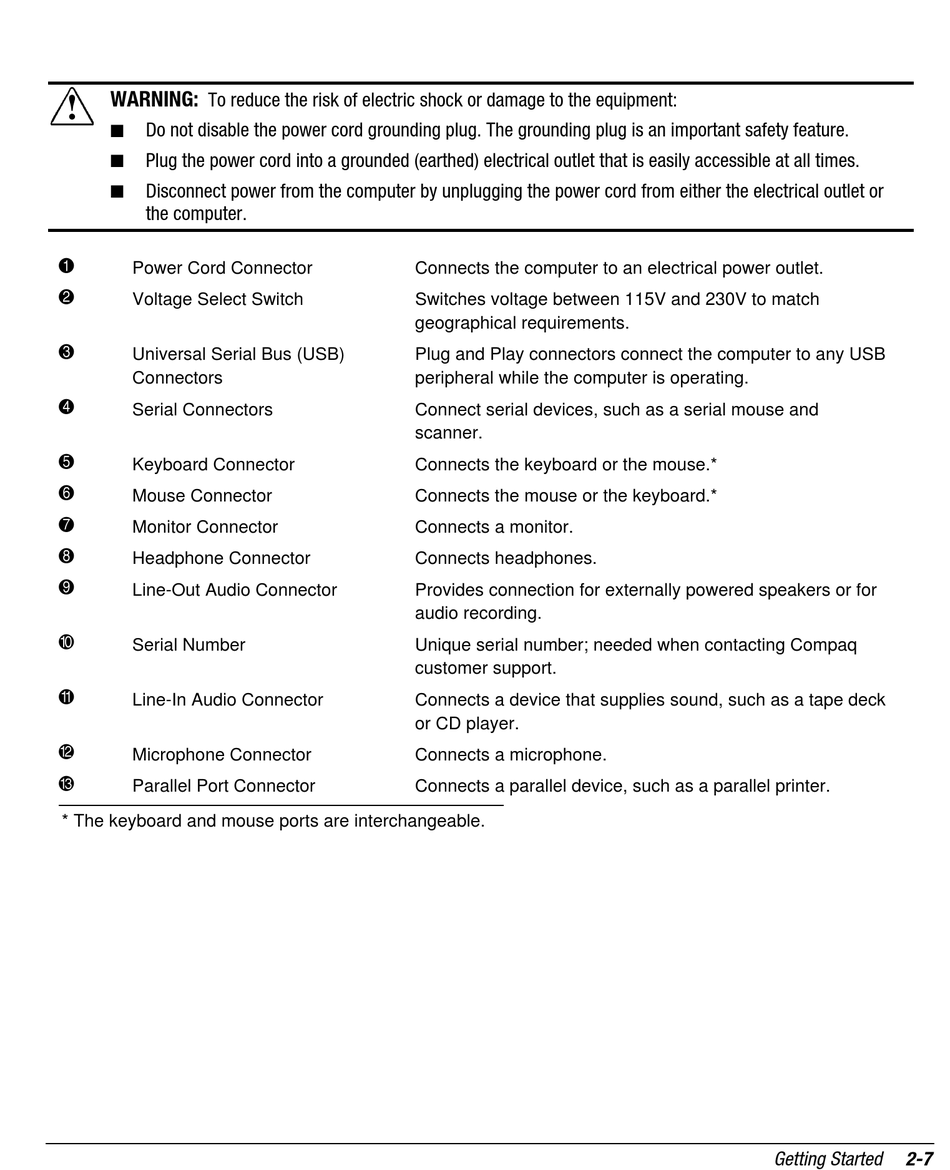

HP Deskpro EN DT 6500 Plus Getting Started page 16

WARNING:
To reduce the risk of electric shock or damage to the equipment:
!
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
Disconnect power from the computer by unplugging the power cord from either the electrical outlet or
the computer.
1
Power Cord Connector
2
Voltage Select Switch
3
Universal Serial Bus (USB)
Connectors
4
Serial Connectors
5
Keyboard Connector
6
Mouse Connector
7
Monitor Connector
8
Headphone Connector
9
Line-Out Audio Connector
:
Serial Number
;
Line-In Audio Connector
<
Microphone Connector
=
Parallel Port Connector
* The keyboard and mouse ports are interchangeable.
Connects the computer to an electrical power outlet.
Switches voltage between 115V and 230V to match
geographical requirements.
Plug and Play connectors connect the computer to any USB
peripheral while the computer is operating.
Connect serial devices, such as a serial mouse and
scanner.
Connects the keyboard or the mouse.*
Connects the mouse or the keyboard.*
Connects a monitor.
Connects headphones.
Provides connection for externally powered speakers or for
audio recording.
Unique serial number; needed when contacting Compaq
customer support.
Connects a device that supplies sound, such as a tape deck
or CD player.
Connects a microphone.
Connects a parallel device, such as a parallel printer.
Getting Started 2-7
