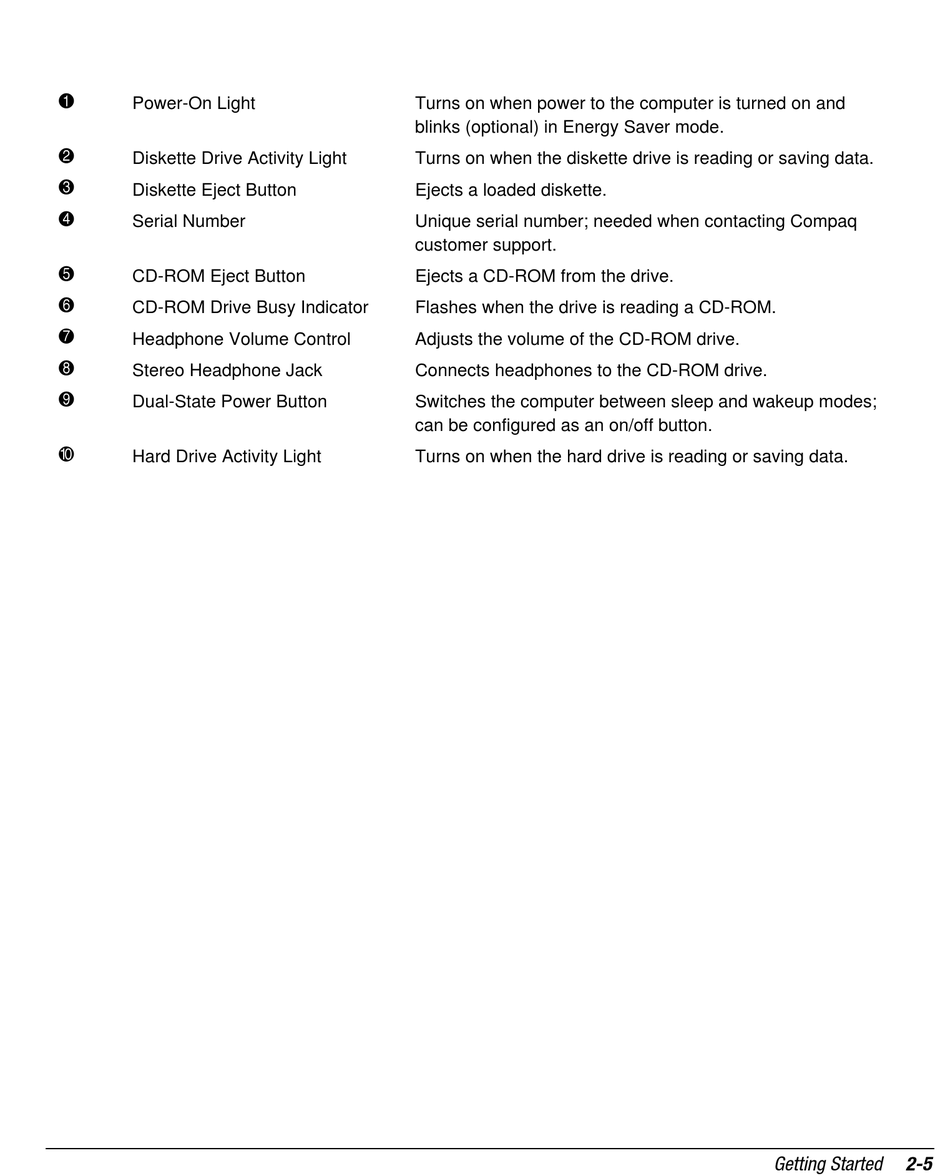

HP Deskpro EN DT 6500 Plus Getting Started page 14

1
Power-On Light
2
Diskette Drive Activity Light
3
Diskette Eject Button
4
Serial Number
5
CD-ROM Eject Button
6
CD-ROM Drive Busy Indicator
7
Headphone Volume Control
8
Stereo Headphone Jack
9
Dual-State Power Button
:
Hard Drive Activity Light
Turns on when power to the computer is turned on and
blinks (optional) in Energy Saver mode.
Turns on when the diskette drive is reading or saving data.
Ejects a loaded diskette.
Unique serial number; needed when contacting Compaq
customer support.
Ejects a CD-ROM from the drive.
Flashes when the drive is reading a CD-ROM.
Adjusts the volume of the CD-ROM drive.
Connects headphones to the CD-ROM drive.
Switches the computer between sleep and wakeup modes;
can be configured as an on/off button.
Turns on when the hard drive is reading or saving data.
Getting Started 2-5
