HP MT EU Business PC Illustrated Parts & Service Map

Illustrated Parts & Service Map

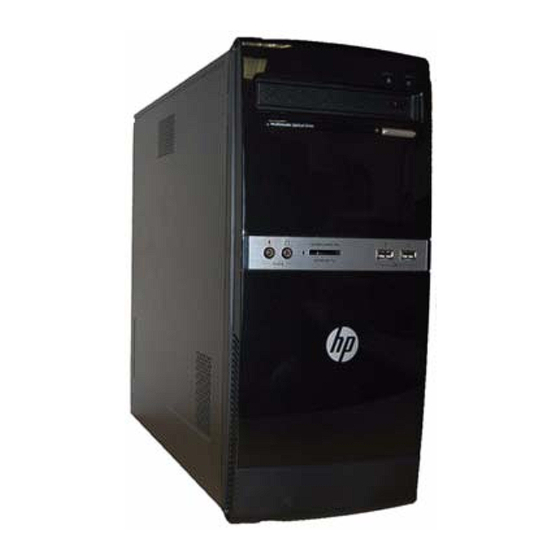

HP 500B MT EU Business PC
©
2010 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 630795-001.
Key Specifications
Processor Type Intel Celeron, Intel Pentium dual-core
RAM Type DDR3-SDRAM DIMMs, PC3-10600 (1333 MHz)
Maximum RAM Supported 4 GB (2 x 2 GB)
Expansion Slots •
•
•
Graphics Adapter Intel Graphics Media Accelerator X4500
Chipset Intel G41 Express
Drive Support •
•
I/O Interfaces (8) USB 2.0 ports: (2) front ports, (4) rear ports, (2) internal
ports on motherboard; (1) RJ-45, (1) VGA, (1) front audio in,
(1) front audio out, (1) rear audio in, (1) rear audio out, (1) rear
microphone
Operating Systems •
•
•
•
•

Spare Parts

System Unit
1 Chassis
2 Front bezel with card reader slot
3 Access panel
* Thumbscrew for use on access panel
4 Power supply, 300W, PFC
* 5.25-inch bezel blank
* Not shown
HP 500B MT EU
1st Edition July 2010.
1 full-height PCI 2.3 slot
2 full-height PCIe x1 slots
1 full-height PCIe x16
(1) 5.25-inch external optical drive bay
(1) 3.5-inch internal hard disk drive bay
Windows 7
Windows Vista
Windows XP
FreeDOS
Novell SLED 11
Cables
1 Front I/O assembly with card reader
2 Power switch/LED cable assembly
3 SATA HDD cable, 6.5 inch, with latch
* PATA to SATA adapter
*Not shown
Keyboards (not illustrated)
USB, blue
BHCSY
Bulgarian
Czech
Dutch
Finnish
French
German
Greek
Hebrew
Hungarian
International English
Italian
Mass Storage Devices (not illustrated)
16X DVD±RW SuperMulti drive with LightScribe
640 GB hard drive
500 GB hard drive
320 GB hard drive
160 GB hard drive
Miscellaneous Parts
1 Heat sink, Intel class F plus (includes thermal material)
2 Chassis fan
* Mouse, optical, carbon
*Not shown
Not spared
616793-001
616791-001
448665-001
592502-001
586749-001
630795-001
537924-xxx
-B41 Norwegian
-261 Polish
-221 Portuguese
-331 Romanian
-351 Russian
-051 Saudi Arabia
-041 Slovakian
-151 Spanish
-BB1 Swedish
-211 Swiss
-L31 Turkish
-061 U.K.
586728-001
586724-001
448670-001
449283-001
-091
-241
-131
-271
-251
-171
-231
-071
-101
-111
-141
-031
581059-001
613204-001
586720-001
586969-001
586718-001
616605-001
449207-001
444740-001
