QuickSpecs

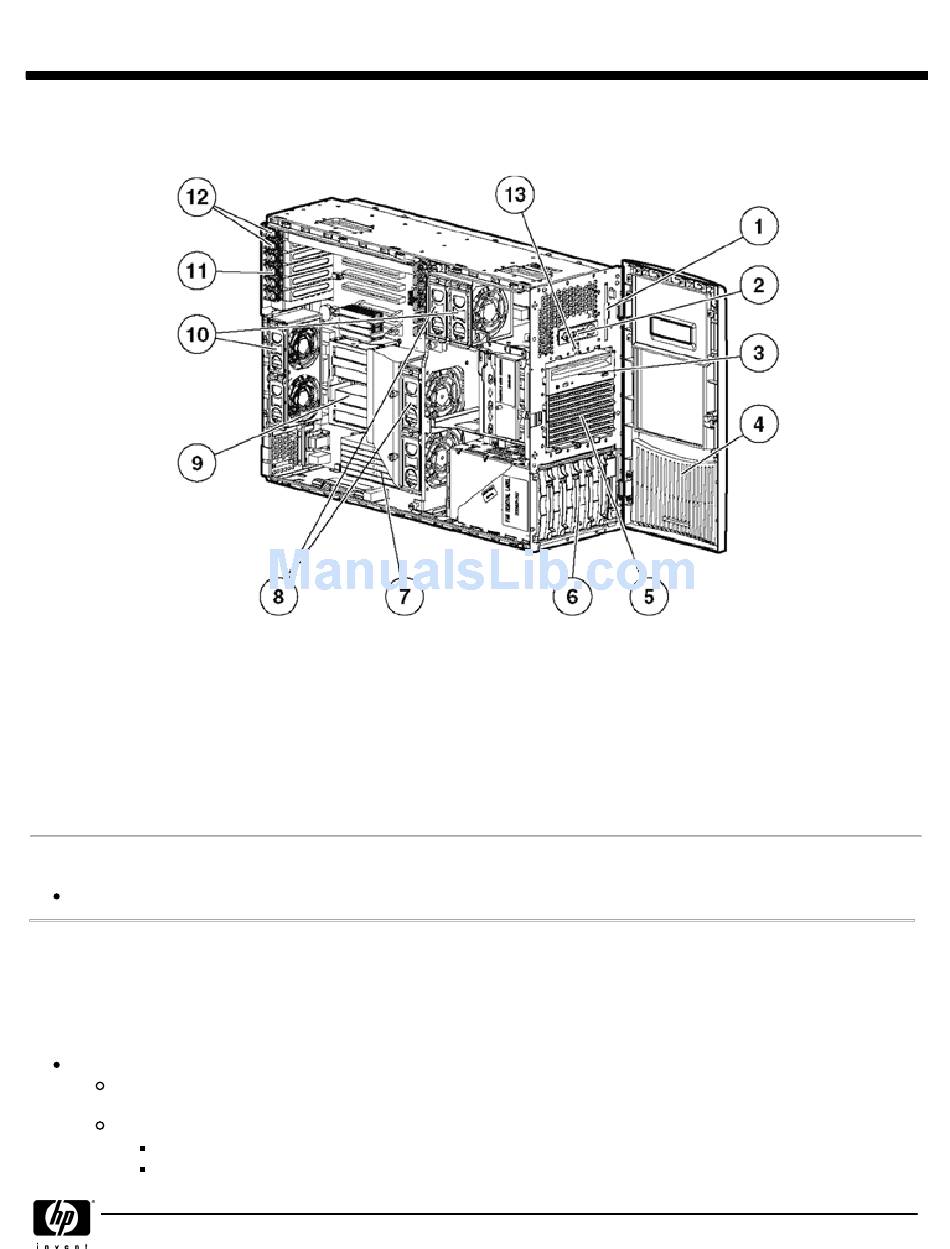

Overview

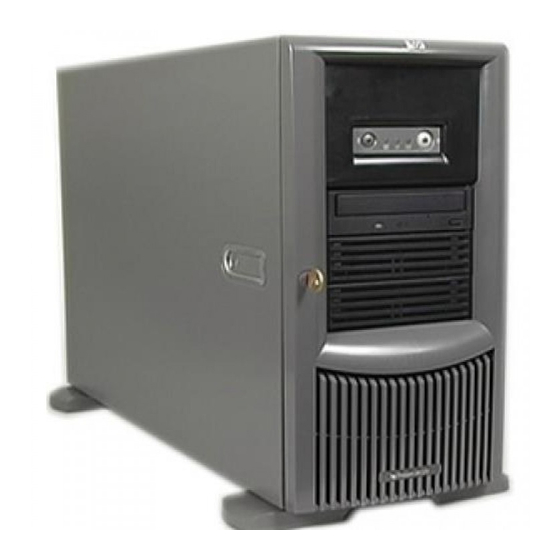

1. 1.44 MB Diskette Drive
2. Front Panel LEDs (show server status)
3. 48X MAX CD-ROM
4. Front Bezel
5. Removable Media Bays
6. Six Hot Plug Ultra320 Drive Bays
7. 8 PC2-3200R Memory Slots
What's New
What's New
What's New
What's New
Dual-core 2.8GHz Intel Xeon processors with 2x2MB Level 2 cache (4MB total) are available on Factory Integrated models.
At A Glance
At A Glance
At A Glance
At A Glance
The flagship ML370 G4 provides industry-leading management, performance and availability in a dual processor expansion server
engineered to excel in a variety of environments - from corporate work groups in growing businesses to critical remote sites requiring
continuous accessibility and uptime.
Processors:
Processors:
Processors:
Processors:
Systems support up to two Intel Xeon Processors with Hyperthreading Technology (2 processors standard on all High
Performance models)
Single-core and Dual-core Intel Xeon Processors with 2MB Level 2 cache offer blazing performance increases
Dual-core: 2.8 GHz with 2x2MB L2 (4MB total)
Single-core: 3.8 GHz, 3.6 GHz, 3.4 GHz, 3.2 GHz, 3.0 GHz and 2.8 GHz
Ultra320 SCSI model shown above
Ultra320 SCSI model shown above
Ultra320 SCSI model shown above
Ultra320 SCSI model shown above
DA - 12029
Worldwide — Version 38 — November 27, 2006
HP ProLiant ML370 Generation 4 (G4)
HP ProLiant ML370 Generation 4 (G4)
HP ProLiant ML370 Generation 4 (G4)
HP ProLiant ML370 Generation 4 (G4)
8. Hot Plug Fans (standard)
9. Intel Xeon Processors
10. Hot Plug Redundant Fans (Optional)
11. 2 PCI-Express Non-hot plug slots
12. 4 PCI-X 64-Bit/100-MHz Non-hot plug slots
13. USB 2.0 (on the front)Port
Page 1
