DUC-MF1

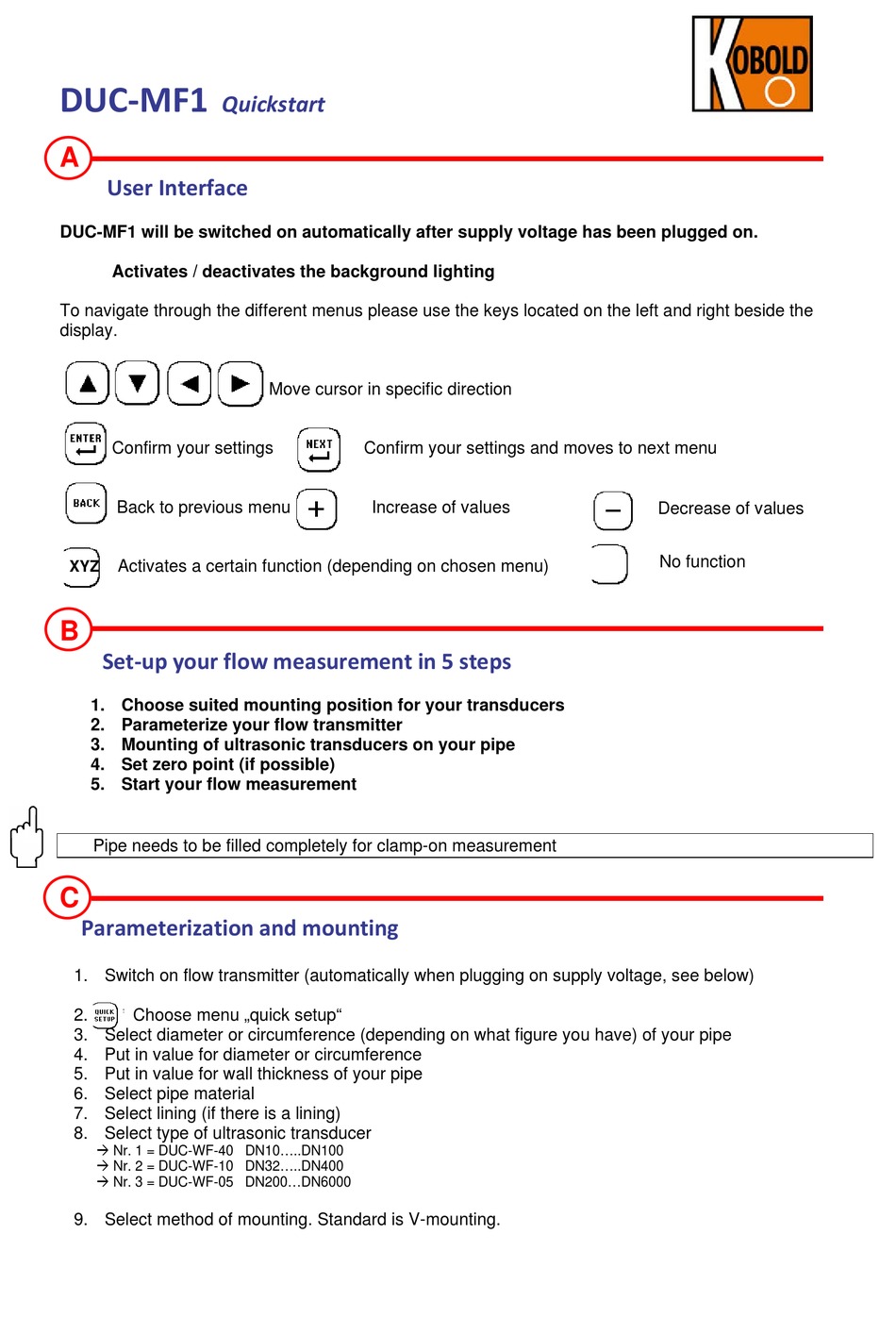

Quickstart
A

User Interface

DUC-MF1 will be switched on automatically after supply voltage has been plugged on.
Activates / deactivates the background lighting
To navigate through the different menus please use the keys located on the left and right beside the
display.
Confirm your settings
Back to previous menu
Activates a certain function (depending on chosen menu)
XYZ
B

Set-up your flow measurement in 5 steps

1. Choose suited mounting position for your transducers
2. Parameterize your flow transmitter
3. Mounting of ultrasonic transducers on your pipe
5. Start your flow measurement
Pipe needs to be filled completely for clamp-on measurement
C

Parameterization and mounting

1. Switch on flow transmitter (automatically when plugging on supply voltage, see below)
2.
Choose menu „quick setup"
3. Select diameter or circumference (depending on what figure you have) of your pipe
4. Put in value for diameter or circumference
5. Put in value for wall thickness of your pipe
6. Select pipe material
7. Select lining (if there is a lining)
8. Select type of ultrasonic transducer
 Nr. 1 = DUC-WF-40 DN10.....DN100
 Nr. 2 = DUC-WF-10 DN32.....DN400
 Nr. 3 = DUC-WF-05 DN200...DN6000
9. Select method of mounting. Standard is V-mounting.
Move cursor in specific direction
Confirm your settings and moves to next menu
Increase of values
Decrease of values
No function
