Summary of Contents for Kobold DAH

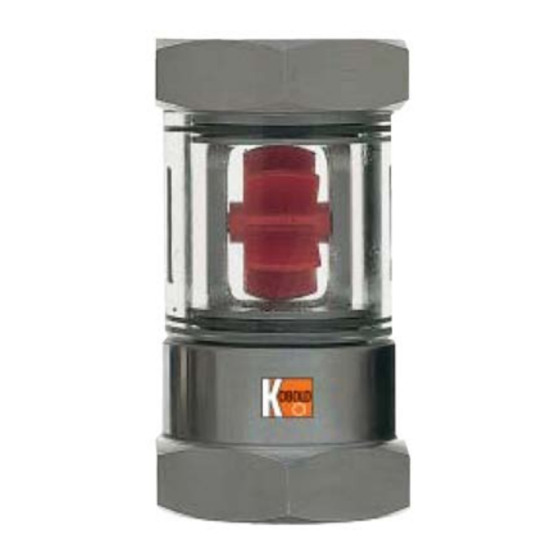

- Page 1 Operating Instructions Rotor Flow Indicator for Fluids Model: DAH...
-
Page 2: Table Of Contents
8. Technical Information ..................7 9. Order Codes ....................8 10. Dimensions ....................9 11. Disposal ...................... 10 12. EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
The user assumes all risk for such usage. 5. Operating Principle The Kobold Rotor Flow Indicators DAH can be installed in pipe work for fluids. These instruments have female thread on both sides and are available in brass or stainless steel. -
Page 5: Mechanical Connection
Be sure the maximum allowable working pressures or temperatures specified for the instrument are not exceeded. (see 9 Order Codes) 6.2 Installation Install the Rotor Flow Indicator DAH in the direction of flow (as per stamped arrow) Attention: Suddenly opening the inflow may cause pressure peaks exceeding the working pressure of the instrument;... -
Page 6: Maintenance
7.2 Replacing the measuring glass Attention! The upper and lower sections of the DAH Flow Indicator are attached with screw sealing lacquer. Be sure to remove the upper section from the lower section while warm only. -
Page 7: Technical Information
8. Technical Information Materials Housing: Brass nickel plated (DAH-x1..) St. st. 1.4305 (DAH-x2..) Inlet: Brass nickel plated (DAH-x1..) St. st. 1.4305 (DAH-x2..) Sight glass: Duran O-rings: NBR (DAH-x1..) FPM (DAH-x2..) Rotor: POM (DAH-x1..) Hostaflon (DAH-x2..) Rotor axle: St. st. 1.4305... -
Page 8: Order Codes
9. Order Codes Flow indicator with rotor Order details (Example: DAH-1101H R08) ∆p at Indication Connection Weight Model range thread L/min °C Brass w/rotor St.st. w/rotor water ¼“ 0.4 – 4 0.25 DAH-1101H.. DAH-1201H.. ⅜“ 0.6 – 8 0.25 0.28 DAH-1102H.. -
Page 9: Dimensions
Female length Total Spanner Size thread Thread length L size SW DIN 3852 DAH-...01H ¼ ¼“ DAH-...02H 3/8“ DAH-...03H ½ ½“ DAH-...04H ¾ ¾“ DAH-...05H 1“ DAH-...06H 1 1/4 1 ¼“ DAH-...07H 1 1/2 1 ½“ DAH K05/0722 page 9... -
Page 10: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 10 DAH K05/0722... -
Page 11: Eu Declaration Of Conformance
12. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Rotor Flow Indicator for Fluids Model: DAH-... to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical...
