Kobold DAG-M1V Series Operating Instructions Manual

Digital indicating units, standard signals 0/4-20 ma, 0-10 vdc, 48 x 24 mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
for
Digital Indicating Units
Standard signals 0/4-20 mA, 0-10 VDC
Model: DAG-M1V..., 48 x 24 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-M1V Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold DAG-M1V Series

Summary of Contents for Kobold DAG-M1V Series

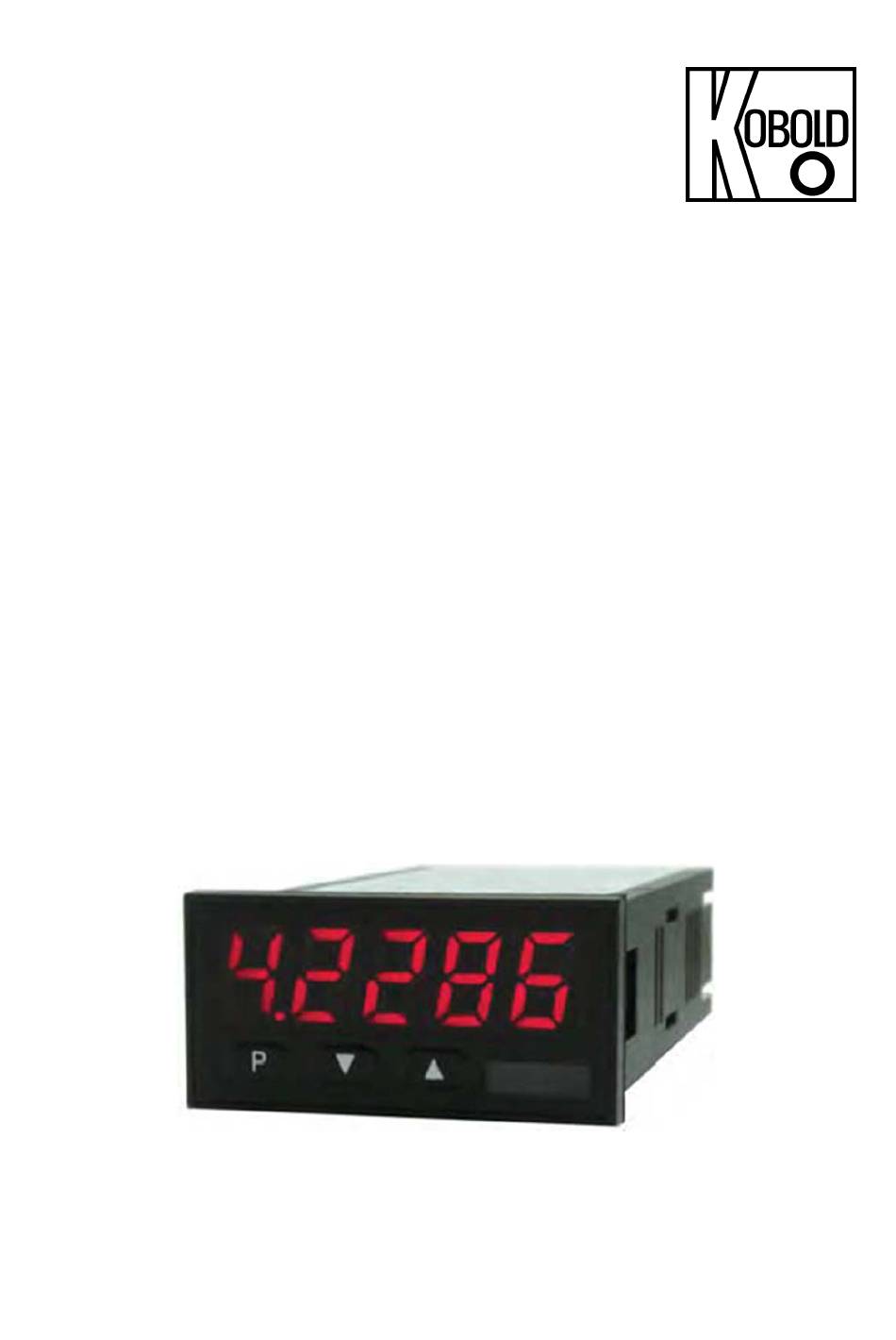

  • Page 1 Operating Instructions Digital Indicating Units Standard signals 0/4-20 mA, 0-10 VDC Model: DAG-M1V…, 48 x 24 mm...

  • Page 2: Table Of Contents

    DAG-M1V We don’t accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised on a regular basis. These changes will be implemented in later versions.
  • Page 3 DAG-M1V Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com DAG-M1V K07/0323 page 3...

  • Page 4: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 5: Brief Description

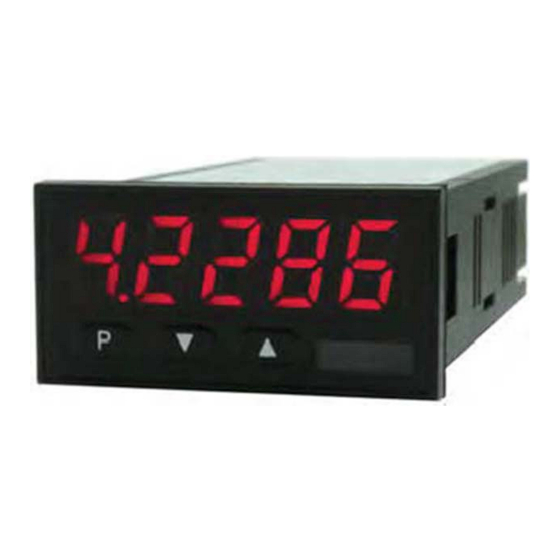

    DAG-M1V 5. Brief description The panel meter DAG-M1V is a 5-digit device for direct current/direct voltage signals and a visual threshold value monitoring via the display. The configuration happens via four front keys. An integrated programming interlock prevents unrequested changes of the parameters and can be unlocked again by an individual code.

  • Page 6: Assembly

    DAG-M1V 6. Assembly Please read the Safety advices on page 34 before installation and keep this user manual for future reference. 1. After removing the fixing elements, insert the device. 2. Check the seal to make sure it fits securely. 3.

  • Page 7: Electrical Connection

    DAG-M1V 7. Electrical Connection Type DAG-M1V0 Type DAG-M1V3 With a supply of 100-240 VAC With a supply of 24 VDC Connection examples Below you find three connection examples, which demonstrate some practical applications for devices with voltage or current input, without sensor supply: DAG-M1V K07/0323 page 7...
  • Page 8 DAG-M1V DAG-M1V devices With current respectively voltage input in combination with a 24 VDC sensor supply. page 8 DAG-M1V K07/0323...

  • Page 9: Function And Operation Description

    DAG-M1V 8. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) This level is for the standard settings of the device. Only menu items which are sufficient to set the device into operation are displayed. To get into the professional level, run through the menu level and parameterize “prof”...

  • Page 10: Setting Up The Device

    DAG-M1V Function chart: 9. Setting up the device 9.1 Switching on Once the installation is complete, you can start the device by applying the voltage supply. Before, check once again, that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
  • Page 11 DAG-M1V DAG-M1V K07/0323 page 11...
  • Page 12 DAG-M1V page 12 DAG-M1V K07/0323...
  • Page 13 DAG-M1V DAG-M1V K07/0323 page 13...

  • Page 14: Programming Interlock Run

    DAG-M1V 9.3 Programming interlock RUN page 14 DAG-M1V K07/0323...

  • Page 15: Extended Parameterization

    DAG-M1V 9.4 Extended parameterization 9.4.1 Signal input parameters DAG-M1V K07/0323 page 15...
  • Page 16 DAG-M1V page 16 DAG-M1V K07/0323...
  • Page 17 DAG-M1V DAG-M1V K07/0323 page 17...
  • Page 18 DAG-M1V 9.4.2 General device parameters page 18 DAG-M1V K07/0323...
  • Page 19 DAG-M1V DAG-M1V K07/0323 page 19...
  • Page 20 DAG-M1V page 20 DAG-M1V K07/0323...
  • Page 21 DAG-M1V DAG-M1V K07/0323 page 21...
  • Page 22 DAG-M1V 9.4.3 Safety parameters page 22 DAG-M1V K07/0323...
  • Page 23 DAG-M1V 9.4.4 Analogue output parameters DAG-M1V K07/0323 page 23...
  • Page 24 DAG-M1V page 24 DAG-M1V K07/0323...
  • Page 25 DAG-M1V 9.4.5 Relay functions DAG-M1V K07/0323 page 25...
  • Page 26 DAG-M1V page 26 DAG-M1V K07/0323...
  • Page 27 DAG-M1V 9.4.6 Alarm parameters DAG-M1V K07/0323 page 27...
  • Page 28 DAG-M1V page 28 DAG-M1V K07/0323...
  • Page 29 DAG-M1V 9.4.7 Totalizer (Volume metering) DAG-M1V K07/0323 page 29...

  • Page 30: Reset To Factory Settings

    DAG-M1V Programming interlock RUN Description see page 14, menu level RUN 10. Reset to factory settings To return the unit to a defined basic state, a reset can be carried out to the values. The following procedure should be used: ...

  • Page 31: Alarms / Relays

    DAG-M1V 11. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S2; furthermore, alarms can be controlled by events like e.g. Hold or Min-/Max. value.
  • Page 32 DAG-M1V Operating current By operating current the alarm S1-S2 is off below the threshold and „on“ on reaching the threshold. Quiescent current By quiescent current the alarm S1-S2 is on below the threshold and switched „off“ on reaching the threshold. Switching-on delay The switching-on delay is activated via an alarm and e.g.

  • Page 33: Sensor Calibration Offset / Final Value

    DAG-M1V 12. Sensor calibration Offset / Final value The device is equipped with a semi-automatic sensor calibration (SENSu/SENSa). A switching output operates the trimming resistor, which exists in some sensors. An adjustment of offset and final value takes place, after which the sensor can be used directly.

  • Page 34: Technical Information

    DAG-M1V 13. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 14. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 15.
  • Page 35 DAG-M1V Installation The DAG-device must be installed by a suitably qualified specialist (e.g. with a qualification in industrial electronics). Notes on installation  There must be no magnetic or electric fields in the vicinity of the device, e.g. due to transformers, mobile phones or electrostatic discharge. ...

  • Page 36: Error Elimination

    DAG-M1V 17. Error elimination page 36 DAG-M1V K07/0323...

  • Page 37: Disposal

    DAG-M1V 18. Disposal Note!  Avoid environmental damage caused by media-contaminated parts  Dispose of the device and packaging in an environmentally friendly manner  Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.

  • Page 38: Eu Declaration Of Conformance

    DAG-M1V 19. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit Model: DAG-M1V to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010+A1:2019+A1:2019/AC:2019...
