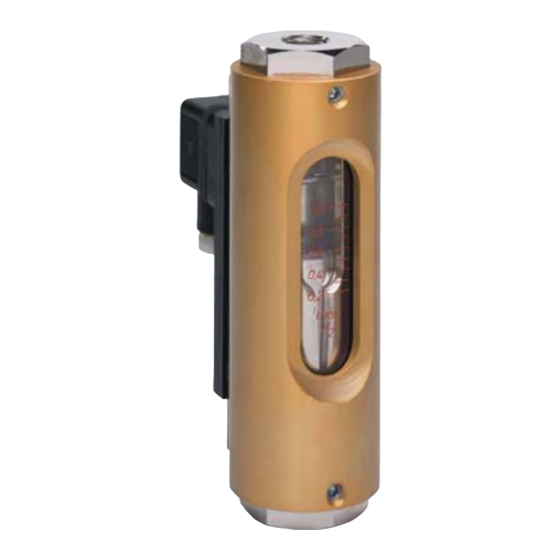

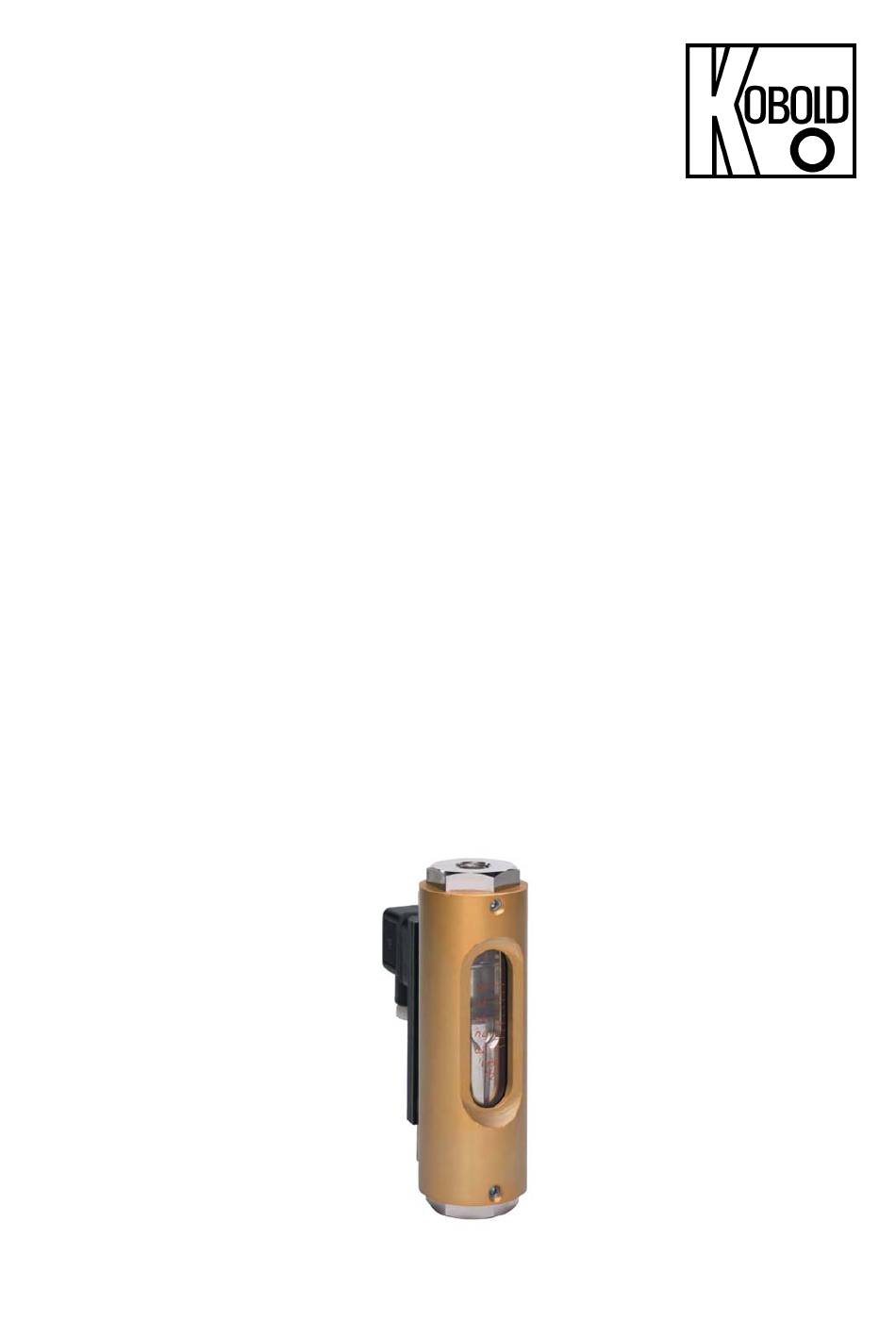

- Page 1 Operating Instruction Float-Type Flow Meter and Switch Model: DSV-...
-
Page 2: Table Of Contents
EU Declaration of Conformance (Reed contact 41R57**) ......24 Statement of conformity reed contact 41R57** ........... 25 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
4. Regulation Use The model DSV is employed for the measurement and monitoring of liquid flows which are homogeneous, free from impurities and have a low viscosity. In addition, they must be compatible with the materials used in fabrication of these units. -
Page 5: Operating Principles
5. Operating Principles The proven KOBOLD flow meters and switches model DSV are based on the principle of the well-known float-type flow meters except for the conventional tapering measuring tube. These patented instruments are provided instead with a cylindrical flow tube with conical slots around the periphery. -
Page 6: Mechanical Connection
6. Mechanical Connection Before installation: Make sure that the permitted max. operating pressure and temperature limits are not exceeded (see section 11. Technical Information) Remove all transport safety locks and ensure that no remains of packing material reside inside the unit. ... -
Page 7: Electrical Connection
7. Electrical Connection 7.1. DSV-2... and DSV-3 Make sure that the electrical supply wires are powerless. Undo the locking screw on the plug cap and remove the plug from the socket. Mount supply line in the plug cap as shown in the wiring diagram. -
Page 8: Use In Hazardous Area
8. Use in hazardous area 8.1. Statement an apparatus not containing an own potential ignition source page 8 DSV K09/0322... -
Page 9: Atex Reed Contact 41R57
8.1. ATEX reed contact 41R57** ATEX N/O contact 41R57 II 3G Ex ic IIC T4 Gc II 3 D Ex ic IIIC T125 °C Dc -20 °C ≤Ta≤80 °C max. 250 V /1.5 A/100 W/100 VA AC/DC ATEX changeover contact 41R57U II 3G Ex ic IIC T4 Gc II 3 D Ex ic IIIC T125 °C Dc -20 °C ≤Ta≤80 °C... - Page 10 - Part 11: Equipment protection by intrinsic safety "i" 2. General information on explosion protection The reed switches work together with various KOBOLD products and serve there for monitoring. It is available as N/O contact or changeover contact. The electrical connection is made via a plug - only in intrinsically safe systems.
- Page 11 2.1. Electrical characteristics for Ex i Electrical data: • Rated voltage up to 45 volt AC / DC • Rated current up to 2 A • Ui ≤ 30 V AC / DC, Ii ≤ 250 mA • Ui ≤ 45 V AC / DC, Ii ≤...
- Page 12 2.4.2 General safety instructions The reed switch corresponds to the state of the art and is reliable. The reed switch may pose a residual hazard if improperly used and operated by untrained personnel. Every person, responsible for the installation, commissioning, maintenance or repair of the reed switch, must have read and understood the assembly instructions and in particular the safety instructions.
- Page 13 f) Heat radiation from foreign products / components must also be considered. g) The reed switch must be protected against inadmissible access of liquids and / or soiling. h) Fixed parts (e.g. due to frost or corrosion) must not be loosened by force in the presence of an explosive atmosphere.
- Page 14 4. Maintenance, servicing Definition of terms according to IEC 60079-17: Maintenance and Repair: A combination of all activities performed to maintain or recover an item in a condition that meets the requirements of the specification in question and ensures the performance of the required functions. Inspection: An activity involving the careful examination of an object, with the aim of obtaining a reliable statement of the condition of the object, carried out without disassembly or, if necessary, with partial disassembly, supplemented by...
- Page 15 Close detailed visual inspection inspection Activity inspection per every every month months 12 months Visual inspection of the reed switch for damage, remove ● dust deposits Check for integrity and ● function Testing the entire system The responsibility of the operator 5.
-
Page 16: Commissioning
9. Commissioning Application in machines, according to guidelines 89/392/EWG, the commissioning of these units is barred until it is determined that the machine is in agreement with the designations of guidelines. Adjustment of limit-values Loosen both safety screws on the contact base clown, with the help of a screwdriver. -
Page 17: Maintenance
Hysteresis Hysteresis reflects the difference between switch-on and switch-off points of a contact. Through standard tuning of the float magnet and reed contact power (AW number) a hysteresis of about 3-5 mm float stroke is achieved. Thereby, ensuring that the contact exhibits bistable behaviour. Exceeding the measuring range Attention! Continuously exceeding the measuring range, especially with pulsating flow and the resulting contact of the... -
Page 18: Technical Information
11. Technical Information Housing: Aluminium anodised (not wetted) Connections: DSV-x1..: Brass MS 58, nickel-plated DSV-x2..: St. Steel 1.4301 Float: see section 122. Order Codes Orifice: DSV-x1..: Brass MS 58, nickel-plated DSV-x2..: St. Steel 1.3955 Measuring glass: Borosilicate glass Sealing rings: DSV-x1..: NBR DSV-x2..: FPM Max. -
Page 19: Order Codes
ATEX N/O contact 41R57 ...G0 and GG: II 3 G Ex ic IIC T4 Gc II 3 D Ex ic IIIC T125 °C Dc -20 °C ≤Ta≤80 °C max. 250 V /1.5 A/100 W/100 VA AC/DC ATEX changeover contact 41R57U ...H0 and HH: II 3 G Ex ic IIC T4 Gc II 3 D Ex ic IIIC T125 °C Dc... -
Page 20: Recommended Spare Parts
Flow meters and switches with 2 contacts model: DSV-3... Measuring Pressure Float according Brass Stainless Contact Connection range loss to version steel L/min. Δ P (bar) Brass St. steel water 0.25...1.25 0.04 PVDF DSV-3101H... DSV-3201H..RR...= 2 N/O contacts ..R08= G 1/4 ..N08= 1/4 NPT ...UU...= 2 changeover 0.5...2.5... -
Page 21: Dimensions
14. Dimensions Float with unit Weight approx. (kg) version Model L (mm) (mm) DSV-1 DSV-2 DSV-3 brass st.steel DSV-..01H 161 (165) 0.75 1.25 0.04 PVDF (1/2) DSV-..02H 161 (165) 0.75 1.25 0.06 PVDF (1/2) DSV-..03H 161 (165) 0.75 1.25 0.04 PVDF (1/2) DSV-..04H... -
Page 22: Eu Declaration Of Conformance (Dsv)
15. EU Declaration of Conformance (DSV) We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Meter / Switch Model: DSV to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010... -
Page 23: Declaration Of Conformity (Dsv)
ATEX not available in GB 16. UK Declaration of Conformity (DSV) We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Float-Type Flowmeter and Switch model: DSV -... to which this declaration relates is in conformity with the standards noted below:... -
Page 24: Eu Declaration Of Conformance (Reed Contact 41R57**)
ATEX not available in GB 17. EU Declaration of Conformance (Reed contact 41R57**) page 24 DSV K09/0322... -
Page 25: Statement Of Conformity Reed Contact 41R57
ATEX not available in GB 18. Statement of conformity reed contact 41R57** DSV K09/0322 page 25... - Page 26 ATEX not available in GB page 26 DSV K09/0322...
- Page 27 ATEX not available in GB DSV K09/0322 page 27...
- Page 28 ATEX not available in GB page 28 DSV K09/0322...
