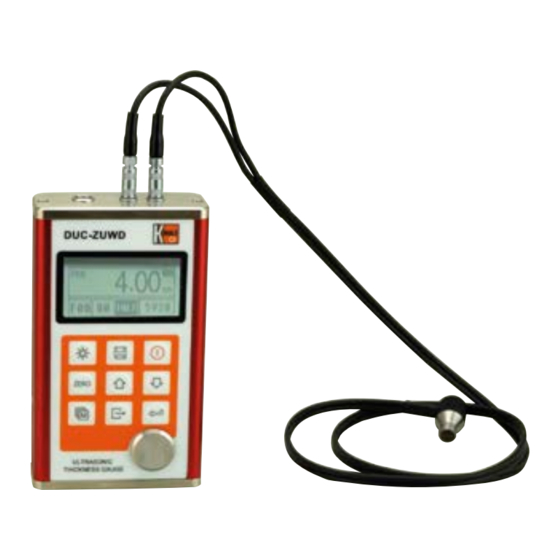

Kobold DUC-ZUWD Quick Start

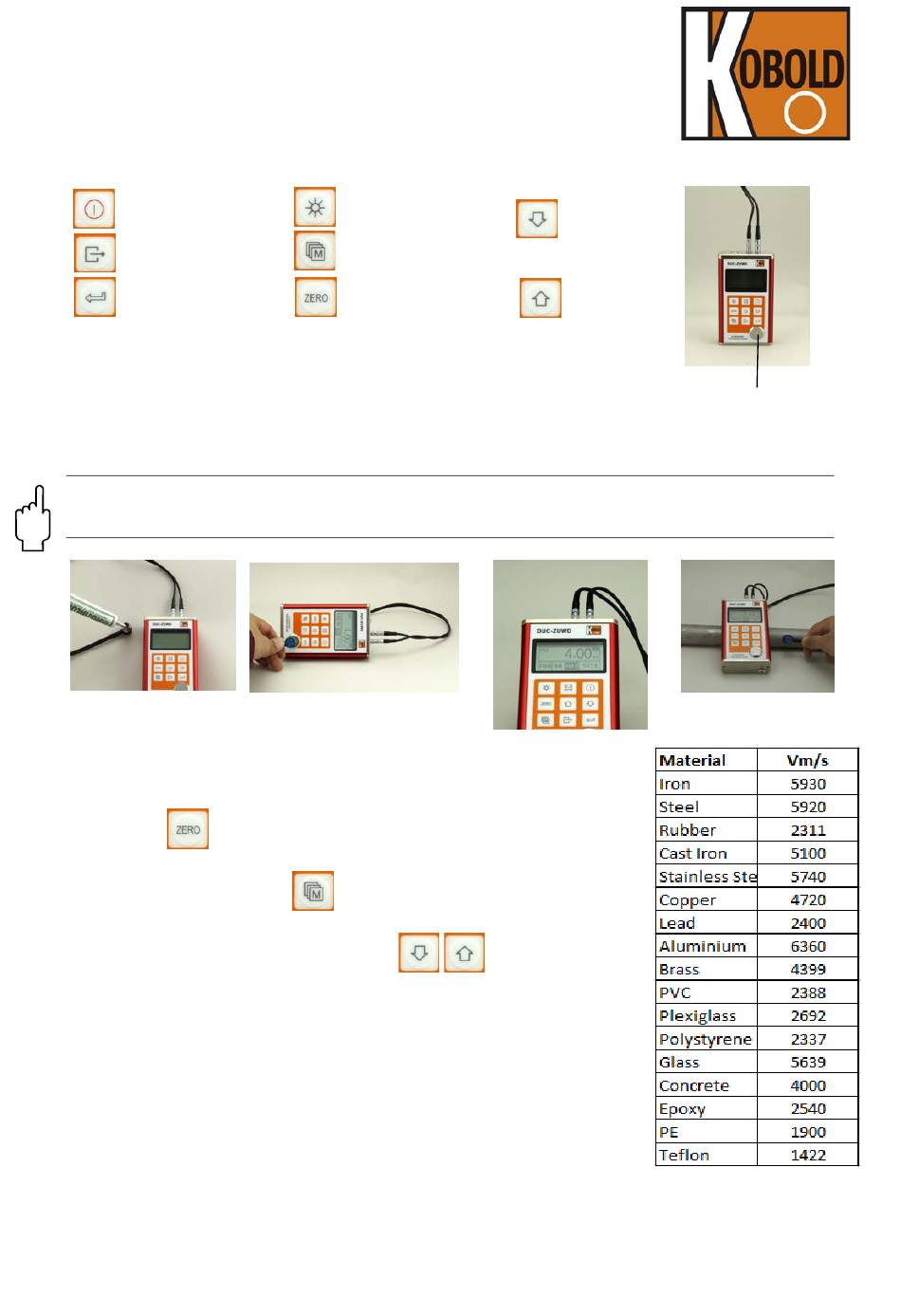

DUC-ZUWD Quickstart
Prepare your wall thickness gauge /Keypad definition
The delivery is usually ready to use; batteries (AA).
Switch on / off
Exit
Enter

3 steps to parameterize your wall thickness gauge

1. Please check if the sensor probe type is set correctly (standard type 'N07')
2. Make calibration using integrated calibration sample
3. Set value for speed of sound of your pipe material.
4. Place probe on the pipe and get reading for wall thickness
Please make sure to put some coupling grease on the sensor tip before measurement.
Calibration should be repeated each time you start new measurement.
Calibration should be done at speed of sound of 5920 m/s
Pic. 1
Put some coupling grease (Magnalube) on the probe tip (Pic.1).
Put sensor on the integrated calibration sample (Pic.2) which you find in
the lowermost right corner of the instrument.
Press button . Display will show 4.00 mm. Remove the probe.
Your DUC-ZUWD is now calibrated. Now set the speed of sound of media
of pipe material. Press button
of sound. (lowermost line, right corner), see pic.3.
The value can be changed by using buttons
materials can be obtained from the adjacent table. Put sensor tip on your pipe
and take readings from display, see pic.4.
Backlight on / off
Menu / Select

Calibration

Pic. 2
(4x) to go to menu for setting of speed
Scroll down /
decrease
Scroll up/
Increase
Pic. 3
.
Values for typical
Connect
the signal
cables of
the
transducer
to the
thickness
gauge
Calibration sample
Pic. 4
