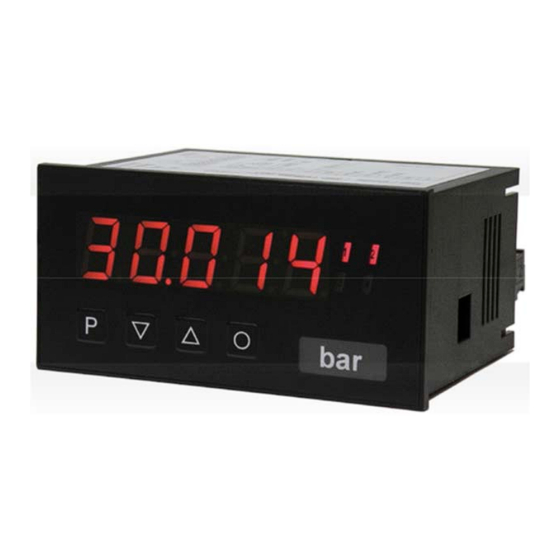

Digital indicating unit, frequency input 0,01 hz to 999,99 khz, connection for namur-, npn-, pnp-, and ttl-sensors, 96 x 48 mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
for
Digital Indicating Unit
Frequency input 0,01 Hz to 999,99 kHz
Connection for Namur-, NPN-, PNP- and TTL-sensors
Model: DAG-S4F..., 96 x 48 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-S4F Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kobold DAG-S4F Series

Summary of Contents for Kobold DAG-S4F Series

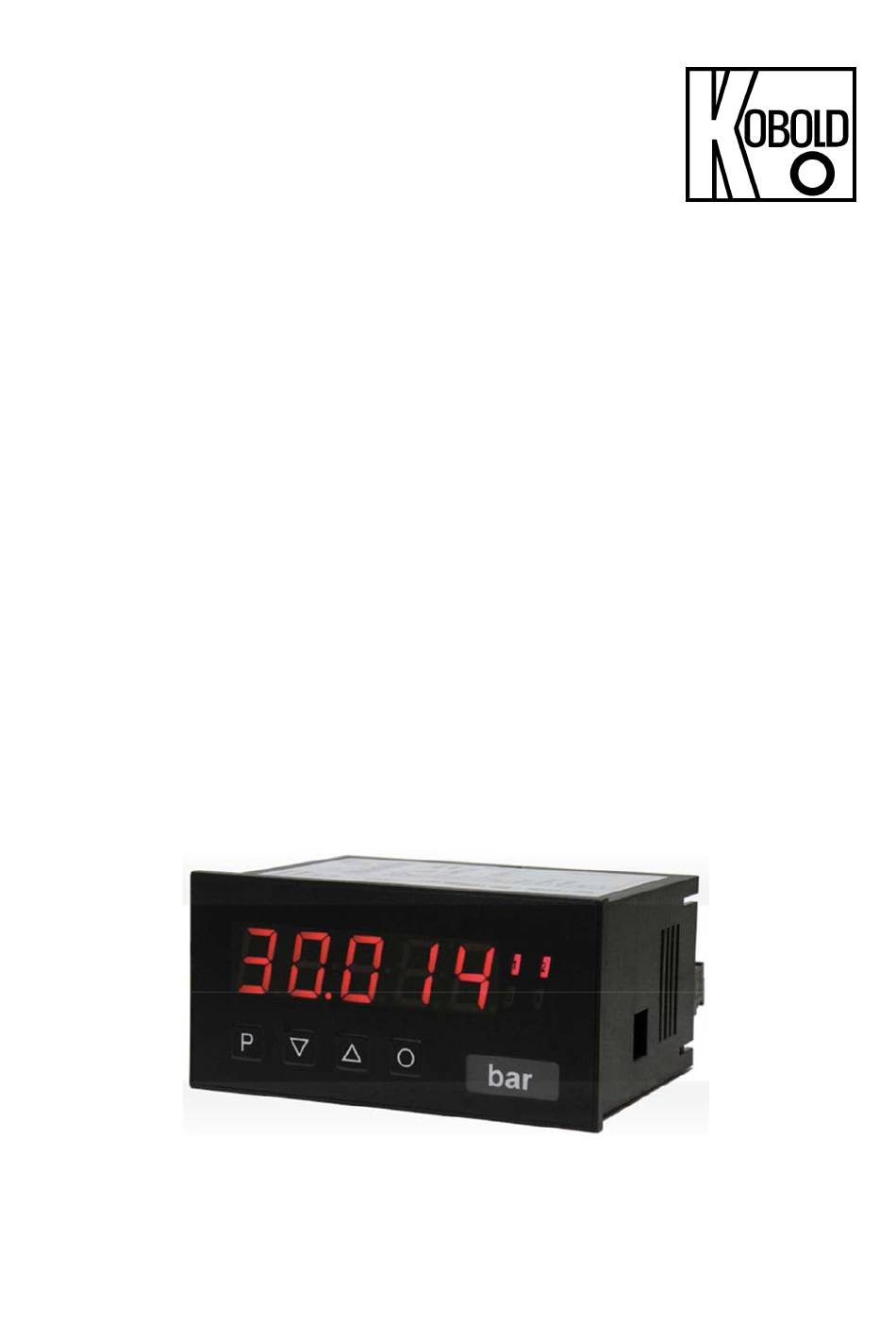

  • Page 1 Operating Instructions Digital Indicating Unit Frequency input 0,01 Hz to 999,99 kHz Connection for Namur-, NPN-, PNP- and TTL-sensors Model: DAG-S4F…, 96 x 48 mm...

  • Page 2: Table Of Contents

    Error elimination ..................47     Disposal ...................... 48     EU Declaration of Conformance ..............49     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 DAG-S4F K05/0323...

  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 4: Assembly

    DAG-S4F 5. Assembly Please read the Safety advices on page 45 before installation and keep this user manual for future reference. 1. After removing the fixing elements, insert the device. 2. Check the seal to make sure it fits securely. 3.

  • Page 5: Electrical Connection

    DAG-S4F 6. Electrical connection DAG-S4F0 with power supply 230 VAC DAG-S4F4 with power supply 115 VAC DAG-S4F3 with power supply 10- Attention! For devices with sensor supply, terminal clamps 4 and 8, as well as 3 and 7 are connected galvanically in the device. DAG-S4F K05/0323 page 5...
  • Page 6 DAG-S4F DAG-S4F…devices with frequency / impulse input page 6 DAG-S4F K05/0323...

  • Page 7: Function And Operation Description

    DAG-S4F 7. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) This level is for the standard settings of the device. Only menu items which are sufficient to set the device into an operation are displayed. To get into the professional level, run through the menu level and parameterize “prof”...

  • Page 8: Setting Up The Device

    DAG-S4F Function chart 8. Setting up the device 8.1 Switching-on Once the installation is complete, you can start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on progress, the segment test (8 8 8 8 8) is displayed, followed by an indication of the software type and, after that, also for 1 second, the software version.
  • Page 9 DAG-S4F DAG-S4F K05/0323 page 9...
  • Page 10 DAG-S4F page 10 DAG-S4F K05/0323...
  • Page 11 DAG-S4F DAG-S4F K05/0323 page 11...
  • Page 12 DAG-S4F page 12 DAG-S4F K05/0323...
  • Page 13 DAG-S4F DAG-S4F K05/0323 page 13...

  • Page 14: Extended Parameterization (Professional Operation Level)

    DAG-S4F 8.3 Extended parameterization (Professional operation level) 8.3.1 Signal input parameters page 14 DAG-S4F K05/0323...
  • Page 15 DAG-S4F DAG-S4F K05/0323 page 15...
  • Page 16 DAG-S4F page 16 DAG-S4F K05/0323...
  • Page 17 DAG-S4F DAG-S4F K05/0323 page 17...
  • Page 18 DAG-S4F 8.3.2 General device parameters page 18 DAG-S4F K05/0323...
  • Page 19 DAG-S4F DAG-S4F K05/0323 page 19...
  • Page 20 DAG-S4F page 20 DAG-S4F K05/0323...
  • Page 21 DAG-S4F 8.3.3 Safety parameters DAG-S4F K05/0323 page 21...
  • Page 22 DAG-S4F 8.3.4 Analogue output parameters page 22 DAG-S4F K05/0323...
  • Page 23 DAG-S4F DAG-S4F K05/0323 page 23...
  • Page 24 DAG-S4F 8.3.5 Relay functions page 24 DAG-S4F K05/0323...
  • Page 25 DAG-S4F DAG-S4F K05/0323 page 25...
  • Page 26 DAG-S4F 8.3.6 Alarm parameters page 26 DAG-S4F K05/0323...
  • Page 27 DAG-S4F DAG-S4F K05/0323 page 27...
  • Page 28 DAG-S4F 8.3.7 Totalizer (Volume measurement) page 28 DAG-S4F K05/0323...
  • Page 29 DAG-S4F 8.3.8 Programming lock RUN Description see page 13, menu level run DAG-S4F K05/0323 page 29...

  • Page 30: Programmer Examples

    DAG-S4F 8.4 Programmer examples Examples: Adjustment according to number of sprockets at unknown rotation speed.  Nearly 100% of the rotation speeds are in the range of 0 to 30.000 r.p.m.    The number of sprockets varies (without gearing) between 1 and 100.  ...

  • Page 31: Alarms / Relays

    DAG-S4F Calculation of the input frequency Number of sprockets Rotation speed = 3600 U/min Setting up the device Based on the default settings of the device, following parameters need to be changed: 9. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance.
  • Page 32 DAG-S4F Operating current By operating current the alarm S1-S2 is off below the threshold and on on reaching the threshold. Quiescent current By quiescent current the alarm S1-S2 is on below the threshold and switched off on reaching the threshold. Switching-on delay The switching-on delay is activated via an alarm and e.g.

  • Page 33: Factory Settings

    DAG-S4F 10. Factory settings 10.1 Default values Standard parameterization (flat operation level) DAG-S4F K05/0323 page 33...
  • Page 34 DAG-S4F page 34 DAG-S4F K05/0323...
  • Page 35 DAG-S4F Extended parameterization (professional operation level) Signal input parameters DAG-S4F K05/0323 page 35...
  • Page 36 DAG-S4F page 36 DAG-S4F K05/0323...
  • Page 37 DAG-S4F General device parameters DAG-S4F K05/0323 page 37...
  • Page 38 DAG-S4F Safety parameters page 38 DAG-S4F K05/0323...
  • Page 39 DAG-S4F Analogue parameters Relay functions DAG-S4F K05/0323 page 39...
  • Page 40 DAG-S4F page 40 DAG-S4F K05/0323...
  • Page 41 DAG-S4F Alarm parameters DAG-S4F K05/0323 page 41...
  • Page 42 DAG-S4F page 42 DAG-S4F K05/0323...
  • Page 43 DAG-S4F DAG-S4F K05/0323 page 43...

  • Page 44: Reset To Default Values

    DAG-S4F Totalizer (Volume measuring) 10.2 Reset to default values To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used:  Switch off the power supply.  ...

  • Page 45: Technical Information

    DAG-S4F 11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 13.
  • Page 46 DAG-S4F Installation The DAG-S4…device must be installed by a suitably qualified specialist (e.g. with a qualification in industrial electronics). Notes on installation  There must be no magnetic or electric fields in the vicinity of the device, e.g. due to transformers, mobile phones or electrostatic discharge. ...

  • Page 47: Error Elimination

    DAG-S4F 15. Error elimination DAG-S4F K05/0323 page 47...

  • Page 48: Disposal

    DAG-S4F 16. Disposal Note!  Avoid environmental damage caused by media-contaminated parts  Dispose of the device and packaging in an environmentally friendly manner  Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.

  • Page 49: Eu Declaration Of Conformance

    DAG-S4F 17. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit for Panel Mounting Model: DAG-S4F to which this declaration relates is in conformity with the standards noted below:...
