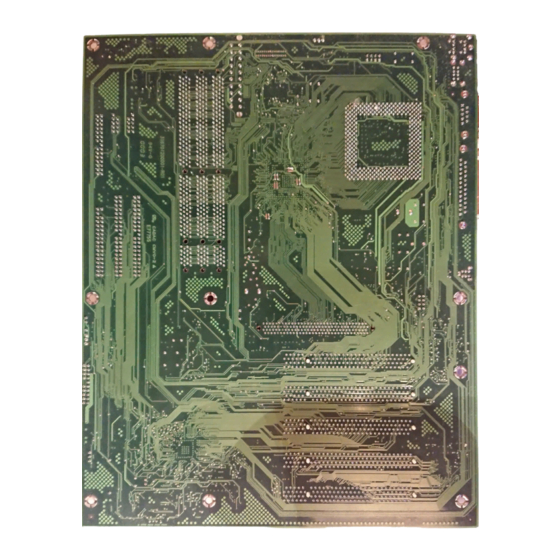

- Page 1 6513VX Motherboard Reference...
- Page 2 Part Number : 5615 7012 0001 R00 (Jul. 2000)
- Page 3 Trademarks All brand and product names are trademarks or registered trademarks of their respective companies. Note The information in this guide is subject to change without notice.
- Page 4 Caution Texts Concerning Lithium Batteries DANISH ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten.
- Page 5 Class B Regulations U. S. A. Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 Important Safety Instructions Read all of these instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before installing an add-on card inside this product. Do not use this product near water. ...
-
Page 7: Table Of Contents
Table of Contents Preface.......................8 Chapter 1 Introduction.................9 Features..................9 Specifications................9 CPU, Memory, and Main Components........9 Interfaces and Controllers............10 Chapter 2 System Components............11 Major Components..............12 Block Diagram................14 Chapter 3 Connector and Jumper Definition........15 Connector Definitions..............16 Internal Connectors..............16 External Connectors...............16 Jumper Settings................17 CPU Jumper Settings.............17 Other Jumper Settings............17 Chapter 4 CPU and Memory Installation.........19... - Page 8 List of Figures Figure 2-1. Major Components of System Board......11 Figure 3-1. Connector and Jumper Locations......15 Figure 4-1. Inserting CPU............19 Figure 4-2. Installing CPU............20 Figure 4-3. DIMM Socket Locations..........21 Figure 4-4. Installing DIMM Module..........21 List of Tables Table 2-1. Major Components Description........12 Table 3-1.
-
Page 9: Preface
Preface This manual contains basic information necessary for both the end user and service personnel. Although most of the information you need are contained in this manual, we recommend you to contact an authorized dealer for service purposes. Making personal alterations to the system can violate the effectivity of your warranty. -
Page 10: Chapter 1 Introduction
Chapter 1 Introduction This chapter introduces the specifications and the features of the motherboard. Features 66/100/133 FSB Socket 370 CPU Support AGP Interface The host CPU interface, AGP (Accelerated Graphics Port) interface, 64-bit DRAM bus, and PCI interface are integrated into the system. ... -
Page 11: Interfaces And Controllers
ROM BIOS 2Mb flash EEPROM, supporting audio, video, security, setup, and power management Interfaces and Controllers Apollo chipset The chipset consists of the VT82C694X PCI AGP System Controller and the VT82C686A super I/O Controller. I/O Interfaces The VT82C686A Super I/O supports: - One standard/ECP/EPP parallel port (DB25-F) - One RS-232C serial port (DB9-M) - One PS/2 keyboard connector (6-pin mini-DIN) -
Page 12: Chapter 2 System Components
Chapter 2 System Components This chapter introduces the components of the motherboard. Major Components PCI Slots AGP Slot PGA370 CPU Socket VT82C694X System Controller Memory Sockets DIMM1 DIMM2 VT82C686A DIMM3 Super I/O BIOS Battery Figure 2-1. Major Components of System Board... -
Page 13: Major Components
Reference Description Name DIMM1, DIMM sockets: DIMM DIMM2, 64-bit data bus DIMM3 Three168-pin 3.3V unbuffered DIMM sockets Supports 133MHz SDRAM module (SPD rev 1.1) 8, 16, 32, 64, 128 and 256MB DIMMs supported 66/100/133 CPU Socket 370 CPU: Intel CPU ... - Page 14 (Continued) Reference Description Name VT82C686A 352-pin BGA PCI-to-ISA bridge: - PCI Rev2.1 Specification - Supports PCI at 33MHz Super I/O Control: - Keyboard/mouse controller - An FDD controller for 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB FDD - High speed NS16C550 compatible serial port - IEEE 1284 PIO port ...
-
Page 15: Block Diagram
Block Diagram... -
Page 16: Chapter 3 Connector And Jumper Definition
Chapter 3 Connector and Jumper Definition This chapter defines the connectors and jumpers on the motherboard. PCI4 PCI2 PCI5 PCI3 PCI1 AGP1 DIMM1 DIMM2 DIMM3 Figure 3-1. Connector and Jumper Locations... -
Page 17: Connector Definitions
Connector Definitions Internal Connectors Connector Definition ATX power Suspend LED HDD LED 11-13 Power LED 15-16 Power button CPU fan CPU socket System fan AGP1 AGP slot Battery socket DIMM1~3 DIMM sockets PCI1~5 PCI slots Table 3-1. Internal Connector Definition External Connectors Connector Definition... -
Page 18: Jumper Settings
Jumper Settings NOTE: Jumpers not described in this chapter are reserved for factory use only. Do not change the default settings. CPU Jumper Settings Pentium II / III CPU Frequency Clock Multiplier (66/100/133MHz) 200/300 1-2, 5-6, 7-8 233/350 1-2, 7-8 266/400/533 3-4, 5-6, 7-8 300/450/600... -
Page 19: Table 3-5. Other Jumper Settings
Other Jumper Settings Jumper Definition Setting CMOS setting 1-2: Normal 2-3: Clear CMOS * To clear the RTC and CMOS RAM, set JP1 to 2-3 for one second, and set it back to 1-2 again. Table 3-5. Other Jumper Settings... -
Page 20: Chapter 4 Cpu And Memory Installation
Chapter 4 CPU and Memory Installation NOTE: To avoid damage during installation, you are advised to ask your dealer for help. NOTE: Static electricity can destroy electronic devices. Whenever you handle any option outside of its protective packaging, first discharge any static electricity from your body by touching a protective grounding device or unpainted metal on the rear panel of the system unit. -
Page 21: Figure 4-2. Installing Cpu
4. Press the arm downwards to the horizontal position. You will feel some resistance while doing so. This is normal as the pressure starts to secure the CPU in place. Figure 4-2. Installing CPU... -
Page 22: System Memory Installation
System Memory Installation 1. Locate the DIMM sockets (DIMM1-3) on the motherboard. Memory Sockets DIMM1 DIMM2 DIMM3 Figure 4-3. DIMM Socket Locations 2. Align the DIMM module with the socket and firmly insert the DIMM into the socket. Then, push the plastic clips to snap it into place. Figure 4-4. -
Page 23: Chapter 5 The Setup Program
Chapter 5 The SETUP Program This chapter tells you how to configure your system using the SETUP program. Introduction The SETUP program allows you to enter the system configuration information. This information is needed by the system to identify the type of devices installed and to set up special features. -
Page 24: Moving Around And Making Selections
Moving Around and Making Selections In general, you use the arrow keys to highlight items and the [PageUp]/[+] and [PageDown]/[-] keys to change entries. Description of keyboard usage is listed below. You can also find keyboard instructions on the menu screen. Description [á], [â] Move the highlight to the previous or next item. -
Page 25: Standard Cmos Features
Standard CMOS Features The “Standard CMOS Features” category includes all the items in a standard, AT-compatible BIOS (Basic Input/Output System). The followings describe in sequence all the items of this category. Date/Time The date and time might be incorrect when you start up your computer for the first time. -
Page 26: Advanced Bios Features
Advanced BIOS Features The “Advanced BIOS Features” category includes all the items of your system’s special enhanced features. The followings describe in sequence all the items of this category. Virus Warning This item helps prevent computer viruses by monitoring the boot sector and partition table of the hard disk drive. - Page 27 First/Second/Third Boot Device, Boot Other Device This item sets the sequence of booting, i.e., which drive to search first for the operating system. Swap Floppy Drive This feature allows you to exchange the drive names of the two floppy disk drives, if installed.
-
Page 28: Advanced Chipset Features
Security Option This item allows you to limit the access to the system and SETUP, or just to SETUP. NOTE: Security takes effect only if a password is set. (See “Set Supervisor/User Password” in this chapter.) OS Select for DRAM > 64MB This item allows you to access the memory that is over 64MB in OS/2. -
Page 29: Integrated Peripherals
Integrated Peripherals The “Integrated Peripherals” category allows you to configure the on-board device controllers. The followings describe in sequence all the items of this category. Onchip IDE Channel 0/1 Your system includes two built-in IDE controllers, both of which operate on the PCI bus. - Page 30 Onboard Serial Port 1 This item sets the I/O address and interrupt request line (IRQ) for the on-board serial port. UART 2 Mode This item sets the serial port standard depending on the device connected. The available options are Standard, HPSIR, and ASKIR. If you select HPSIR or ASKIR, the “IR Function Duplex”...
-
Page 31: Power Management Setup
Power Management Setup The “Power Management Setup” category allows you to configure you system to save energy. The followings describe in sequence all the items of this category. ACPI Function This item enables or disables ACPI (Advanced Configuration Power Interface) - a power management standard used by Windows 98 and Windows NT 5.0. -
Page 32: Pnp/Pci Configurations
Soft-Off by PWRBTN This item defines the Power/Suspend Button of the system. ** Wake Up Events ** This group of items specify the I/O event that will power up the system in soft-off mode. The available options are VGA, LPT & COM, HDD & FDD, PCI Master, Modem Ring Resume, RTC Alarm Resume, Primary INTR, and IRQs Activity Monitoring. -
Page 33: Set Password
Set Password You can set either supervisor or user password, or both of them. The differences between them are: Supervisor password can enter and change the options of the setup menus. User password can only enter but do not have the right to change the options of the setup menus.
