ICW TITAN 2020 Installation

When mounting to studs, ICW recommends using only wood or metal studs. This is the basic method to
mount the arm on a stud. Check building code regulations in your area for additional requirements.
MD TRACK – ALSO USED FOR TITAN ARM
FOR WOOD STUD
Center mounting option
Locate the wall stud and mark the top center hole of the wall track. Drill a 11/64
pilot hole, insert a #14 screw and tighten slightly. Using a level, mark the lower
holes in the center of the track, drill pilot holes and then insert the #14 screws. Use
all screws.
Right or left mounting option
• Locate the wall stud. Align either right or left side of track with stud and mark one
hole in the upper corner for track placement. Drill 11/64" pilot hole. Insert #14
screw and tighten slightly.
• Using a level, mark the remaining holes on the same side, drill pilot holes into
stud. Insert #14 screws and, with the unit level, tighten screws.
• Insert provided Snap Togglers into outer corner holes on opposite side.
FOR METAL STUD
#14 wood screws are supplied with unit. If installing into metal studs you will
need to replace these with proper metal stud fasteners or provided snap toggles.
All hardware used to secure track mount must have a proper countersunk head.

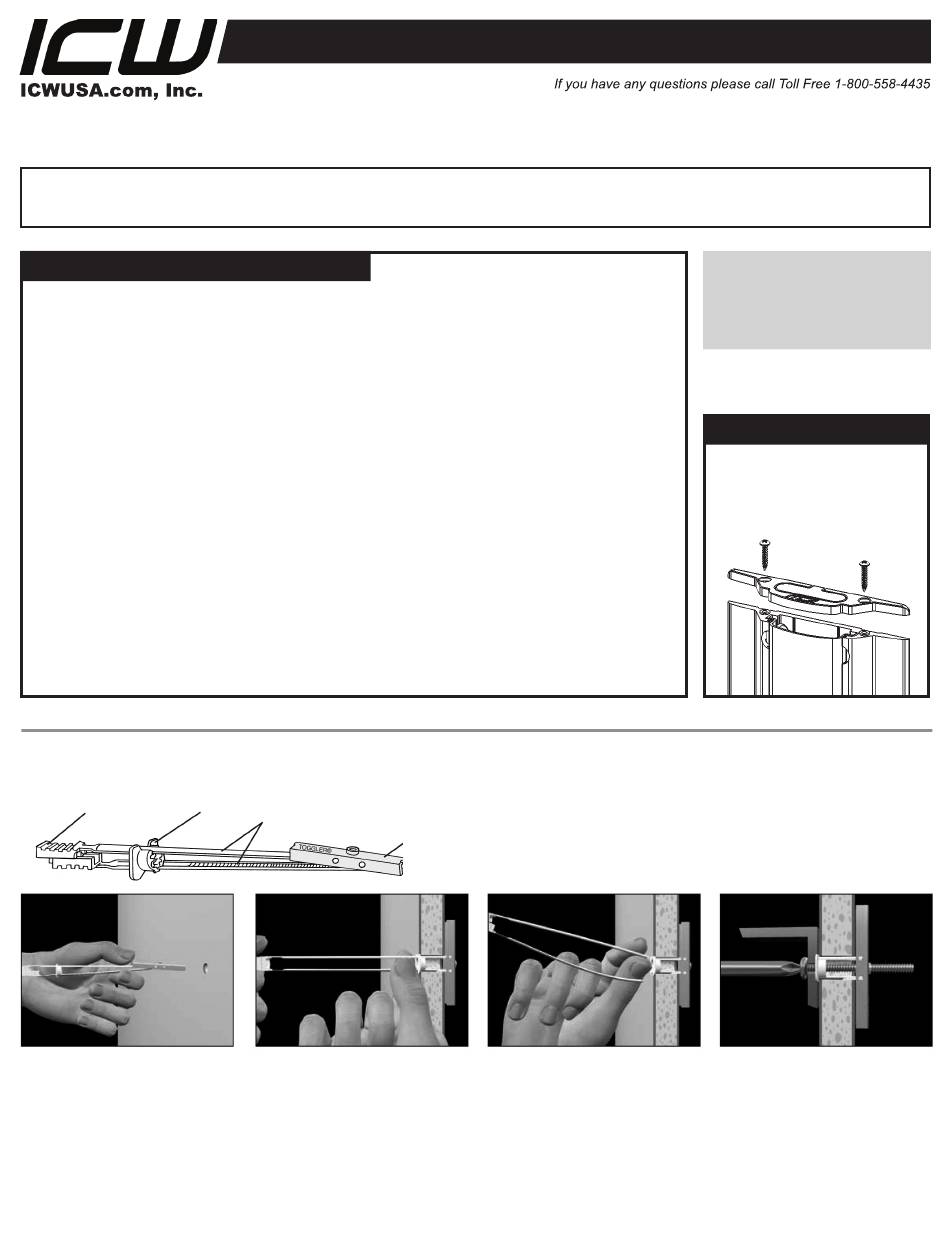

Snap Toggle Instructions
Handle Cap
Drill 1/2" hole. Hold metal
channel flat alongside
plastic straps and slide
channel through the hole.
Minimum clearance behind
wall is 1-7/8"
Page 1 of 4
TITAN 2020 EASY-TO-WIRE INSTALLATION

Mount Arm to Track

Straps
Anchoring
Channel
Hold ends of straps together
between thumb and fore-
finger and pull toward you
until channel rests behind
wall. Ratchet cap along straps
with other hand until flange of
cap is flush with wall.
The plastic straps and cap washer are positioning and
retention elements only. They do not otherwise function as
anchoring elements. Holding is dependent only on a metal
bolt to metal channel connection. The SnapToggle anchor
complies with all existing fire codes for critical applications.
Place thumb between straps
at wall. Push thumb side
to side, snapping off straps
level with flange of cap.
TITAN 2020 EASY-TO-WIRE INSTALLATION - 5/20/20
 MAXIMUM
LOAD 28 LBS
(12.7 KG)
ATTACH BEAUTY CAP
After track installation
is complete, attach the
beauty cap using a
Phillips screwdriver.
Place track over flange.
Insert provided bolt and
tighten until snug against
track, then stop.
