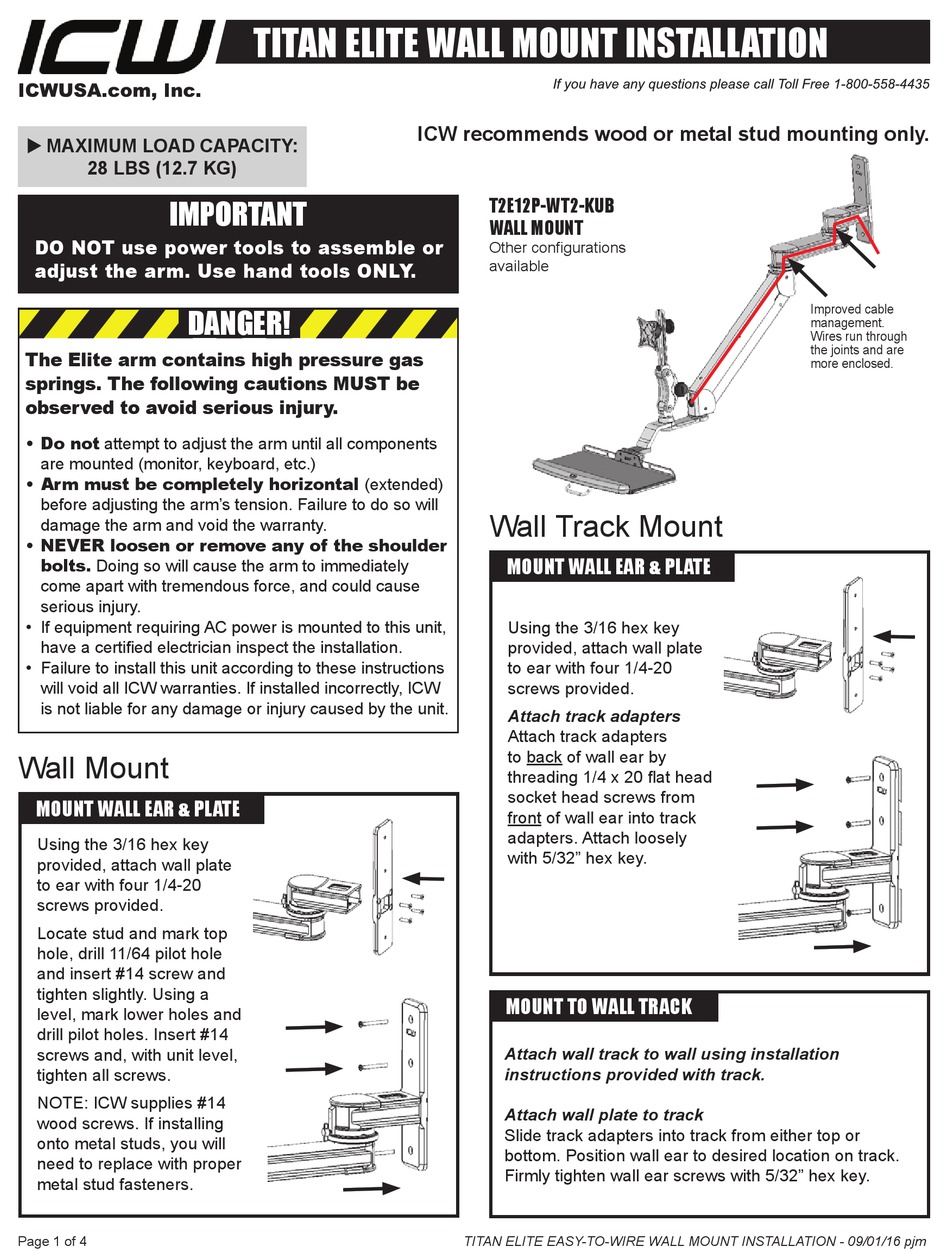

ICW TITAN ELITE T2E12P-WT2-KUB Installation Instructions

 MAXIMUM LOAD CAPACITY:
28 Lbs (12.7 kg)
IMPORTANT
Do NoT use power tools to assemble or
adjust the arm. Use hand tools oNLY.
DANGER!
The elite arm contains high pressure gas
springs. The following cautions MUST be
observed to avoid serious injury.
• Do not attempt to adjust the arm until all components
are mounted (monitor, keyboard, etc.)
• Arm must be completely horizontal (extended)
before adjusting the arm's tension. Failure to do so will
damage the arm and void the warranty.
• Never loosen or remove any of the shoulder
bolts. Doing so will cause the arm to immediately
come apart with tremendous force, and could cause
serious injury.
• If equipment requiring AC power is mounted to this unit,
have a certified electrician inspect the installation.
• Failure to install this unit according to these instructions
will void all ICW warranties. If installed incorrectly, ICW
is not liable for any damage or injury caused by the unit.
Wall Mount
MOUNT WALL EAR & PLATE
Using the 3/16 hex key
provided, attach wall plate
to ear with four 1/4-20
screws provided.
Locate stud and mark top
hole, drill 11/64 pilot hole
and insert #14 screw and
tighten slightly. Using a
level, mark lower holes and
drill pilot holes. Insert #14
screws and, with unit level,
tighten all screws.
NOTE: ICW supplies #14
wood screws. If installing
onto metal studs, you will
need to replace with proper
metal stud fasteners.
Page 1 of 4
TITAN ELITE WALL MOUNT INsTALLATION
ICW recommends wood or metal stud mounting only.
T2E12P-WT2-KUB
WALL MOUNT
Other configurations
available
Wall Track Mount
MOUNT WALL EAR & PLATE
Using the 3/16 hex key
provided, attach wall plate
to ear with four 1/4-20
screws provided.
Attach track adapters
Attach track adapters
to back of wall ear by
threading 1/4 x 20 flat head
socket head screws from
front of wall ear into track
adapters. Attach loosely
with 5/32" hex key.

MOUNT TO WALL TRACK

Attach wall track to wall using installation
instructions provided with track.
Attach wall plate to track
Slide track adapters into track from either top or
bottom. Position wall ear to desired location on track.
Firmly tighten wall ear screws with 5/32" hex key.
TITAN ELITE EASY-TO-WIRE WALL MOUNT INSTALLATION - 09/01/16 pjm
Improved cable
management.
Wires run through
the joints and are
more enclosed.
