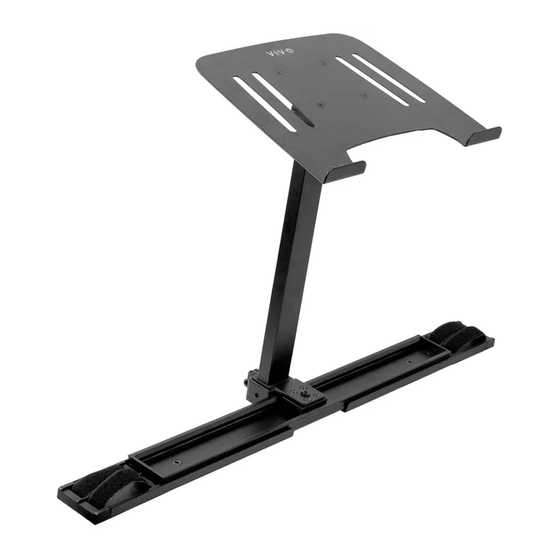

Universal Laptop Stand for Treadmill
Instruction Manual
SKU: STAND-TDML1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tdml1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TDML1
Summary of Contents for Vivo STAND-TDML1
- Page 1 Universal Laptop Stand for Treadmill Instruction Manual SKU: STAND-TDML1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tdml1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Remove the preinstalled thumbscrews and endcaps from Center Brace (B). Slide Adjustment Bracket (C) onto Center Brace (B) and lock it down in place with the knob. STEP 2 Insert the previously removed end caps into Crossbars (A), and slide the crossbars into Center Brace (B).
- Page 4 STEP 4 Loosen the knob on the side of Adjustment Bracket (C). Insert Center Pole (D) into Adjustment Bracket (C) and retighten the knob.
- Page 5 STEP 5 Assemble VESA Plate (F) to Laptop Tray (E) using M5x14mm Screws (S-A) with M5 Washers (S-B) and M5 Nuts (S-C). Tighten using Wrench (T-A) and a Phillips screwdriver.
- Page 6 STEP 6 Slide VESA Plate (F) onto Center Pole (D), and secure using a Phillips screwdriver. STEP 7 Loosen the thumbscrews on Center Brace (B) and extend Crossbars (A) to fit your treadmill. Retighten the the thumbscrews to secure the assembly in place. Remove adhesive backing from Pads (H) and place them on Laptop Tray (E).
- Page 7 STEP 8 Tightly fasten the mount to the treadmill’s handlebars using the straps on each side of Crossbars (A). Place your laptop on Laptop Tray (E) and fasten it down using Security Strap (G). STEP 9 Loosen the adjustment knob on top of Adjustment Bracket (C) to center the tray assembly. Once the assembly is in the desired location, retighten the knob.
- Page 8 : 1HR 8M help@vivo-us.com (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
