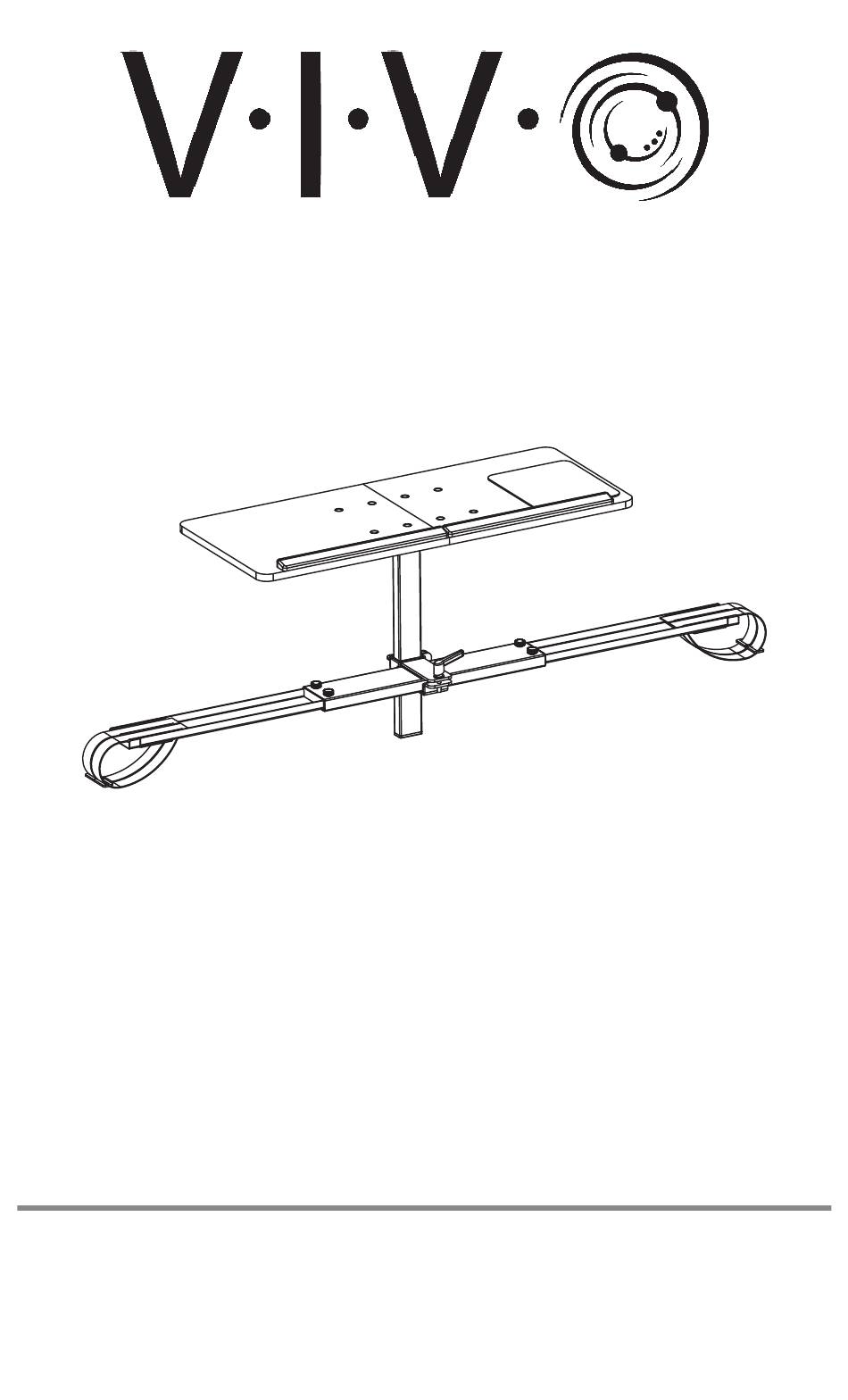

- Page 1 Height Adjustable Laptop Desk for Treadmill STAND-TDML4 Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x2) B (x1) C (x1) D (x1) Crossbar Center Brace Adjustment Center Pole Bracket E (x2) F (x1) G (x2) H (x1) Keyboard Tray Support Plate Wrist Pad Mouse Pad Included Hardware & Tools S-A (x1) S-B (x8) T-A (x1) M8x60mm Screw M5x10mm Screw... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Remove the Thumbscrews (B1) from Center Brace (B), and slide Adjustment Bracket (C) onto Center Brace . Remove the End Caps (B2) from Center Brace (B). STEP 2 Insert the previously removed End Caps (B2) into Crossbars (A), and slide the Crossbars into Center Brace (B). - Page 5 STEP 3 Reinsert the previously removed Thumbscrews (B1) back into Center Brace (B). STEP 4 Assemble Support Plate (F) to Center Pole (D) using M8x60mm Screw (S-A) and 6mm Allen Wrench (T-A).
- Page 6 STEP 5 Separate Barrel Nut (S-B1) and Screw (S-B2) from each M5x10mm Screw with Barrel Nut (S-B), using a Phillips screwdriver, as shown. S-B1 S-B2 Mount Keyboard Trays (E) to Support Plate (F) using Barrel Nuts (S-B1) and Screws (S-B2) and a Phillips screwdriver. S-B1 S-B2...
- Page 7 STEP 6 Remove the adhesive backing from Wrist Pads (G) and place them on the front edge of Keyboard Trays (E). STEP 7 Loosen the knob on the back of Adjustment Bracket (C). Then insert Center Pole (D) into Adjustment Bracket. Retighten knob on the back of Adjustment Bracket.
- Page 8 STEP 8 Follow the instructions below to attach the Tray Assembly to your treadmill. Loosen the thumbscrews on Center Brace (B). Adjust Crossbars (A) to fit your treadmill, then retighten thumbscrews on Center Brace. Ensure the underside padding makes contact with your treadmill arm for secure hold.
- Page 9 Adjustments Height Adjustment Loosen the knob on the back of the Adjustment Bracket (C), set Tray Assembly to desired height, then retighten knob. Lateral Adjustment Loosen the knob on the top of the Adjustment Bracket (C), slide the Tray Assembly to desired location, then retighten knob.
- Page 10 Adjustments - Cont’d Tray Tilt Adjustment Loosen Adjustment Screw at the top of the Center Pole (D) with a 6mm Allen Wrench (T-A). Adjust the Tray (E) to the desired position. While holding the Tray firmly in place, secure Tray by retightening the Adjustment Screw with 6mm Allen Wrench.
- Page 11 While holding the Tray (E) firmly in place, retighten the Adjustment Screw with a 6mm Allen Wrench (T-A). Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
