To mount the device to a DIN rail, do the following:
1.
2.
2.3.3

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RSG2200F can be equipped with panelDIN
rail adapters pre-installed on each side of the chassis. The adapters allow the device
to be attached to a panel using screws.
RUGGEDCOM RSG2200F
Installation Manual, 04/2022, C79000-G8976-1346-10
Align the adapters with the DIN rails and slide the device into place.
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3

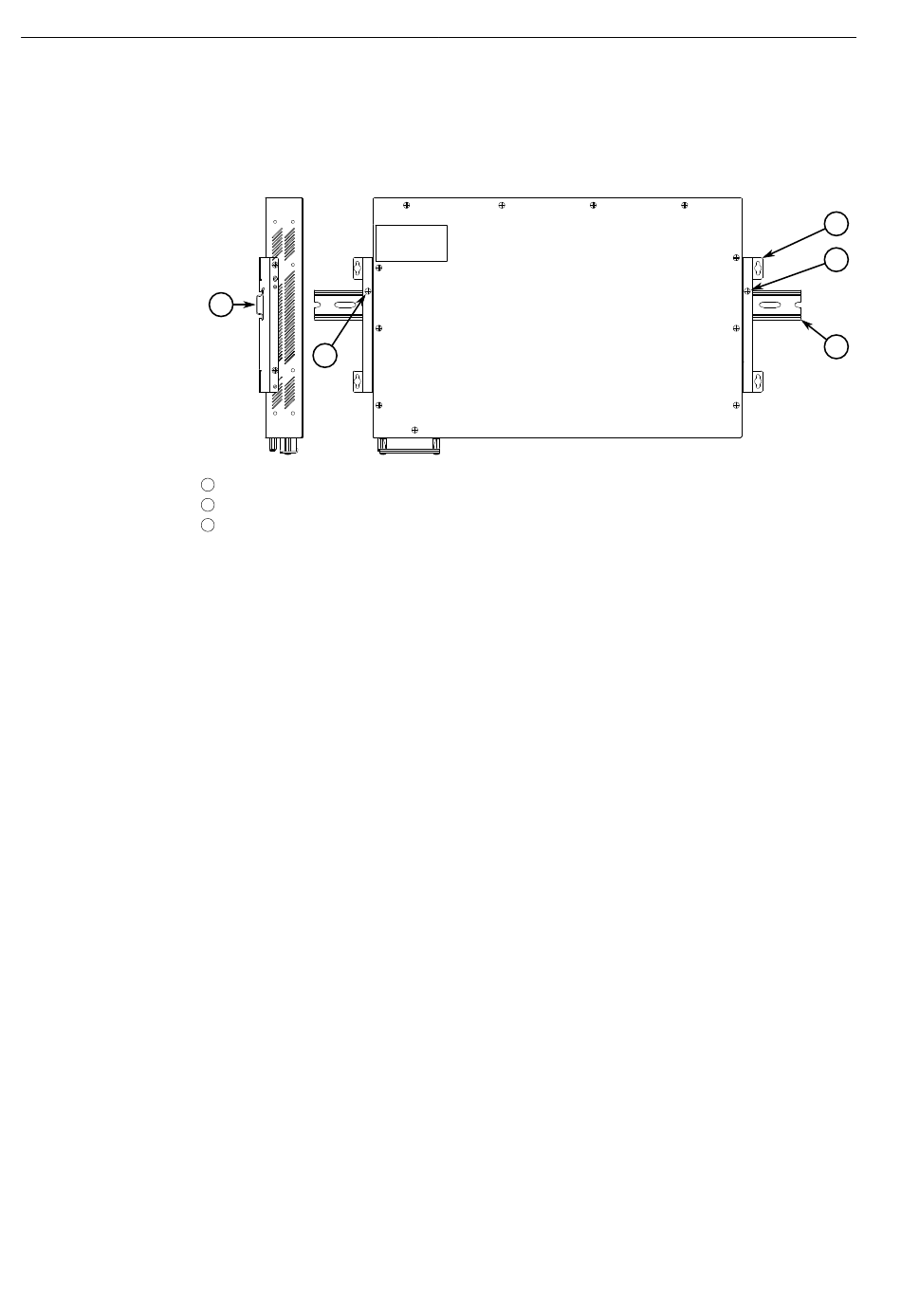

Figure 2.2 DIN Rail Mounting
Install one of the supplied screws on either side of the device to secure the
adapters to the DIN rails.
Installing the Device
2.3.3 Mounting the Device to a Panel
1
3
2
