Amrotec MIB-1 Series Service Manual

Hide thumbs Also See for MIB-1 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Service Manual V.1
MIB-1 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIB-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amrotec MIB-1 Series

Summary of Contents for Amrotec MIB-1 Series

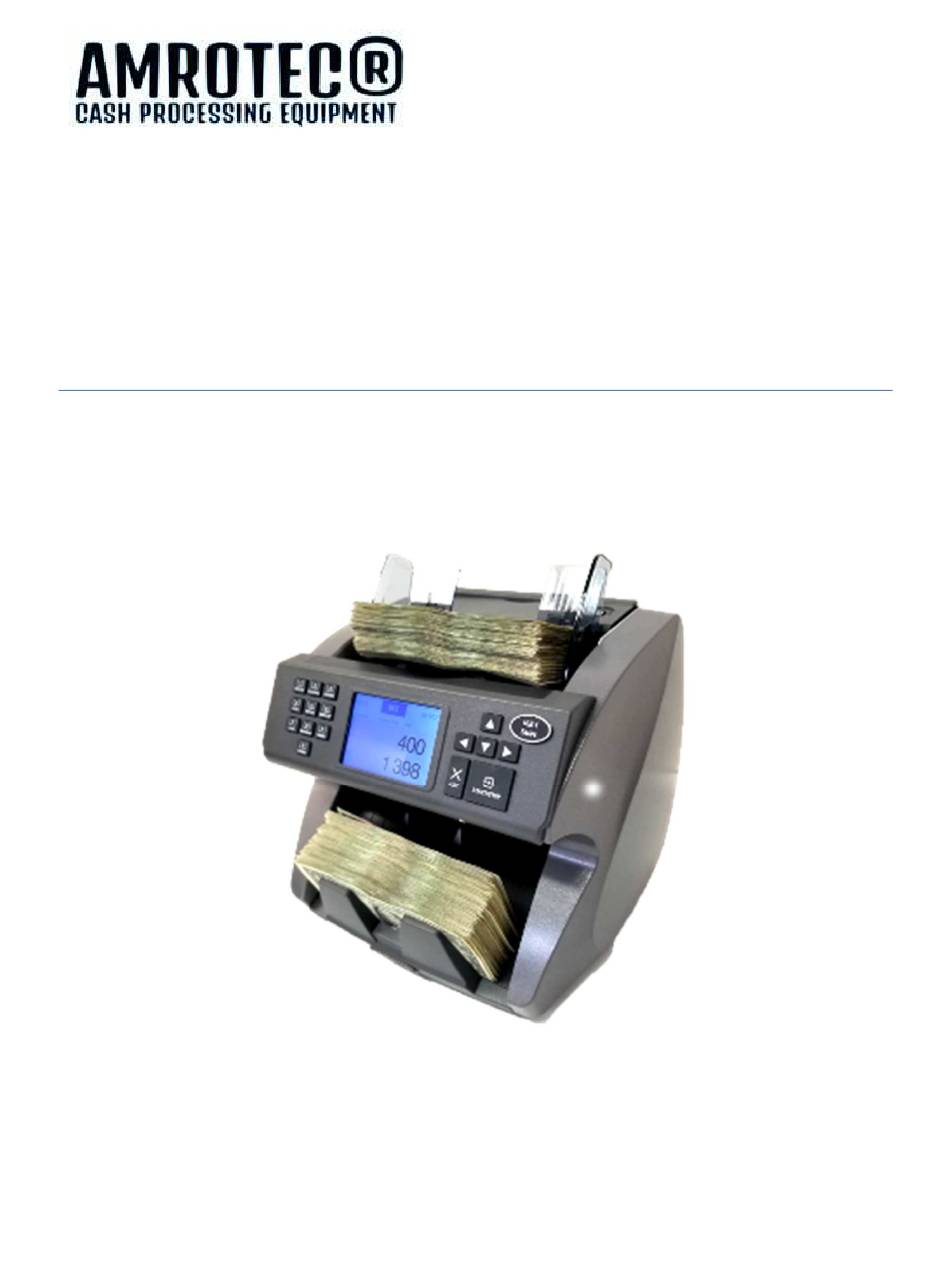

  • Page 1 Service Manual V.1 MIB-1 Series...
  • Page 2 Read this manual carefully before servicing the machine. Refer to machine disassembly and other videos posted on AMROTEC’s Dealer website. Please ask for Password to login to AMROTEC’s Dealer site. Only authorized personal can access to AMROTEC’s Dealer’s site and at AMROTEC’s own discretion.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PART 1 GENERAL DESCRIPTION ----------------------------------------------- ------------------------------------------------------------------ Control Panel PART 2 SPECIFICATION ------------------------------------------------------------ PART 3 COLLECT/CAPTURE DATA OF BANKNOTES & UPGRADE- 1. How to take sample data of banknotes -------------------------------- 2. Upgrade the Machine ------------------------------------------------------ PART 4 ERROR CODE & SOLUTIONS ----------------------------------------- 9-10 PART 5 CIS SENSORS &...

  • Page 4: Part 1 General Description

    PART ONE 1. GENERAL DESCRIPTION Item Number Part Name Stacker plate Stacker sensor (Emitter) Impeller (Stacker Wheel) LCD Display Hopper Sensor Hopper Note guide Handle Back label (Rear badge) Power cable Inlet Power switch Printer and RS232 interface USB port External Display port Thickness Adjust screw (Knob)

  • Page 5: Control Panel

    Control Panel Button 1-SPEED: The function is to select different available counting speeds Button 2-Currency: Show up the available currency names in your machine Button 3-BATCH: Show up the batch mode Button 4-ADD: Switch on/off ADD function Button 5-MODE: Choose COUNT (Piece count), SINGLE (Separation), MIX (Mixture of Denomination Count), SORT (Retail cash drawers Separation), FACE and ORIENT (Facing and Orientation of Banknotes) Button 6-DISPLAY: Click to show the counting details and break-down...

  • Page 6: Part 2 Specification

    PART TWO SPECIFICATION: Unit Dimensions: 28CM(W)*26CM(D)*27CM(H) 11”(W)*10.2”(D)*10.6”(H) Unit Package: N.Weight: 14.3lbs / 6.5Kgs G.Weight: 16.5lbs / 7.5Kgs Counting Speed: 800/1000/1200/1500notes/min for (COUNT) mode 800/1000/1200 notes/min for all Discriminating Modes: MIX, SORT, SINGLE, FACE, ORIENT Size of Countable notes: Minimum 110x60 mm, Maximum 185x90 mm Thickness 0.08~0.12 mm Feed system: Roller Friction System...

  • Page 7: How To Take Sample Data Of Banknotes

    (denomination / issue) is not being counted by MIB-1 for some reasons, such as bit worn out, please take sample data of that banknote and send to AMROTEC for investigation and possible software improvement. However, it should be noted that currency discriminating machine as MIB-1 is not capable of reading UNFIT banknotes, such as overly soiled or worn out, tape on the banknote or glued, overly creased or overly folded and so on.
  • Page 8 For Non-Recognized genuine Banknotes: (for software improvement) a) Change counting mode to [MIX] Mode for capturing data sample of genuine banknotes. Change speed to 1000 notes per minute. b) Once machine is in [MIX] mode, insert the unrecognize banknote onto the hopper of the machine to count or feed as you would count banknotes normally, but, feed the banknote in all 4 direction and one direction at a time as the photo illustrated at the below.

  • Page 9: Upgrade The Machine

    UPGRADE THE MIB-1 MACHINE 2） AMROTEC periodically release upgrade software for MIB-Series machine with improvement to recognition software or suspect detection capability. When a new software is released, our dealers will be notified via email and new software will be posted on our DEALER site (password protected and designed for our current dealers’...
  • Page 10 Step #2: Save the ZIP file to a USB thumb drive. Follow the steps below: a) Plug the USB Drive (with the update software in the root directory) to the USB port of the machine, and then turn on the machine. The machine will automatically enter the upgrade process.
  • Page 11 Step #3: Restore back to Factory “Default” Step This is important step for software upgrade completion successfully without error. Once machine is turned on and screen is back to Normal screen, please follow the steps below: Press MENU button. Enter into (1) Service Menu by pressing 1 key.

  • Page 12: Error Code & Solutions

    Solutions: Clean the dust with brush or soft cloth or remove the banknotes if in the bill path, and then restart the machine. Contact AMROTEC is problem continues to persist. Error code Trouble position...
  • Page 13 IR transmission area1 error IR transmission area2 error IR transmission area3 error IR transmission area4 error IR transmission area5 error IR transmission area6 error IR transmission area7 error IR transmission area8 error IR reflect area 1 error IR reflect area 2 error IR reflect area 3 error IR reflect area 4 error IR reflect area 5 error...

  • Page 14: Cis Sensors & Detection Level Adjustment

    PART FIVE 5. CIS SENSORS AND DETECTION LEVEL ADJUSTMENT CIS sensor Calibration Contact AMROTEC to purchase CIS Calibration sheet. CIS Calibration sheet • How to insert CIS calibration sheet: (See photo illustration below) a) Open the rear backdoor b) Open the bill path (press Tab towards below) and clear CIS sensor with soft cloth.

  • Page 15: Dual Us Software And Detection Level Adjustment

    e) After few seconds, screen will show “Adjust succeed 1” means process is successful. Power off the machine. f) Remove / Take out the CIS calibration paper from bill path, close bill path & Rear door securely (will hear click assuming rear cover is closed). g) Process is completed.
  • Page 16 In case it is required to adjust certain detection level for any of the above currency system and levels and AMROTEC authorized our dealers to do so, please follow the below instructions: a) Press [MENU] key on the control panel > Press #1 key to enter to (1) Service Menu b) Input password:2552 when prompted.

  • Page 17: Part 6 Mechanical Adjustment

    PART SIX 6. MECHANICAL ADJUSTMENT 1. The position of the friction roller & feed roller ： a) Move the friction roller to keep H=H1. b) Check if the friction roller can rotate smoothly without wobbling, if not, readjust it according to above steps. 2.

  • Page 18: Mechanical Parts List & Diagram

    PART SEVEN 7. MECHANICAL PARTS LIST AND DIAGRAM A) Explosive View Item Number Part Name Note/ Spare parts NO. Handle Back and middle cover plate Lower transmission Assembly Right cover coded disc E-13 Right side plate Impeller motor Power drive board E-20 Hopper guider Stacker plate...

  • Page 19: Bill Separating Mechanism

    B) Bill Separating Mechanism Item Number Part Name Note/ Spare parts NO. Bracket for pressing roller Pressing Spring Pop-up Spring Head bracket Fixture for passive roller assembly Adjusting knob for Feeding gap Fixing Shaft for reverse friction rollers Bracket for passive roller Shaft for passive roller Sleeve for one-way bearing B-10...

  • Page 20: Lower Sensor Assembly

    C) Lower Sensor Assembly Item Number Part Name Note/ Spare parts NO. Image acquisition sensor left fixed frame Image acquisition sensor (for Dual CIS) Infrared tube (for One CIS) magnetic stripe Left retractor Left torsion spring Opening and closing wrench Right torsion spring Right retractor Image acquisition sensor right fixed...

  • Page 21: Feeding Platform & Control Panel Assy

    D) Feeding Platform + Control Panel Assembly Item Number Part Name Note/ Spare parts NO. Bill-feeding Platform Control Panel Fixture for LCD Display LCD Display Left display key Screen cover Hopper sensor assembly Right display key...

  • Page 22: Main Frame Assy

    E) Main Frame Assembly Item Number Part Name Note/ Spare parts NO. Main Processing PCB Bill delivery Rollers Separating Rollers Image acquisition sensor left fixed frame Rear Backing-up Plate Image acquisition sensor bracket Rear Supporting Shaft Fixing block Image acquisition sensor right fixed frame 40-teeth synchronizing Wheel E-10 20-teeth synchronizing Wheel...

  • Page 23: Hopper Guide Assy

    F) Hopper Guide Assembly Item Number Part Name Note/ Spare parts NO. Front Bill-Stopper Part Left Extended hopper guide Right Extended hopper guide Fixture for extender hopper Left Moving Bar Right Moving Bar Gearing wheel G) Hopper Assembly Item Number Part Name Note/ Spare parts NO.
