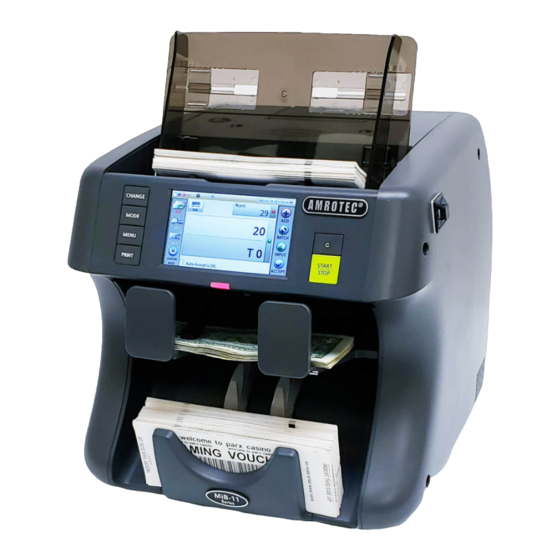

Amrotec MiB-11V Operator's Handbook

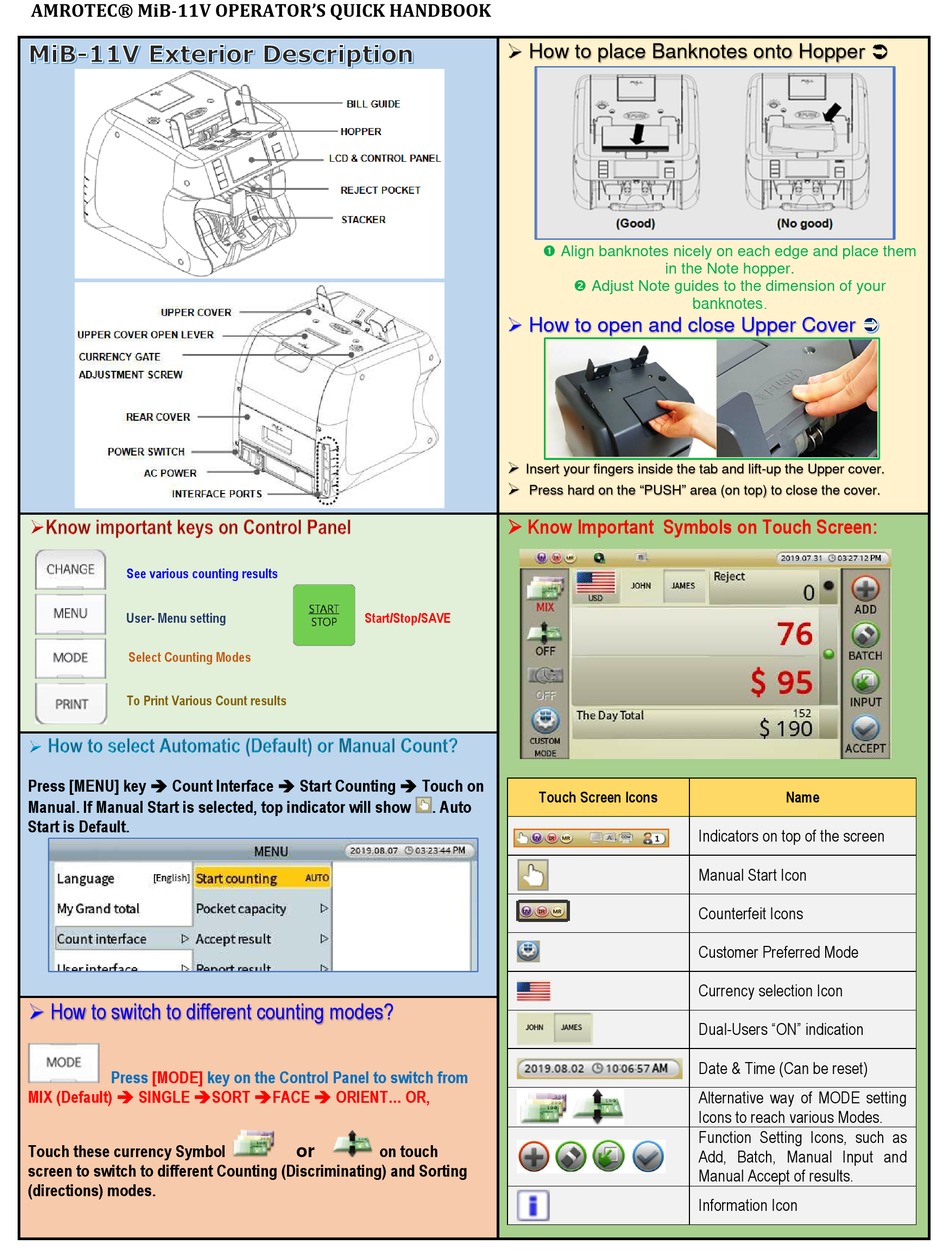

AMROTEC® MiB-11V OPERATOR'S QUICK HANDBOOK
See various counting results
User- Menu setting
Select Counting Modes
To Print Various Count results
Press [MENU] key  Count Interface  Start Counting  Touch on
Manual. If Manual Start is selected, top indicator will show
Start is Default.
 How to switch to different counting modes?
Press [MODE] key on the Control Panel to switch from
MIX (Default)  SINGLE SORT FACE  ORIENT... OR,
Touch these currency Symbol
screen to switch to different Counting (Discriminating) and Sorting
(directions) modes.
Start/Stop/SAVE
. Auto
on touch
or
 How to place Banknotes onto Hopper 
 Align banknotes nicely on each edge and place them
in the Note hopper.
 Adjust Note guides to the dimension of your
 How to open and close Upper Cover

Insert your fingers inside the tab and lift-up the Upper cover.

Press hard on the "PUSH" area (on top) to close the cover.
 Know Important Symbols on Touch Screen:
Touch Screen Icons
banknotes.
Name
Indicators on top of the screen
Manual Start Icon
Counterfeit Icons
Customer Preferred Mode
Currency selection Icon
Dual-Users "ON" indication
Date & Time (Can be reset)
Alternative way of MODE setting
Icons to reach various Modes.
Function Setting Icons, such as
Add, Batch, Manual Input and
Manual Accept of results.
Information Icon
