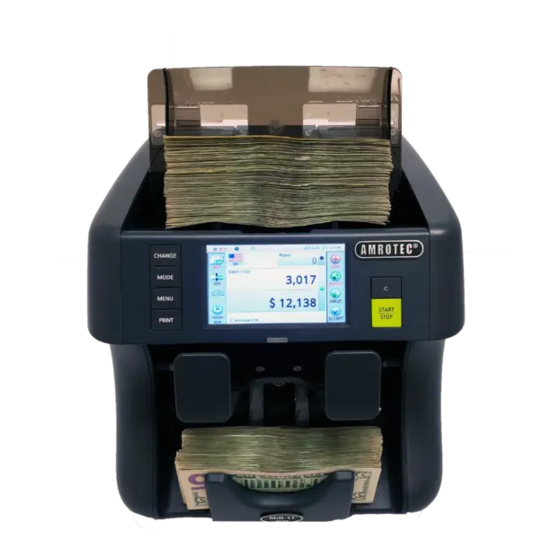

- Page 1 MIB-11F Fitness Currency Discriminator Operator’s Manual Version 1.0...
- Page 2 This guide covers the installation, operation and troubleshooting of MIB-11F Fitness Currency Discriminating Counter. We recommend reading this guide thoroughly before operating the Currency Discriminator. Then, as you become more familiar with MIB-11F, use it as a reference guide to look up information when you need it. - 1 -...
- Page 3 Please read the safety precautions below before operating MIB-11F Currency Discriminator Counter. These safety precautions guideline must be observed to avoid any potential hazards that could resulted in personal injuries or damage to MIB-11F Currency Discriminator Counter. Electrical Safety Information Always be careful in operating the Machine.
- Page 4 MIB-11F FITNESS SORTER Precaution 1. Never push any objects of any kind onto the Machine side covers or insert any object through any opening of the Machine. 2. Do not operate your Machine in any wet location, or outdoors or if you are wet.
- Page 5 MIB-11F FITNESS SORTER Hazardous Safety Notes Your Machine and related accessories included in the original packaging are designed and tested to meet strict safety requirements. Please read the following instructions carefully before operating your Machine and refer to them as needed to ensure the continued safe operation of your Machine.
- Page 6 MIB-11F FITNESS SORTER FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 7: Table Of Contents
MIB-11F FITNESS SORTER Table of contents Chapter 1 INSTALLATION ------------------------------------------------------------------------ 8 Packing List/ Work Area/ Handing/ Connection -------------------------------------------- 8 Interface --------------------------------------------------------------------------------------------- 9 Chapter 2 OVERALL DESCRIPTIONS -------------------------------------------------------- 10 Description of Parts ----------------------------------------------------------------- 10 Description of Control -------------------------------------------------------------- 11 Over view of Control Panel ---------------------------------------------------------------------- 11... - Page 8 MIB-11F FITNESS SORTER Chapter 5 SET FUNCTION AND PARAMETERS ------------------------------------------ 34 USER MENU --------------------------------------------------------------------------- 34 Language -------------------------------------------------------------------------------------------- 35 My Grand Total ------------------------------------------------------------------------------------- 35 Count Interface ------------------------------------------------------------------------------------- 35 User Interface --------------------------------------------------------------------------------------- 35 Information ------------------------------------------------------------------------------------------ 35 Factory Default settings -------------------------------------------------------------------------- 36 ADMIN MENU --------------------------------------------------------------------------- 36...
-
Page 9: Installation
MIB-11F FITNESS SORTER INSTALLATION Packing List Part Name Remark MACHINE 1 Unit AC Power Cord 1 pc. User Manual 1 pc. Sensor Cleaning Cloth 1 pc. Work Area To help ensure trouble-free operation of the Machine, it is strongly recommended that you place the Machine on a flat, stable surface on your desktop or workstation. -
Page 10: Interface
MIB-11F FITNESS SORTER Interface [ Micro SD] For optional function [ USB Type A] Machine firmware can be upgraded with USB Memory Stick (Flash drive) (Preferable method). [ LAN Port] 1. The counting results can be sent to PC though LAN. -
Page 11: Overall Descriptions
MIB-11F FITNESS SORTER OVERALL DESCRIPTION 2-1 Description of the Parts [FRONT VIEW] BILL GUIDE HOPPER LCD & CONTROL PANEL REJECT POCKET STACKER [REAR VIEW] UPPER COVER UPPER COVER OPEN LEVER CURRENCY GATE ADJUSTMENT SCREW REAR COVER POWER SWITCH AC POWER... -
Page 12: Description Of Control
MIB-11F FITNESS SORTER 2-2 Description of Control Overview of Control panel KEYS / Buttons Description - Manually START (when manual starting is set) - Emergency STOP & START while counting. - Save or Set the Mode - This key means ‘OK’ and ‘YES.’... -
Page 13: Over View Of Touch Screen
MIB-11F FITNESS SORTER Overview of Touch Screen (an Example with EURO currency) [Before counting] [After counting] - 12 -... - Page 14 MIB-11F FITNESS SORTER Name Description Indicators To show Auto or Manual start. Auto start is default. Icon will Auto or Manual Icon appear if Manual start is activated. Counterfeit Icons These icons indicate which counterfeit detectors are active (UV/ IR/ MR detectors). By Default, all CF detectors are on.
-
Page 15: Preparation Of Operation
MIB-11F FITNESS SORTER PREPARATION OF OPERATION When Upper or Rear Cover is opened, Machine will display alarm message How to open and close ‘Upper Cover’ and ‘Rear Cover / Door’ [Upper Cover] Gently insert your fingers inside the tab and lift-up the Upper cover. Press hard on the “PUSH”... -
Page 16: How To Place Notes Onto The Hopper
MIB-11F FITNESS SORTER How to place banknotes onto the Hopper It is very important to place the banknotes on the hopper correctly and towards the end because recognition performance of the banknotes is highly affected by the arrangement of banknotes in a stack. Number of rejected banknotes can increase when banknotes are not placed towards the end and not aligned and arranged properly. -
Page 17: Counting
MIB-11F FITNESS SORTER Counting In AUTO mode, MACHINE starts to count the bill automatically as it detects the existence of the banknotes on the hopper. In MANUAL mode, the machine will start to count the banknotes only if the banknotes are placed onto the hopper and ‘START’... -
Page 18: Basic Operation
MIB-11F FITNESS SORTER BASIC OPERATION 4-1 Procedure of Operation 4.1.1. Currency Selection User can set up the currency by selecting the national flag. (ex> ‘AUTO’ means that MACHINE will set up the first detected currency automatically. 4.1.2. Mode Selection Icons ‘MIX’: To counts and denominates mixture denomination of banknotes for... -
Page 19: Description Of Each Counting Modes
[MIX[: In MIX mode, MIB-11F will denominate mixture denomination of banknotes for individual value, quantity and total quantity and value [SINGLE]: In SINGLE mode, MIB-11F machine will separate stranger of banknotes that is not matching the first banknote recognized. [SINGLE -Denom.]: In this mode, User can select a particular denomination to be recognize and deliver to Stacker pocket and deliver rest of the denomination of banknotes to Reject Pocket. - Page 20 MIB-11F FITNESS SORTER Direction (Banknotes must be all faced-up for Orientation to be performed). Esc to return to Main Screen. [Face]: Machine processes single or mixture denomination of banknotes and deliver first deteced Face of that denomination or mixture denominations to main stacker and deliver the other Face or other denominations of banknotes or suspect banknotes to Reject pocket.
- Page 21 MIB-11F FITNESS SORTER ‘FITNESS’ : To select the fitness parameter (ATM / FIT1 / FIT2) ATM owners, CIT companies or banks who want Using this FITNESS mode, to recycle monies within branches and need to sort out UNFIT banknotes from their deposits for ATM cassettes replenishment or prior sending...
-
Page 22: Function Selection
MIB-11F FITNESS SORTER 4.1.3. Function Selection Scroll down ‘ADD’ To select ADD function. In general situation, counting result initialize when pocket empty, but if ADD button was activated, counting result is displayed by automatically added from the previous counting result even if pocket is empty. - Page 23 MIB-11F FITNESS SORTER Batch Off: By default, Batch is set to Off. Touch on Batch Off to turn off any batching settings that has been set by users. Pre-set Batch: For user’s quick access and convenience, Batch function provides a pre-set qty of 5, 10, 20, 25, 50, ,100, 150 and 200.
- Page 24 MIB-11F FITNESS SORTER Denomination Batch (DB) Setting Menu Keypad to enter a batch number The status for stacker When FITNESS mode is on, user can allocate the pocket for the fit notes. ‘FIT On’ : Fit notes will deliver to the stacker pocket.
- Page 25 MIB-11F FITNESS SORTER MANUAL ‘INPUT’ [INPUT] function is designed for trained operator to add quantity and value of non- recognize genuine banknotes (those are rejected to Reject Pocket) to running total during a count operation. User can add the quantity and dollar amount of uncounted banknotes or U.S coins manually for deposit verification from a customer’s deposit.
-
Page 26: Counting Results Confirmation
Grand Total means, the accumulation of counted banknotes that user accepted. Basically, if you touch [ACCEPT] icon after a counting is completed, the result will be added to ‘GRAND TOTAL’. MIB-11F machine can show ‘Total,’ ‘The Day Total’, and ‘Grand Total’. User can access Grand Total Chapter 5-2). -
Page 27: Reject Reasons
MIB-11F FITNESS SORTER 4.1.6 Reject Reasons Display on Screen Meaning NO I.D The machine failed to identify the denomination. NO READ The note was not successfully read OVER RUN The next note was fed too close to the first one. -
Page 28: Special Mode And Functions
MIB-11F FITNESS SORTER 4-2 Special Mode & Functions ■ Mode FITNESS ‘FITNESS Function’ discriminates circulated bank notes between FIT or UNFIT for circulation by following USA Federal Reserve Bank Guideline. Therefore, UNFIT banknotes which are stained, have holes and graffiti etc. are deliver to the designated pocket. There are 8 parameter of items under Fitness standard discriminating between FIT and UNFIT coinciding with pre-set criteria according to USA Federal Reserve Bank guideline (2008). -
Page 29: Ocr Mode
OCR data. ■ SNC (Serial Number Comparison) (Optional feature) MIB-11F machine can read the serial number and can identify both left and right serial numbers appear on passing banknotes. In case the serial numbers are not match each other, the banknote then deliver to reject pocket and indicated as “SNC ERROR”... -
Page 30: User Define Mode
MIB-11F FITNESS SORTER ■ “CUSTOM” or “User Define” Modes ( How to set User Define Mode) “CUSTOM” mode also known as ‘User Define Mode’ in this User manual and it means that user can set up maximum 16 modes for his/her usual or specific purpose. - Page 31 MIB-11F FITNESS SORTER To delete the previous User Mode, touch icon and touch 3. To delete all preset modes, touch the icon. *** If user wishes to exit from “CUSTOM” or ‘User define mode’, please press ‘USER OFF’ icon. *** User can export these ‘User define mode’ to ‘USB Stick’ and import to other machines.
-
Page 32: Add Mode
MIB-11F FITNESS SORTER ■ ADD User can setting ADD TYPE by pressing ‘ADD’ icon. 1. ADD When ADD option is selected, machine is prepared to add the next count amount even when the Stacker and Hopper are empty. Touch [ACCEPT] Icon to save that count results to The Day Total and Grand Total. -
Page 33: Bag Mode
MIB-11F FITNESS SORTER 3. BAG Usually Cash-in-Transit (CIT) companies use ‘secure plastic packaging bag’ to pick up their customers’ deposits and such bags labeled with unique Bar-code number for identification. If BAG option is selected, CIT companies can count each customer’s deposit with Bag number (Bar-code), cashier number etc. -
Page 34: Complete Mode
MIB-11F FITNESS SORTER ① ‘Accept’ icon: User can use this option when user wants to strap by 100 banknotes. After counting of Bag, user should leave remaining unstrapped banknotes in the stacker and start counting the Bag. During counting of 2 Bag, machine will stop when a strap of 100 banknotes count is completed. -
Page 35: Set Function And Parameters
MIB-11F FITNESS SORTER SET FUNCTION AND PARAMETERS 5-1 USER MENU User can alter each function and parameter. Pushing [MENU] key, user can move to “USER MENU” and its details by touching the menu. MENU Sub Menu Description Language Set a menu language My Grand total Shows The Day Total &... -
Page 36: Language
5. Beep: user can turn on/off warning and button beep 6. Power saving: can select Waiting time and Saving type Information 1. About MIB-11F machine: shows program version and provided currencies 2. A/S call number: After Service call number - 35 -... -
Page 37: Factory Default Settings
MIB-11F FITNESS SORTER The Factory default settings are as below: Function Default Value Approx. 1200 (With all functions) Speed (NPM) MAX. 1500 (Piece count) [Count interface] Starting counting Auto Stacker Pocket Pocket capacity Reject Pocket Auto-accept Accept result After accept... -
Page 38: Loading Default
MIB-11F FITNESS SORTER MENU SUB MENU Description Loading default Change password Station ID Set the ID number of machine Ethernet Set up Ethernet FTP Information Set up FTP information Machine setting Black list Manage the black list Printer Set up Printer... -
Page 39: Value Setting
6. Reject image display User setting Dual Users: 2 users can use MIB-11F machine at the same time. Setting 2 Users (Dual-Users), the initial screen will show 1. User can select one of Concurrent User and can set modes and functions individualy. -
Page 40: Grand Total
MIB-11F FITNESS SORTER Printing Port #1,#2)) and Customer Display. (ADMIN MENU-Machine setting-Customer display) If Conccurent User was set, the allocated Print Port and Customer Display will be shown in upper indicator as Grand Total 1. Auto clear: Administrator can set manual or auto Grand total clear. - Page 41 MIB-11F FITNESS SORTER [How to set] 1) Select Currency & Denimination. 2) Move each circle to set the levels. 3) Press and save the level. The lower level means the less sensitive. If the machine recognizes CF note as real notes, increase the level.
-
Page 42: Troubleshooting
MIB-11F FITNESS SORTER TROUBLESHOOTING This chapter shows how to solve errors when the messages are on the operational window. Error on counting It shows following figure [MACHINE STAUS] when any error occurs on counting Error Messages Action to be taken 1 Jam 1~3, open upper cover and remove the banknotes in the path. -
Page 43: Maintenance
MAINTENANCE 1. Sensor cleaning. MiB-11F Machine is designed with various sensors to detect the malfunction of the Machine and show the status of the banknotes in the Machine and to recognize the denominations of the banknotes. The sensors are very delicate and if they are not cleaned correctly and regularly, this may have negative effect on the performance of the Machine as well as cause the Machine to malfunction. -
Page 44: Roller Cleaning
MIB-11F FITNESS SORTER 2) Clean all sensors Upper Cover *Sensors Reject Sensor Stacker Sensor RP Sensors(4, 5) 2. Roller Cleaning In case of feed roller, wipe with slightly dampened cloth with alcohol. While rotating one side of the roller manualy, stick the cloth into the other side of the roller. -
Page 45: Dust Tray Cleaning
MIB-11F FITNESS SORTER 3. Dust tray Cleaning Machine has “Dust tray” at the locations on below figure. it collects dust when the machine is running. How to clean [1] Open the rear cover [2] Unlock the door link Unlock [3] Take the tray out & clean... -
Page 46: Specification
MIB-11F FITNESS SORTER SPECIFICATION Item Unit Specification Image Sensor Dual DUAL – CIS (Image Processing Sensor) Counterfeit Detection MR-Array, IR-Array, Multi-UV-Channels Fitness Detector Thickness and Tape Detector mechanism Hopper capacity Notes MAX. 500 (optional 1,000) Stacker capacity Notes 200 [Max.300]... -
Page 47: Limited Warranty, Disclaimer, Service
America. This warranty is valid only in the United States of America. Service: To obtain out of warranty repair or service on your MIB-11F Fitness Currency Discriminator Counter, contact your sales representative or your Service Provider you have signed maintenance contract with. - Page 48 MIB-11F FITNESS SORTER WWW.AMROTEC.COM Printed in South Korea Rev. July 1, 2020 All Rights are Reserved. Copyright 2020© AMROTEC® - 47 -...
Need help?
Do you have a question about the MIB-11F and is the answer not in the manual?
Questions and answers

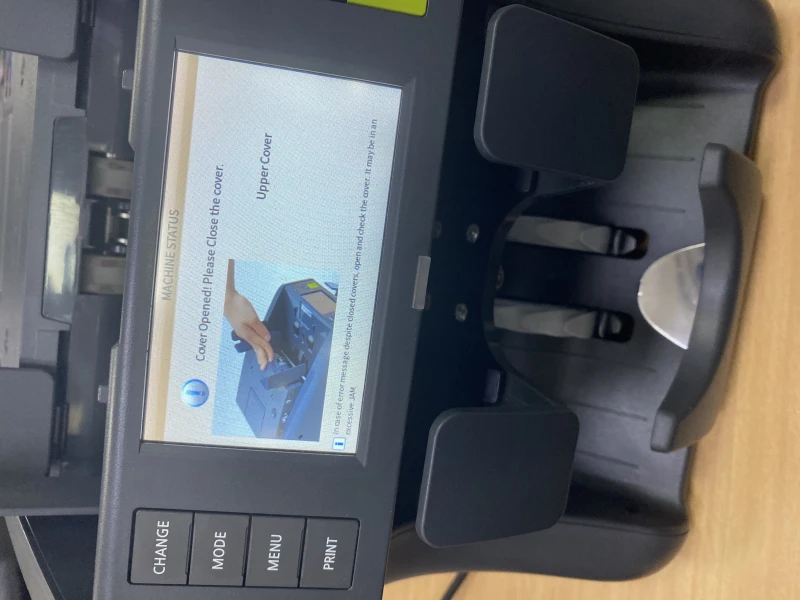

Please My machine shows upper cover opened close cover but I have hardly followed and and has press on the C button but still showing the error message
