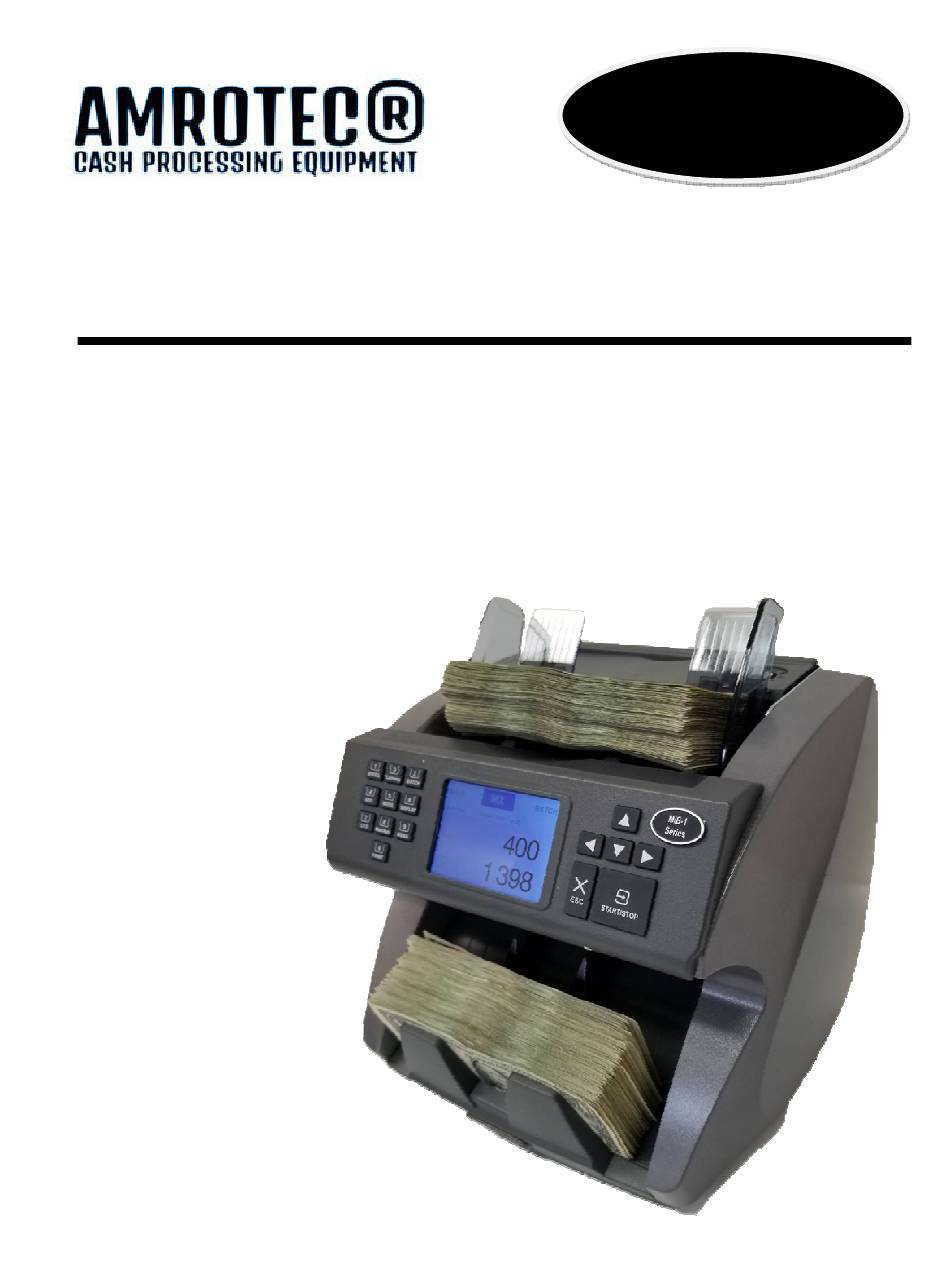

- Page 1 MiB-1 Single Pocket - Currency Discriminating Counter w/ Multi-Currencies in a Single-Pass Operator’s Manual V.10...
-
Page 2: Table Of Contents
Current Time Setting ..............................Setting DB (Denomination Batch) ......................... 22 Stacker Capacity ............................22 MIB-1 Chapter 5. Maintaining ....................23 Open Bill Path ..............................24 Cleaning (Exterior, Bill Path) of MIB-1 ....................24 – 25 Error Codes…………………………………………………………………………………………………….26 Appendix. Specification ........................27 Limited Warranty, Disclaimer, Service……………………………………………………………28... -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction Introduction ................................. 1 Compliance Statement ............................1 Abbreviations and Acronyms..........................2 Safety Precaution………………………………………………………………………………………………..2... -
Page 4: Compliance Statement
Introduction This guide covers the installation, operation and troubleshooting of Currency Counter. MIB-1 We recommend reading this guide thoroughly before operating the Currency Counter. Then, as you become more familiar with use it as a reference guide to look up information when you need MIB-1, ... -
Page 5: Safety Precautions
Safety Precautions Please read the safety precautions below before operating Currency Counter device. MIB-1 These safety precautions guideline must be observed to avoid any potential hazards that could resulted in personal injuries or damage to Currency Counter. MIB-1 Electrical Safety! To avoid the risk of electrical shock, fire, or damage to the Currency Counter: ... -
Page 6: Chapter 2. Overview Of Mib-1
Overview of MIB-1 Chapter 2. MIB-1 at a Glance ..........................Overview of Control Panel ........................Overview of LCD Display ........................Page | 3... -
Page 7: Mib-1 At A Glance
MIB-1 at a Glance Note Guide Hopper 10-Key Pad 3.5” TFT LCD Stacker Power Power Switch Socke Page | 4... -
Page 8: Overview Of Control Panel
Overview of Control Panel 10-Keys Pad and START/STOP 3.5” TFT LCD respective Functions Navigation / / ESC keys Display Browsing Keys Overview of LCD Display Counting Speed Addition Mode Counting Modes Currency Name Variable Batch or Auto start / Manual start Denomination (DB) Batch Piece (Qty) Count... -
Page 9: Chapter 3. Operating Mib-1
MIB-1 Chapter 3. Operating Power On / Off ..............................7 Placing Banknotes ............................... 7 Counting Speed …………………………………………………………………………………………………8 Selecting Currency, Auto and Multi-Currency ....................8 Single Currency……..........................8 - 9 Auto Currency…………………........................Multi-Currency ............................. 9 Batch Counting ............................9 - 10 Denomination Batch Setting........................10 - 11 Add Mode……………............................11... -
Page 10: Power On / Off
Power On / Off To power on MIB-1 Plug in the A/C power cord to the Power Socket. Press the Power Switch button (I/O) on the rear side of MIB-1. After System initialization stage is completed, MIB-1 enters into main display screen and ready. -
Page 11: Counting Speed
Counting Speed device is defaulted from factory to count circulated banknotes at high-speed (about 1000 MIB-1 banknotes per minute), however, software allows user to adjust counting speed to count banknotes at even higher or lower speed if necessary. To adjust the counting speed in various Discriminating Modes (MIX / SINGLE / SORT etc) and 'COUNT' mode: ... -
Page 12: Auto Currency
Batch Counting The MIB-1 device allows users to set counting of banknotes by a batch number from 1 - 200 (quantity) or turn it off. Pre-set batch can apply to all counting modes except SINGLE or SORT mode as described below. -
Page 13: Denomination Batch Setting (Db)
SINGLE or SORT mode (See below and Page 22 in additional). Therefore, MIB-1 provides denomination batching options for operators and operators can activate or deactivate [DB] in SINGLE mode or SORT mode by pressing key. -
Page 14: Add Mode
Auto / Manual Start Mode To operate the MIB-1 device with Automatic start or manual start, follow the steps below: Press the key to switch between Auto/Manual Start Mode. The LCD shows the actual status of the mode on the very right of the second column. -
Page 15: Counterfeit Detection (Cfd)
Counterfeit Detection (CFD) MIB-1 Currency Discriminator device is equipped with various suspect detectors, such as Magnetic (MR / Magnetor-resistive) UV and IR detector to be able to detect suspect banknotes. -
Page 16: Discrimination And Count Modes
Discriminating and COUNT Modes MIB-1 Currency Counter is equipped with 3 main discrimination counting modes: MIX, SINGLE and SORT modes. Further, the device provides additional sorting modes to align single denomination of banknotes with having same face or same direction. All discriminating modes change in sequence every time... -
Page 17: Counting Operation In Various Modes
Manual Entry Function: Due to MIB-1 having a single stacker pocket, it is equipped with a function to allow operators to input value (manually, using numeric keys) for genuine, but, non-read bills that is not recognized by the sensor for various reasons and add to runing total of stack. During processing of any of the... - Page 18 When MIB-1 stops at a banknote, press [ESC] key. A Denomination list screen will appear and PCS (Qty) area on the first denomination on the list will be highlighted. Use navigation 4 arrow keys [►◄▲▼] on the right-side control panel to select the PCS area of the desire denomination to have...
- Page 19 In such case, remove all banknotes from the stacker and place them on your desk by denomination. MIB-1 device will continue to process rest of the denomination of banknotes in such fashion. During counting, display will show PCs and Total value of the counting banknotes for that currency-type.
- Page 20 MIB-1 will process banknotes which are in same face (Portrait) as the very first bill counted and will stop with an error message saying DENOMINATION ERROR / STRANGER if device sees a banknote in wrong face (Portrait). Operator has the option to correct the face of that banknote to same face as processed banknotes and placed it to note hopper to recount.
-
Page 21: Counting Results & Display Content
1200 notes per minute for widely circulated banknotes. During and once counting is completed, MIB-1 displays total counted quantity on the display screen. If [ADD] function is turned on, the counted quantity for the current stack is added to the running total and save into device memory. -
Page 22: Printing The Summary
“SNBC” model of Thermal or Dot-Matrix printer using RS232 serial port at the rear and to print current counting result for currency-type as selected. Connect your Dot-Matrix or Thermal Printer with the MIB-1 device. After counting is completed, press the key. -
Page 23: Chapter 4. Setting Mib-1
MIB-1 Chapter 4. Setting Function and Environmental Settings ....................... 21 Service Menu ..............................21 Version Information ............................21 Current Time Setting ..............................Setting DB (Denomination Batch) ........................ 22 Stacker Capacity ............................22 Page | 20... -
Page 24: Function And Environmental Settings
. Service Menu Password (XXXX) Enter into Setting Mode Version Information: Enter . Version Information to view software and hardware version of operator’s MIB-1. Password is not required. Once in this VERSION screen, device will display device Hardware (HW) -
Page 25: Current Time Setting
Setting DB (Denomination Batch) MIB-1 device allows operator to set specific batch number for each banknote denomination from default setting of 100 qty for every denomination and apply only to SINGLE and SORT counting mode. -
Page 26: Chapter 5. Maintaining Mib-1
MIB-1 Chapter 5. Maintaining Open Bill Transport Path........................... 24 Cleaning (Exterior, Bill Path) of MIB-1 ....................24 – 25 Error Codes…………………………………………………………………………………………………….26 Appendix. Specification ........................27 Limited Warranty, Disclaimer, Service……………………………………………………………………………………………….28 Page | 23... -
Page 27: Open Bill Path
LCD screen during a counting operation and device is halted. First, open the rear bill path cover during cleaning and maintaining of the MIB-1 device while power is Off. Press the Green tab (labeled as “Press”) and push it down to have access to bill path. - Page 28 or, prepare a mixture of a gentle kitchen-use detergent (one that does not contain abrasive powder or strong chemicals such as acid or alkaline). Mix with 5 cup water with 1 cup detergent. Soak the sponge with the mixture of diluted detergent for couple of minutes. ...
-
Page 29: Error Codes
Error Codes ERROR CODE REASONS UV sensor error (Possible suspect banknote) Bill double error (Passing banknote thickness equal to 2 banknotes Chain notes error (multiple banknotes attempted to feed Half notes error (Passing banknote is shorter in length) Bill CIS sensor signal lose E11/18 Denomination error (Mismatch denomination) Bill denomination error (Mismatch denomination) -
Page 30: Appendix. Specification
Appendix. Specification Feed System Roller friction system IR, MR-array (MT), Dual MG head, UV Counterfeit Detection CIS (Contact Image Sensor) sensor Denominating sensor Count Mode (Piece): 800, 1000, 1200, 1500 notes/minute Counting Speed Discriminating Mode: 800, 1000, 1200 notes/minute USD and Canadian currency (Standard). -
Page 31: Limited Warranty, Disclaimer, Service
Warranty remedies limited to only parts repair or replacement of this equipment. Manufacturer, distributor, dealer, or sales representatives of MIB-1 Currency Counter shall not be liable for any incidental or consequential damages for breach of any express or limited warranty on this equipment or any part thereof. - Page 32 WWW.AMROTEC.COM June 10, 2020 All Rights are Reserved. Copyright 2020© AMROTEC® Printed in China. Page | 29...
