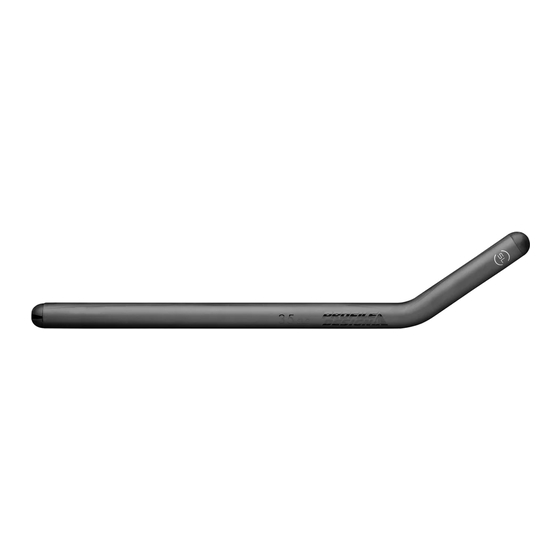

- Page 1 Extensions AEROBAR EXTENSIONS REVISION 01-05-25-2022...
-
Page 2: Tools And Materials Required
Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's warranty policy. If you are not familiar with installation of Aerobars or their accessories, please seek the assistance of your local Profile design dealer by logging on to www.profile-design.com and using "dealer search"... - Page 3 Extensions Your Extension kit should contain: • Two (2) extensions (Carbon or Aluminum) • Two (2) grip end bar plugs • Two (2) cable exit bar plugs Optional accessories compatible with these extensions: • Aeria II Series Brackets • Sonic Series Brackets •...
-
Page 4: Component List
COMPONENT LIST 35A / 35SLC 340mm 01 03 02 04 QTY. Ref.# Part.# Part Description Req. 852245 35a Aerobar Extensions 340mm (L) 852246 35a Aerobar Extensions 340mm (R) 852277 35SLC Aerobar Extensions 340mm (L) 852278 35SLC Aerobar Extensions 340mm (R) - Page 5 COMPONENT LIST 35A / 35SLC 400mm 05 07 06 08 QTY. Ref.# Part.# Part Description Req. 852266 35a Aerobar Extensions 400mm (L) 852267 35a Aerobar Extensions 400mm (R) 852279 35SLC Aerobar Extensions 400mm (L) 852280 35SLC Aerobar Extensions 400mm (R)
- Page 6 Extensions COMPONENT LIST 43A / 43SLC 400mm 09 11 10 12 QTY. Ref.# Part.# Part Description Req. 852275 43a Aerobar Extensions 400mm (L) 852276 43a Aerobar Extensions 400mm (R) 852281 43SLC Aerobar Extensions 400mm (L) 852282 43SLC Aerobar Extensions 400mm (R)
- Page 7 Extensions COMPONENT LIST 4525A / 4525SLC 400mm 13 15 14 16 QTY. Ref.# Part.# Part Description Req. 852247 4525a Aerobar Extensions 400mm (L) 852248 4525a Aerobar Extensions 400mm (R) 852283 4525SLC Aerobar Extensions 400mm (L) 852284 4525SLC Aerobar Extensions 400mm (R)
- Page 8 Extensions COMPONENT LIST 50A 340mm QTY. Ref.# Part.# Part Description Req. 852270 50a Aerobar Extensions 340mm (L) 852271 50a Aerobar Extensions 340mm (R)
- Page 9 Extensions COMPONENT LIST 50A / 50SLC 400mm 19 21 20 22 QTY. Ref.# Part.# Part Description Req. 852249 50a Aerobar Extensions 400mm (L) 852250 50a Aerobar Extensions 400mm (R) 852285 50SLC Aerobar Extensions 400mm (L) 852286 50SLC Aerobar Extensions 400mm (R)
- Page 10 Extensions COMPONENT LIST Aluminum Extensions - End Plug Carbon Extensions - End Plug QTY. Ref.# Part.# Part Description Req. 168428 End Plug - Round Aluminum (Front) 716669 End Plug - Round Carbon (Front) 716667 End Plug - With Slot Hole / Logo (Rear)
-
Page 11: Part Drawings
Extensions PART DRAWINGS 35A / 35SLC 4525A / 4525SLC 35° 25° 45° 35°... - Page 12 Extensions PART DRAWINGS 43A / 43SLC 50A / 50SLC 50° 43° 50°...
- Page 13 Extensions PRODUCT SPECIFIC SETUP LIMITATIONS 10 mm 60 mm...
-
Page 14: Torque Settings
Extensions TORQUE SETTINGS Ref.# Location Bolt Size Torque Extension clamp M6x15mm 6Nm (53 inlbf) -
Page 15: Installation Instructions
Extensions INSTALLATION INSTRUCTIONS 1. Install the extensions in the desired position and tighten the extension fixing bolt so they are held snugly. 2. Install the shifters (if using bar end models) as per the shifter manufacturer’s instructions. We recommend a light coating of assembly compound on the inside of the extension prior to installing the shifter. - Page 16 Extensions HOW TO CUT THE EXTENSIONS 1. Carefully determine the required extension length by performing a bike fit or measuring the existing extensions. 2. Mark the point at which you wish to make a cut. 3. We recommend checking your measurements after first marking the cut line to ensure that you do not inadvertently cut the extensions too short.
- Page 17 • Profile Design Worldwide Two Year Limited Warranty. • Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit...
- Page 18 Extensions 2677 El Presidio Street Long Beach, CA 90810 Ph: 310-884-7756 www.profile-design.com © Profile Design LLC...
