- Page 1 HSA 800 EVO HSA 800 EVO HYDRATION REVISION 01-08-30-2024...
-
Page 2: Tools And Materials Required

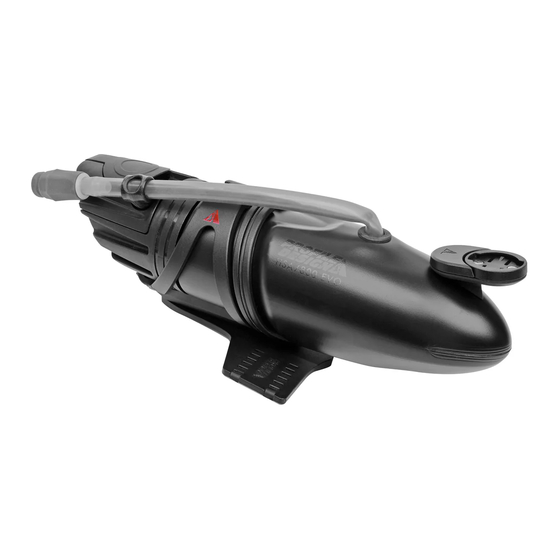

Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's warranty policy. If you are not familiar with installing cycling accessories, please seek the assistance of your local Profile design dealer by logging on to www.profile-design.com and using "dealer search"... - Page 3 HSA 800 EVO Your hydration system should contain: • One(1) Plastic bottle • One(1) Plastic Cap with fill port and magnet buried • One(1) Plastic BTA mount with threaded inserts • One(1) Plastic bottle cage with retention clip • One(1) Garmin mount •...
-
Page 4: Component List
HSA 800 EVO COMPONENT LIST QTY. Ref.# Part.# Part Description Req. 600221 Bottle - PFD HSA 800 EVO BK B141 Rear Cap - HSF 800+ Magnet System (Integration) B219 Rear Cap - HSF 800 EVO BK B221 Top Lid - For HSA 800 EVO BK B146 Latch -Axis Grip for HSF 800 414254... -
Page 5: Part Drawings
HSA 800 EVO PART DRAWINGS 140 mm 85 mm 310 mm... - Page 6 HSA 800 EVO PRODUCT SPECIFIC SETUP LIMITATIONS +75°C -40°C WARNING If you want to put it in the dishwasher, please make sure that the temperature is maintained at a heat-resistant temperature. If not, we haven't recommended to put it in the dishwasher.
-
Page 7: Installation Instructions
HSA 800 EVO INSTALLATION INSTRUCTIONS Installing the system on a bike: Removing the bottle: 1. Place the wings of the HC Mount II on the extensions. 1. To remove the bottle first ensure that the hose is not attached to the magnet or clip. 2. - Page 8 HSA 800 EVO Opening the bottle: Closing the bottle: 1. To open the bottle, first remove it from the cage. (see instructions below on how to remove the bottle 1. Again, it will be easier to do this with the fill port open. from the cage) 2.
-
Page 9: Cleaning The System
HSA 800 EVO Installing the bottle: Cleaning the system: 1. Orient the bottle correctly with the guide channel on the base lined up with the front tab on the cage. 1. Remove the bottle from the cage and remove the cap. 2. - Page 10 HSA 800 EVO Using the bottle: 1. To drink during a race. 3. To install a Garmin© GPS unit a. Remove the straw from the magnet and place the end in your mouth. a. Place the tabs on the base of the Garmin© into the mount and gently make a quarter turn of the b.
-
Page 11: Warranty Policy
• Profile Design Worldwide Two Year Limited Warranty. • Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit... - Page 12 HSA 800 EVO 2677 El Presidio Street Long Beach, CA 90810 Ph: 310-884-7756 www.profile-design.com © Profile Design LLC...
