DigiTemp Jr.
®

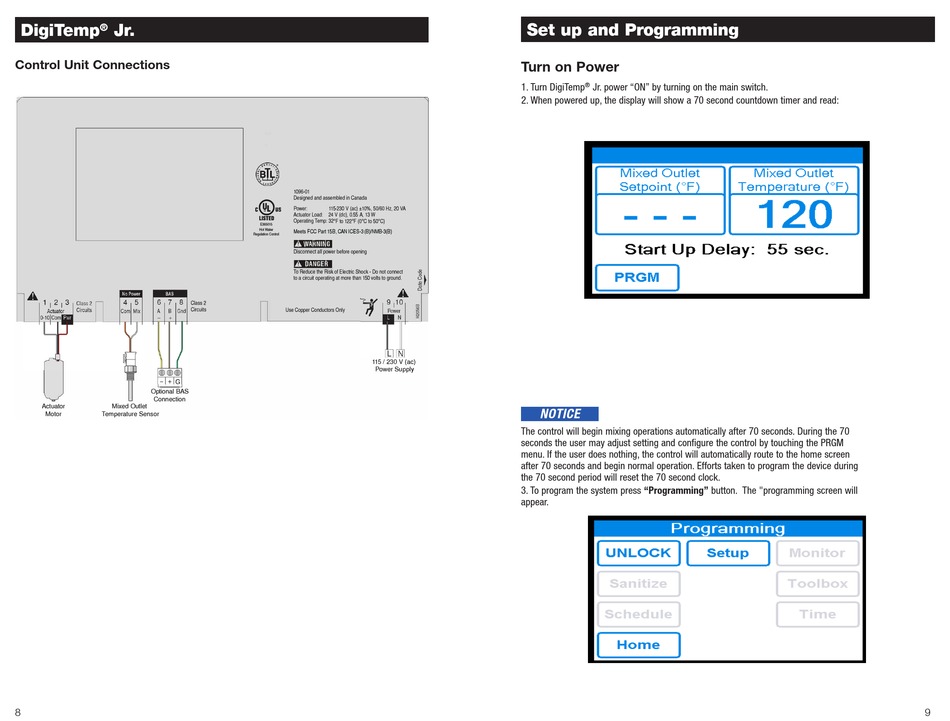

Control Unit Connections
Class 2
Circuits
- + G
Optional BAS
Connection
Actuator Mixed Outlet
Motor Temperature Sensor
8
• [g]
1096-01
Designed and assembled in Canada
Power: 115-230 V (ac) ±10%, 50/60 Hz, 20 VA
c@us
Actuator Load: 24 V (de), 0.55 A, 13 W
LISTED
Operating Temp: 32 ° F to 122 ° F (0 ° C to 50 ° C)
E365015
Hot Water
Meets FCC Part 15B, CAN ICES-3 (B)/NMB-3(8)
Regulation Control
r! 1 NJ;Oll�hl
1
Disconnect all power before opening
r! 1i tJdNB3;1
To Reduce the Risk of Electric Shock - Do not connect
to a circuit operating at more than 150 volts to ground.
Use Copper Conductors Only
115 / 230 V (ac)
Power Supply

Set up and Programming

Turn on Power
1. Turn DigiTemp Jr. power "ON" by turning on the main switch.
®
2. When powered up, the display will show a 70 second countdown timer and read:
NOTICE
The control will begin mixing operations automatically after 70 seconds. During the 70
seconds the user may adjust setting and configure the control by touching the PRGM
menu. If the user does nothing, the control will automatically route to the home screen
after 70 seconds and begin normal operation. Efforts taken to program the device during
the 70 second period will reset the 70 second clock.
3. To program the system press "Programming" button. The "programming screen will
appear.
