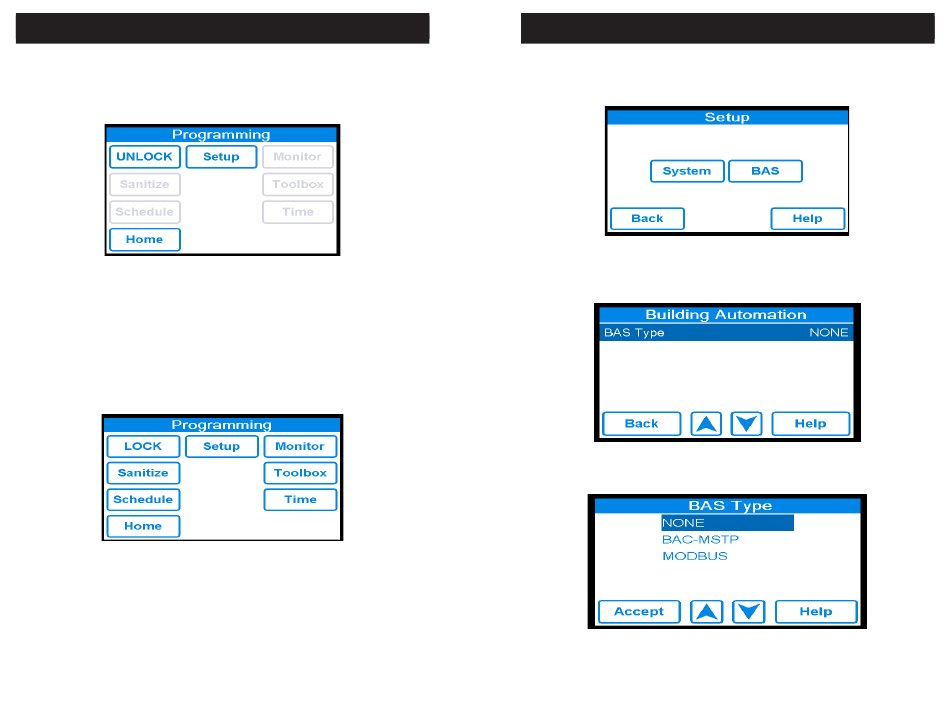

From within the "Programming" menu (shown below) only the Home, Setup and UNLOCK icons are active
until the control is in the unlocked state. Note: After 70 seconds of inactivity the control automatically locks
and returns to the home screen.
To unlock the control select the UNLOCK icon from within the "Programming" menu
Unlock the control by entering your password and selecting the ENTER icon. If you have not yet set your
password, please refer to page (10) for password setup. If the wrong code was entered select Clear to
try again. Note: the ENTER icon will only work if the correct code is entered. Once unlocked, the control
automatically redirects to the "Programming" menu but this time the UNLOCK icon will appear as LOCK
icon, indicating that the control is unlocked, and the other icons (SETUP, MONITOR, SANITIZE, TOOLBOX,
SCHEDULE, Wi-Fi, AND TIME) will now be active.
Select the setup icon from within the "Programming" menu to access the "Setup" menu shown below.
18
DigiTemp Jr. BAS Integration Manual
®
Select the BAS icon from within the "Setup" menu to access the "Building Automation" menu shown below.
The default "BAS Type" is "NONE" as shown below.
To change this setting press the "BAS Type" and adjustment screen will appear (as shown below).
Depress the UP and DOWN arrows to scroll through the BAS types and depress the icon to configure the
control to the highlighted type and return to the "Building Automation" menu. Note: depending on the BAS
Type selected, various user configurable items will now appear within the "Building Automation" menu. A
table of the user definable items is shown below.
