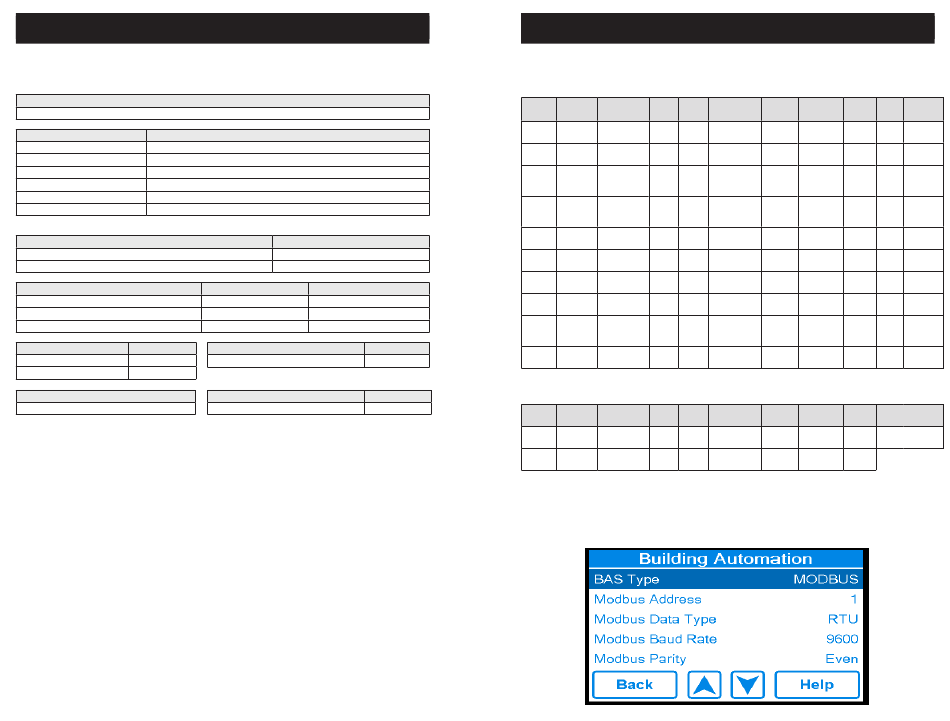

DigiTemp Jr. BAS Integration Manual
®
BAS Menu
BACnet Standardized Device Profile (ANNEX L)
BACnet Application Specific Controller (B-ASC)
Supported BIBBs (Annex K) Name
DS-RP-B Data Sharing-ReadProperty-B
DS-RPM-B Data Sharing-ReadPropertyMultiple-B
DS-WP-B Data Sharing-WriteProperty-B
DM-DDB-B Device Management-Dynamic Device Binding-B
DM-DOB-B Device Management-Dynamic Object Binding-B
DM-DCC-B Device Management-Device Communication Control-B
Note: Device communication control password is "PVI1017".
Segmentation Capability
Able to transmit segmented messages
Able to receive segmented messages
Standard Object Types Supported
Analog Input
Analog Value
Binary Output
Data Link Layer Options Supported
MS/TP master (Clause 9) Yes
BACnet IP (Annex J) No
Network Security Options
Non-Secure Device
22
Supported
No
No
Creatable Deletable
No No
No No
No No
Device Address Binding Supported
Static Device Address Binding No
Character Set Supported
ANSI X3.4 Yes
DigiTemp Jr. BAS Integration Manual
®
BACnet Analog Parameters
®
Objective Objective Present Status
Objective Name
Identifier Type Value Flags
Mixed Outlet
0 analog-Input FFF(F/T)
Temperature
1 analog-Input Valve Position FFF(F/T)
2 analog-Input Mixed Outlet High FFF(F/T)
3 analog-Input Mixed Outlet Low FFF(F/T)
High Temperature
4 analog-Input FFF(F/T)
Alert Differential
Low Temperature
5 analog-Input FFF(F/T)
Alert Differential
High Temperature
6 analog-Input FFF(F/T)
Alert Count
Low Temperature
7 analog-Input FFF(F/T)
Alert Count
8 analog-Input Error Code FFF(F/T)
Others analog-Input ERROR ERROR ERROR
Analog Valve Objects
Objective Objective Present Status
Objective Name
Identifier Type Value Flags
Mixed Outlet
0 analog-value FFF(F/T)
Setpoint
Other analog-value ERROR ERROR ERROR
Modbus Specific Settings
Range/ Out of
Description Event State Reliability
Value Service
Mixed Outlet
0 - 266 Normal 0, 1, 4, 5 FALSE
Temperature
Analog signal pro-
0 - 10 Normal 0 FALSE
vided to actuator
Highest recorded
mixed outlet 0 - 266 Normal 0 FALSE
temperature
Lowest recorded
mixed outlet 0 - 266 Normal 0 FALSE
temperature
High Temperature
10 - 30 Normal 0 FALSE
Alert Differential
Low Temperature
10 - 30 Normal 0 FALSE
Alert Differential
Number of High
0 - 65535 Normal 0 FALSE
Temperature Alerts
Number of Low
0 - 65535 Normal 0 FALSE
Temperature Alerts
Numerical error
code (see error 1 to 4 Normal 0 FALSE
code table)
Communication
ERROR ERROR ERROR
error
Range/ Out of
Description Even State Units
Value Service
Target Tem- true to
70 - 180 Normal
perature false
Communication
ERROR ERROR ERROR
error
Units
°F (64)
Volts (5)
°F (64)
°F (64)
°F (64)
°F (64)
Number (95)
Number (95)
Number (95)
°F (64)
23
