Operating Instructions/Brief Operating Instructions

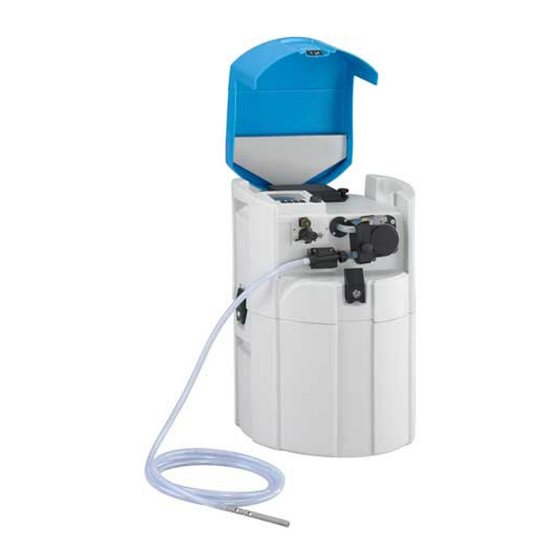

Liquiport 2010 CSP44
Automatic sampler for liquid media
Commissioning
BA465C/07/EN/06.10
71118802
Valid as of:
Software version 01.01.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liquiport 2010 CSP44 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Liquiport 2010 CSP44

Summary of Contents for Endress+Hauser Liquiport 2010 CSP44

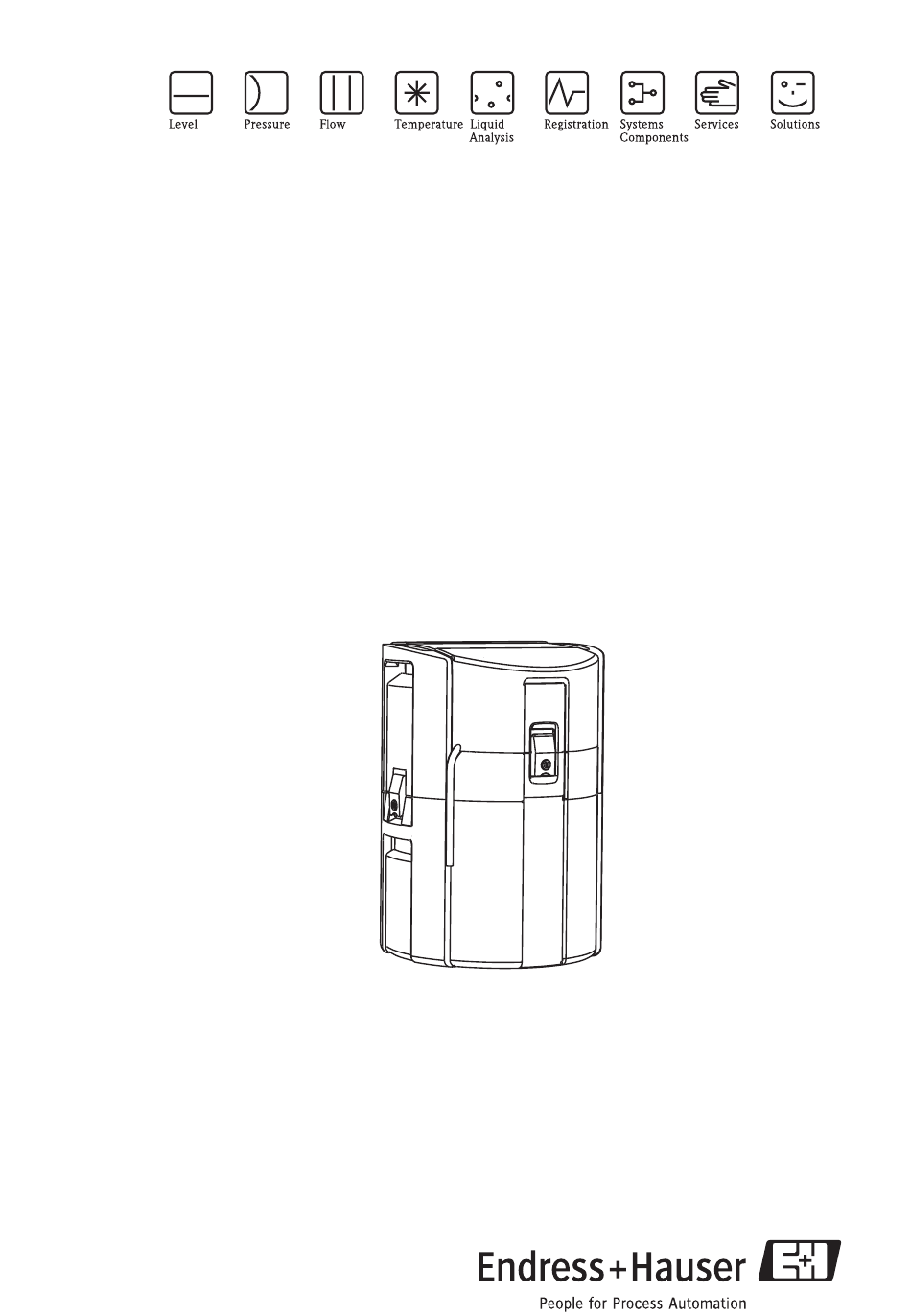

  • Page 1 Operating Instructions/Brief Operating Instructions Liquiport 2010 CSP44 Automatic sampler for liquid media Commissioning BA465C/07/EN/06.10 71118802 Valid as of: Software version 01.01.00...
  • Page 2 Overview of documentation Operating Instructions The Operating Instructions are split into several parts: Commissioning (BA465C) • All steps that have to be carried out once only during the initial commissioning • Description of menus: – Basic settings – Display/Operation • Technical data Operation &...

  • Page 3: Table Of Contents

    Liquiport 2010 CSP44 Table of contents Safety instructions ..4 Analog input, passive/active (optional) . . . 32 Output (optional) ....33 Designated use .

  • Page 4: Safety Instructions

    Liquiport 2010 CSP44 Safety instructions Designated use The Liquiport 2010 CSP44 is a portable sampler for liquid media for operation in non-hazardous areas. The samples are taken discontinuously using a peristaltic pump and are then distributed into sample containers. The sampler is designed for use in the following applications: •...

  • Page 5: Return

    Liquiport 2010 CSP44 Safety instructions As the user, you are responsible for observing the following safety regulations: • Installation guidelines • Local standards and regulations Electromagnetic compatibility With regard to electromagnetic compatibility, this device has been tested in accordance with the applicable European standards for industrial applications.

  • Page 6: Identification

    Scope of delivery The scope of delivery comprises: • 1 Liquiport 2010 CSP44 with: – The ordered bottle configuration – Optional hardware • 1 "Commissioning" Operating Instructions (In the preferred language if the "Default operating language" order option is selected.

  • Page 7: Certificates And Approvals

    Liquiport 2010 CSP44 Identification Certificates and approvals Declaration of Conformity The product meets the requirements of the harmonized European standards. As such, it complies with the legal specifications of the EC directives. The manufacturer confirms successful testing of the product by affixing to it the 4 mark.

  • Page 8: Device Description

    Unit upper compartment Peristaltic pump with pump tubing Bottle retaining cover Lockable latches Lower carrying handles Unit lower compartment Bottle distribution Lockable latches Suction line connection Medium detection Electrical connections a0013533 Fig. 1: Example of Liquiport 2010 CSP44 Controller Endress+Hauser...

  • Page 9: Installation

    Liquiport 2010 CSP44 Installation Warning! Danger of injury due to rotating parts • Do not open the cover of the peristaltic pump while the pump is operating. • Secure the sampler against unintentional start-up whilst you work on the opened hose pump.

  • Page 10: Installation Conditions

    Installation Liquiport 2010 CSP44 Installation conditions 4.2.1 Dimensions a0013473 Fig. 2: Dimensions Liquiport 2010 CSP44 standard version Endress+Hauser...
  • Page 11 Liquiport 2010 CSP44 Installation 4.2.2 Mounting location a0013474 The suction line must be routed with a downward slope to the sampling point, this helps to drain the line during purges and avoids siphoning! Note the following when mounting the sampler: •...

  • Page 12: Connecting The Suction Line

    Installation Liquiport 2010 CSP44 Sampling point The following conditions must be met at the sampling point: " Caution! • Do not connect the suction line to pressurized systems. • Use a suction strainer to catch bigger, abrasive solids that could clog the system.

  • Page 13: Wiring

    Liquiport 2010 CSP44 Wiring Wiring " Caution! If it is assumed that the unit can no longer be operated safely (e.g. by visible damage), it must immediately be taken out of operation. Please ensure that the the unit is secured against unintentional use.

  • Page 14: Battery Connection

    Wiring Liquiport 2010 CSP44 Battery connection The unit is shipped with the battery built-in. The battery is not connected. Before the first commissioning, charge the battery. The battery needs approx 5 hours for a full charge. For further information on the battery charger, please read the accompanying handbook.

  • Page 15: Signal Cable Connection (Optional)

    Liquiport 2010 CSP44 Wiring Signal cable connection (optional) a0014162 Fig. 4: Pin connection and wiring diagram for the signal cable (option K3) Power supply U: 10 V max. 30 mA load Binary inputs BI: > 20 ms, only low voltage Ui ≤ 28 V DC Binary outputs BO: only low voltage Ui ≤...
  • Page 16 Wiring Liquiport 2010 CSP44 a0014197 Fig. 5: Pin connection and wiring diagram for the signal cable (option K4) Power supply U: 10 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 28 V DC Binary output BO: only low voltage Ui ≤...
  • Page 17 Liquiport 2010 CSP44 Wiring a0014198 Fig. 6: Pin connection and wiring diagram for the signal cable (option K5) Power supply U: 10 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 28 V DC Binary output BO: only low voltage Ui ≤...

  • Page 18: Sensor Connection (Optional)

    Wiring Liquiport 2010 CSP44 Sensor connection (optional) a0014160 Fig. 7: Connection sockets for sensors Socket for M12 sensor connector (= Channel 1 for versions with one sensor) Socket for M12 sensor connector (= Channel 2 for versions with two sensors)

  • Page 19: Operation

    Liquiport 2010 CSP44 Operation Operation Display and operating elements 6.1.1 Overview Navigator (jog/shuttle and press/hold function) Soft keys (function depends on the menu) Display (red background in the event of an a0013350 Fig. 8: Overview of operation error) 6.1.2 Display...

  • Page 20: Operation Concept

    Operation Liquiport 2010 CSP44 Operation concept a0013353-en a0013354-en Fig. 10: Pressing the soft key: selecting the menu directly Fig. 11: Turning the navigator: moving the cursor in the menu a0013355-en a0013356-en Fig. 12: Pressing the navigator: launching a function Fig. 13: Turning the navigator: selecting a value (e.g. from...

  • Page 21: Configuration Options

    Liquiport 2010 CSP44 Operation Configuration options 6.3.1 Display only • You can only read the values but cannot change them. • Typical read-only values are: sensor data and system information • Example: Menu/Setup/Inputs/../Sensor type 6.3.2 Picklists • You receive a list of options.

  • Page 22: Commissioning

    Commissioning Liquiport 2010 CSP44 6.3.5 Customized text • You are assigning an individual designation. • Enter a text. You can use the characters in the editor for this purpose (upper-case and lower-case letters, numbers and special characters). • Using the soft keys, you can: –...

  • Page 23: General Settings

    Liquiport 2010 CSP44 Commissioning Path: Menu / Display/Operation Function Options Info Screensaver Options The screensaver switches off the display if more • Off than 5 minutes have elapsed since the last action • Automatic executed in the software. The controller continues...
  • Page 24 Commissioning Liquiport 2010 CSP44 7.3.2 Date and time Path: Menu/Setup/General settings/Date/Time Function Options Info Date format Options Decide which date format you want to use. • DD.MM.YYYY • YYYY-MM-DD • MM-DD-YYYY Factory setting DD.MM.YYYY Set date Depends on the format...
  • Page 25 Liquiport 2010 CSP44 Commissioning 7.3.3 Logbooks Logbooks record the following events: • Calibration/adjustment events • Operator events • Diagnostic events • Programming events Here you define how the logbooks should store the data. In addition, you are also able to define individual data logbooks. Assign the logbook name and select the measured value to be recorded.
  • Page 26 Commissioning Liquiport 2010 CSP44 Path: Menu/Setup/General settings/Logbooks Function Options Info You can create a maximum of 8 data logbooks. Logbook name Customized text, 20 characters Source of data Options Select the input that should be the data source of • None the logbook entries.
  • Page 27 Liquiport 2010 CSP44 Commissioning Example for setting up a new data logbook Menu/Setup/General settings/Logbooks/Data logbooks/Scan time: Specify the interval between two logbook entries../New: a. Logbook name: Assign a name, e.g. "01". b. Source of data: Select a data source.
  • Page 28 Commissioning Liquiport 2010 CSP44 7.3.5 Device-specific diagnostic settings (Menu/Setup/General settings/ Diagnostics) This branch, along with the same functions, can be found in various parts of the menu. The list of diagnostic messages displayed depends on the path selected. There are device-specific messages, and messages that depend on what sensor is connected.
  • Page 29 Liquiport 2010 CSP44 Commissioning 7.3.6 Configuring the sampling depending on the device version Path: Menu/Setup/General settings Function Options Info Sampling Number of bottles Choice of all possible bottle The bottle configuration you ordered is preset in the combinations device. Bottle volume 0 to 100000 ml Set the bottle volume.
  • Page 30 Commissioning Liquiport 2010 CSP44 Path: Menu/Setup/General settings Function Options Info Diagnostics settings Pump tube life Control Options Indicates the pump hose has to be exchanged. • Off • On Factory setting Warning 10 to 200 h Factory setting 200 h...
  • Page 31 Liquiport 2010 CSP44 Commissioning 7.3.8 Programming for automatic sampling Create a sampling program in the general overview under "Select sampling program/New/ Basic" or in the menu "Menu/Setup/Sampling programs/Setup program/New/Basic": Enter the "Program name". The bottle configuration from the setup is displayed.

  • Page 32: Technical Data

    Technical data Liquiport 2010 CSP44 Technical data Input 8.1.1 Input types (optional) • up to 2 analog inputs • up to 2 binary inputs • 1 or 2 digital sensors with Memosens protocol 8.1.2 Measured variables See documentation of the connected sensor.

  • Page 33: Output (Optional)

    8.6.2 Supply voltage Sampler: internal 24 V DC, 7.2 Ah lead-acid battery The sampler cannot be operated without the battery. Charger for Liquiport 2010 CSP44: Field-suitable IP 67 100 to 240 V AC; charge current 2.0 A; also suitable for mains operation Indoor use 100 to 240 V AC;...

  • Page 34: Performance Characteristics

    Technical data Liquiport 2010 CSP44 Performance characteristics 8.7.1 Sampling methods • Event sampling • Single and multiple samples • Sampling table • Time proportional sampling (CTCV) • Flow proportional sampling (VTCV) • Flow proportional sampling/time override (CTVV) 8.7.2 Dosing volume 10 to 9999 ml (0.7 to 340 fl.oz.)

  • Page 35: Process

    Liquiport 2010 CSP44 Technical data 8.8.4 Electromagnetic compatibility Interference emission and interference immunity as per EN 61326-1: 2006, class A for industry 8.8.5 Electrical safety In accordance with EN 61010-1, protection class III (charger: protection class I), environment ≤ 2000 m (6500 ft) above MSL; The device is designed for pollution degree 2.
  • Page 36 Technical data Liquiport 2010 CSP44 8.10.3 Material Liquiport 2010 CSP44 Housing Plastic PE Housing parts Plastic PE Bottles Plastic PE, glass (depending on version) Distribution arm Plastic PE Sensor housing Plastic PP Pump tubing Silicone Suction line Plastic PVC reinforced braided, EPDM black 8.10.4 Process connections...

  • Page 37: Index

    Liquiport 2010 CSP44 Index Incoming acceptance..... . . 9 Installation ......4, 9 Approvals .
  • Page 38 Liquiport 2010 CSP44 Signal cable connection....15 Status display ......19 Storage .
  • Page 39 Liquiport 2010 CSP44 Endress+Hauser...
  • Page 40 BA465C/07/EN/06.10 FM+SGML 6.0...
