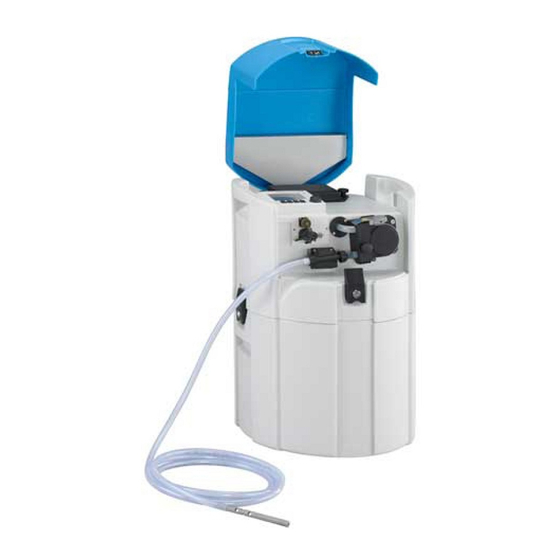

Endress+Hauser Liquiport 2010 CSP44 Operating Instructions Manual
Automatic sampler for liquid media
Hide thumbs
Also See for Liquiport 2010 CSP44:
- Operating instructions manual (64 pages) ,
- Brief operating instructions (36 pages) ,
- Operating instructions manual (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Liquiport 2010 CSP44
Summary of Contents for Endress+Hauser Liquiport 2010 CSP44

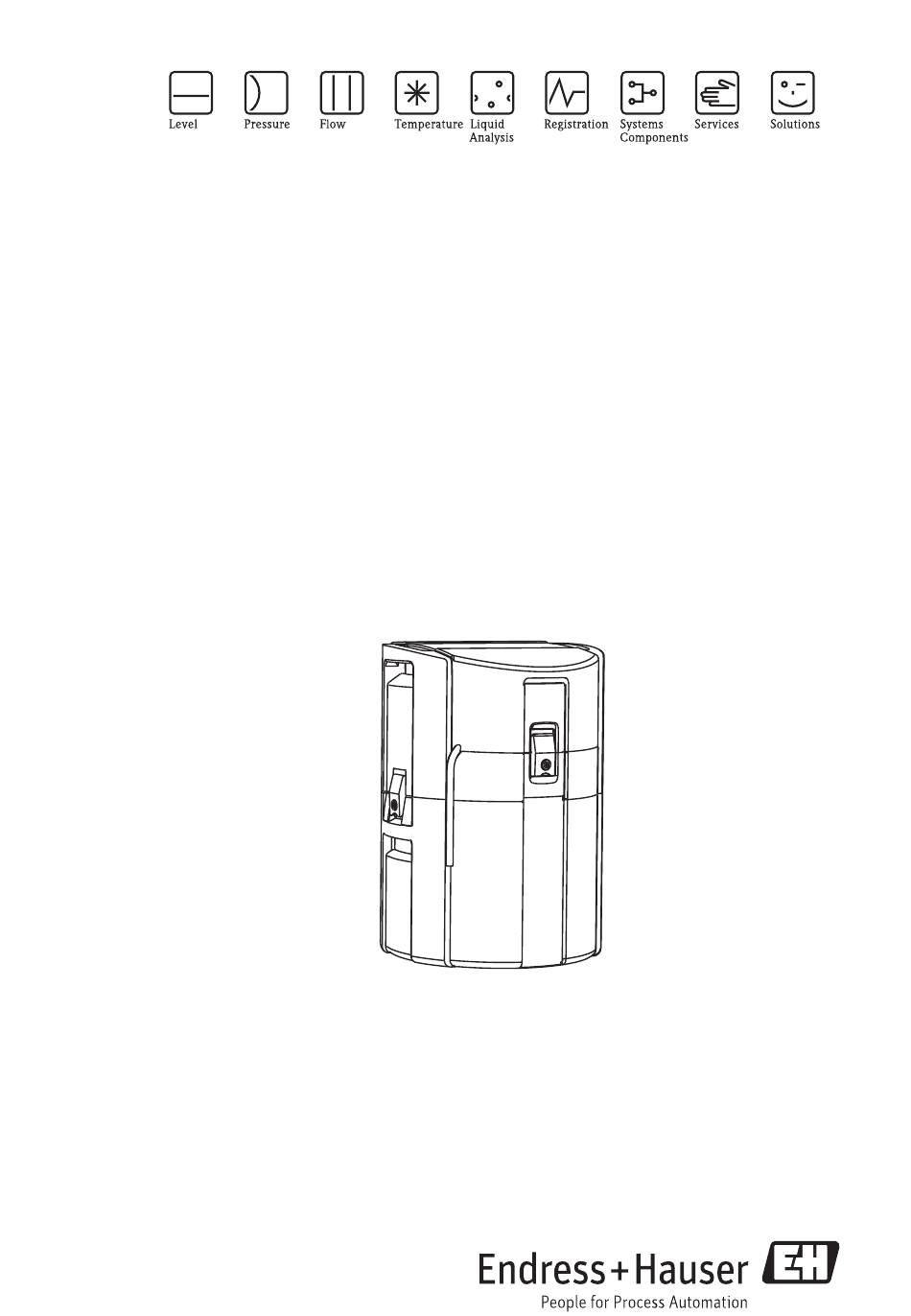

- Page 1 Operating Instructions/Brief Operating Instructions Liquiport 2010 CSP44 Automatic sampler for liquid media Commissioning BA00465C/07/EN/14.12 71185405 Valid as of: Softwareversion 01.03.00...
- Page 2 Overview of documentation Operating Instructions The Operating Instructions are split into several parts: Commissioning (BA00465C) • All steps that have to be carried out once only during the initial commissioning • Description of menus: – Basic settings – Display/Operation • Technical data Operation &...
-
Page 3: Table Of Contents
Liquiport 2010 CSP44 Table of contents Safety instructions ..4 Technical data... . . 33 Designated use ..... . 4 Input . -
Page 4: Safety Instructions
Liquiport 2010 CSP44 Safety instructions Designated use The Liquiport 2010 CSP44 is a portable sampler for liquid media for operation in non-hazardous areas. The samples are taken discontinuously using a peristaltic pump and are then distributed into sample containers. The sampler is designed for use in the following applications: •... -
Page 5: Operational Safety
The device must be returned in the event of repair, a factory calibration, or if the wrong device has been ordered or delivered. Legal regulations specify that Endress+Hauser, as an ISO-certified company, must follow certain procedures when handling any returned products that are in contact with the medium. -
Page 6: Notes On Safety Conventions And Icons
Safety instructions Liquiport 2010 CSP44 Notes on safety conventions and icons 1.5.1 Warnings The structure, signal words and safety colors of the signs comply with the specifications of ANSI Z535.6 ("Product safety information in product manuals, instructions and other collateral materials"). -
Page 7: Identification
Liquiport 2010 CSP44 Identification Identification Device designation 2.1.1 Nameplate Nameplates can be found: • On the inside of the cover • On the packaging (adhesive label, portrait format) The nameplate provides you with the following information on your device: • Manufacturer ID •... -
Page 8: Scope Of Delivery
Identification Liquiport 2010 CSP44 Scope of delivery The scope of delivery comprises: • 1 Liquiport 2010 CSP44 with: – The ordered bottle configuration – Optional hardware • 1 "Commissioning" Operating Instructions (In the preferred language if the "Default operating language" order option is selected. Otherwise, the Brief Operating Instructions are supplied in English.) -
Page 9: Device Description
Unit upper compartment Peristaltic pump with pump tubing Bottle retaining cover Lockable latches Lower carrying handles Unit lower compartment Bottle distribution Lockable latches Suction line connection Medium detection Electrical connections a0013533 Fig. 1: Example of Liquiport 2010 CSP44 Controller Endress+Hauser... - Page 10 Device description Liquiport 2010 CSP44 WARNING Danger of injury due to rotating parts ► Do not open the cover of the peristaltic pump while the pump is operating. ► Secure the sampler against unintentional start-up whilst you work on the opened hose pump.
-
Page 11: Installation
Optimum protection is provided by the original packaging materials. In addition, the permitted ambient conditions must be observed (see Technical data). ► If you have any queries, please contact your supplier or local sales center. Installation conditions 4.2.1 Dimensions a0013473 Fig. 2: Dimensions Liquiport 2010 CSP44 standard version Endress+Hauser... - Page 12 Liquiport 2010 CSP44 4.2.2 Mounting location a0013474 Fig. 3: Mounting location Liquiport 2010 CSP44 The suction line must be routed with a downward slope to the sampling point, this helps to drain the line during purges and avoids siphoning! Note the following when mounting the sampler: •...
-
Page 13: Connecting The Suction Line
Liquiport 2010 CSP44 Installation The following conditions must be met at the sampling point: • Do not connect the suction line to pressurized systems • Use a suction strainer to catch bigger, abrasive solids that could clog the system • Immerse the intake hose in the direction of flow •... -
Page 14: Wiring
Wiring Liquiport 2010 CSP44 Wiring WARNING Danger due to damage of the unit ► If it is assumed that the unit can no longer be operated safely (e.g. by visible damage), it must immediately be taken out of operation. Ensure that the unit is secured against unintentional use. -
Page 15: Battery Connection
Liquiport 2010 CSP44 Wiring Battery connection The unit is shipped with the battery built-in. The battery is not connected. Before the first commissioning, charge the battery. The battery needs approx 5 hours for a full charge. For further information on the battery charger, please read the accompanying handbook. -
Page 16: Signal Cable Connection (Optional)
Wiring Liquiport 2010 CSP44 Signal cable connection (optional) a0014162 Fig. 5: Pin connection and wiring diagram for the signal cable (option K3) Power supply U: 24 V max. 30 mA load Binary inputs BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary outputs BO: only low voltage Ui ≤... - Page 17 Liquiport 2010 CSP44 Wiring a0014197 Fig. 6: Pin connection and wiring diagram for the signal cable (option K4) Power supply U: 24 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary output BO: only low voltage Ui ≤...
-
Page 18: Sensor Connection (Optional)
Wiring Liquiport 2010 CSP44 a0014198 Fig. 7: Pin connection and wiring diagram for the signal cable (option K5) Power supply U: 24 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary output BO: only low voltage Ui ≤... -
Page 19: Post-Connection Check
Liquiport 2010 CSP44 Wiring Post-connection check WARNING Wiring errors Incorrect wiring puts the safety of people and the measuring point at risk. The manufacturer does not accept any responsibility for errors that result from failure to comply with the instructions in this manual. -
Page 20: Operation
Operation Liquiport 2010 CSP44 Operation Display and operating elements 6.1.1 Overview Navigator (jog/shuttle and press/hold function) Soft keys (function depends on the menu) Display (red background in the event of an a0013350-en Fig. 9: Overviewof operation error) 6.1.2 Display Menu path and/or device designation Status display Assignment of the soft keys, e.g. -
Page 21: Operation Concept
Liquiport 2010 CSP44 Operation Operation concept a0013353-en a0013354-en Fig. 11: Pressing the soft key: selecting the menu directly Fig. 12: Turning the navigator: moving the cursor in the menu a0013355-en a0013356-en Fig. 13: Pressing the navigator: launching a function Fig. 14: Turning the navigator: selecting a value (e.g. from a... -
Page 22: Configuration Options
Operation Liquiport 2010 CSP44 Configuration options 6.3.1 Display only • You can only read the values but cannot change them. • Typical read-only values are: sensor data and system information • Example: Menu/Setup/Inputs/../Sensor type 6.3.2 Picklists • You receive a list of options. - Page 23 Liquiport 2010 CSP44 Operation 6.3.5 Customized text • You are assigning an individual designation. • Enter a text. You can use the characters in the editor for this purpose (upper-case and lower-case letters, numbers and special characters). • Using the soft keys, you can: –...
- Page 24 Operation Liquiport 2010 CSP44 6.3.6 Tables • Tables are required to represent mathematical functions. • To edit a table, use the navigator to move through the rows and columns and change the cell values. • You only edit numerical values. The controller automatically takes units of measure into consideration.
-
Page 25: Commissioning
Liquiport 2010 CSP44 Commissioning Commissioning Function check WARNING Incorrect connection, incorrect supply voltage Safety risks for staff and incorrect operation of the device ► Check that all connections have been established correctly in accordance with the wiring diagram. ► Make sure that the supply voltage matches the voltage indicated on the nameplate. - Page 26 Commissioning Liquiport 2010 CSP44 7.2.3 Display settings Path: Menu/Display/Operation Function Options Info Contrast 5 ... 95 % Adjust the screen settings to suit your working environment. Backlight="Automatic" Backlight Options The backlighting is switched off automatically after a short • On time if a button is not pressed.
- Page 27 Liquiport 2010 CSP44 Commissioning Path: Menu/Display/Operation Function Options Info Measured value Options You can display different measured values depending on the • Depends on the source of data source. data Factory setting None Label Customized text, 20 User-defined description for parameter to be displayed characters Set label to "%0V"...
-
Page 28: Display
Commissioning Liquiport 2010 CSP44 Display 7.3.1 Measuring values To display the measuring values go to "Measurement" in the general overview or press the "MEAS" soft key when a program is running. There are various display modes: (Press the navigator button to change the mode) -
Page 29: Basic Setup
Liquiport 2010 CSP44 Commissioning Icon Location Description At measured value An offset has been added to the measured value At measured value Measured value has status "Bad" or "Alarm" At measured value Automatic temperature compensation active At measured value Manual temperature compensation active... - Page 30 Commissioning Liquiport 2010 CSP44 Menu in Basic setup Section in BA00492C Software path in main menu Current output x:y Outputs Setup/Outputs/Current output x:y Limit switches Additional functions Setup/Additional functions/Limit switches Diagnostics settings General settings Setup/General settings/Extended setup/Diagnostics settings Cleaning Additional functions...
-
Page 31: Sampling Programs
Liquiport 2010 CSP44 Commissioning Sampling programs 7.5.1 Differences between program types The following overview shows the differences between the Basic, Standard and Advanced program types: Basic: single program Sampling program (1) activation immediate Program stop Program start: time-, flow proportional... - Page 32 Commissioning Liquiport 2010 CSP44 7.5.2 Manual sampling • Manual sampling is triggered by the "MAN" soft key. This pauses any program currently running. • The current bottle configuration and the current sample volume are displayed. The distributor position and sample volume can be changed.
-
Page 33: Technical Data
Liquiport 2010 CSP44 Technical data • Example: Technical data Input 8.1.1 Input types (optional) • Up to 2 analog inputs • Up to 2 binary inputs • 1 or 2 digital sensors with Memosens protocol 8.1.2 Measured variables See documentation of the connected sensor. -
Page 34: Analog Input, Passive/Active (Optional)
8.6.2 Supply voltage Sampler: internal 24 V DC, 7.2 Ah lead-acid battery The sampler cannot be operated without the battery. Charger for Liquiport 2010 CSP44: Field-suitable IP 67 100 to 240 V AC; charge current 2.0 A; also suitable for mains operation Indoor use 100 to 240 V AC;... -
Page 35: Performance Characteristics
Liquiport 2010 CSP44 Technical data Specification of charger for Liquiport 2010 CSP44: • Max. output current = 2 A • Max. output voltage = 29.5 V • Double/reinforced insulation • Constant current • CSA or UL recognized according to UL 60950-1, UL 60601-1 or UL 61010-1 or the relevant CSA standards 8.6.3 Power consumption... -
Page 36: Environment
Technical data Liquiport 2010 CSP44 8.7.5 Intake speed > 0.5 m/s (> 1.6 ft/s) with 10 mm (3/8") ID, in accordance with EN 25667, ISO 5667 > 0.6 m/s (> 1.9 ft/s) with 10 mm (3/8") ID, in accordance with Ö 5893, US EPA 8.7.6 Suction height... -
Page 37: 8.10 Mechanical Construction
Liquiport 2010 CSP44 Technical data 8.9.3 Medium properties Sample media must be free of abrasive substances. Pay attention to the material compatibility of the wetted parts. 8.10 Mechanical construction 8.10.1 Dimensions --> "Installation" section 8.10.2 Weight Liquiport 2010 CSP44 Empty weight... -
Page 38: Index
Liquiport 2010 CSP44 Index Accessories ......13 Identification ......7 Approvals . - Page 39 Liquiport 2010 CSP44 Safety instructions ......4 Sampling Manual ......32 Sampling program.
- Page 40 BA00465C/07/EN/14.12 FM+SGML 6.0...
