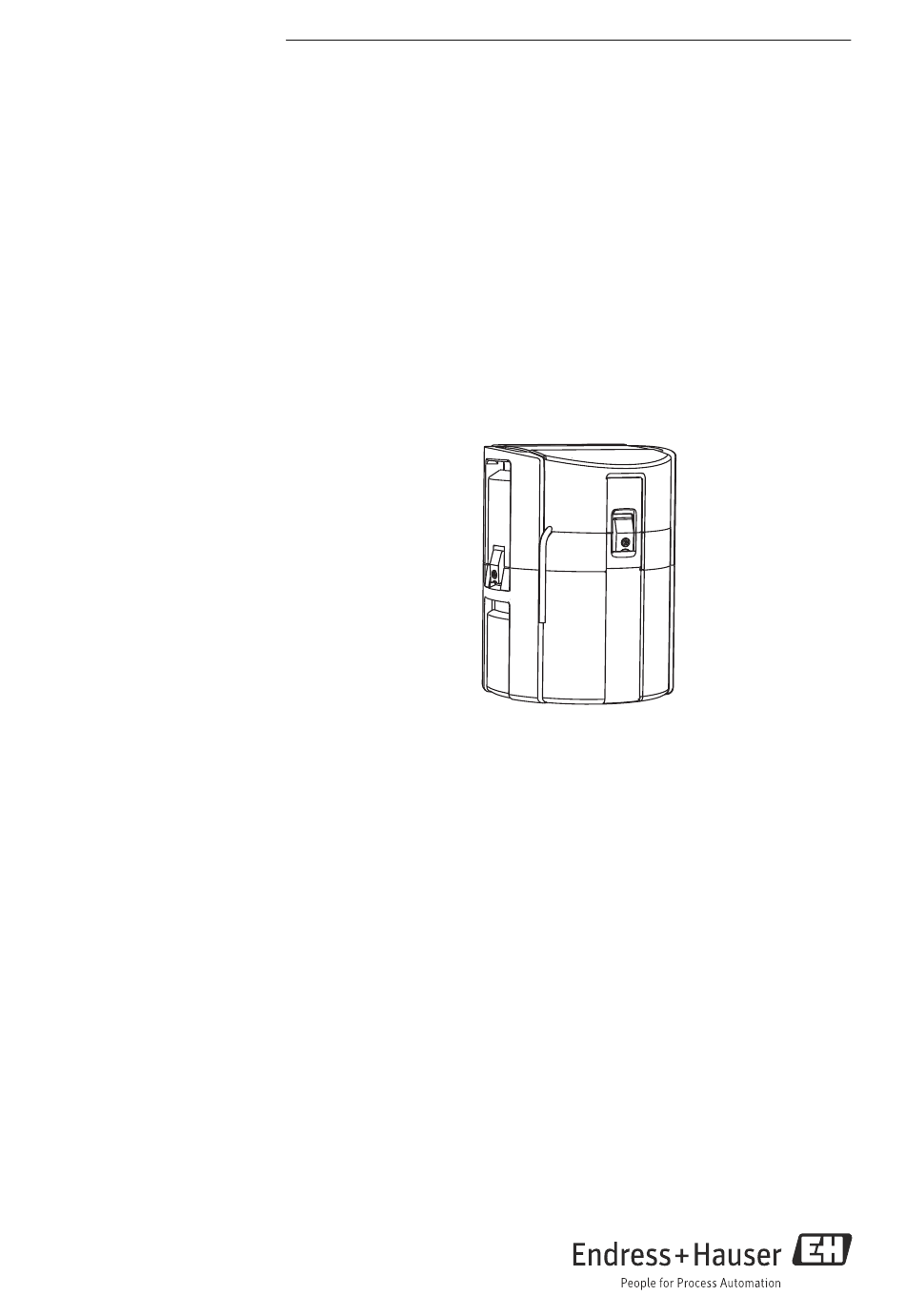

KA01166C/07/EN/03.15
71305688
Valid as of:
Softwareversion 01.05.02
Products
Brief Operating Instructions

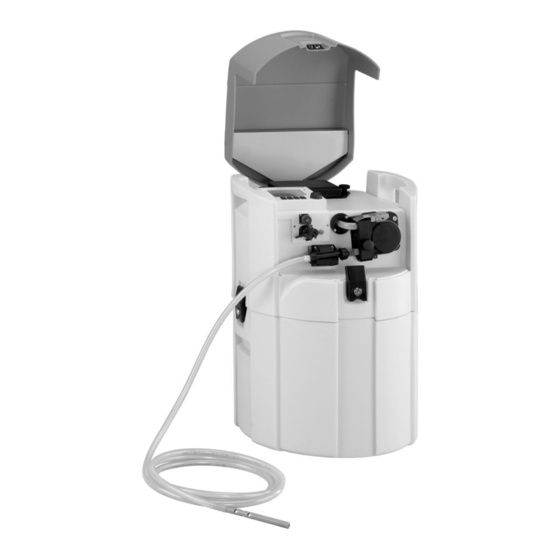

Liquiport CSP44
Automatic sampler for liquid media
These Instructions are Brief Operating Instructions; they are not
a substitute for the Operating Instructions pertaining to the
device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation via:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Liquiport CSP44
Summary of Contents for Endress+Hauser Liquiport CSP44
- Page 1 These Instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation via: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiport CSP44 Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App Endress+Hauser...
-
Page 3: Table Of Contents
Table of contents Liquiport CSP44 Table of contents 1 Document information............4 1.1 Warnings . -
Page 4: Document Information
Liquiport CSP44 Document information Document information Warnings The structure, signal words and safety colors of the signs comply with the specifications of ANSI Z535.6 ("Product safety information in product manuals, instructions and other collateral materials"). Safety message structure Meaning This symbol alerts you to a dangerous situation . -
Page 5: Documentation
Document information Liquiport CSP44 Documentation The following manuals which are available on the product pages complement these Brief Operating Instructions: • Operating Instructions Liquiport CSP44, BA00465C – Device description – Commissioning – Operation – Software description (apart from Memosens) – Device-specific diagnostics and troubleshooting –... -
Page 6: Basic Safety Instructions
Liquiport CSP44 Basic safety instructions Basic safety instructions Requirements for personnel ‣ Installation, commissioning, operation and maintenance of the measuring system must only be carried out by specially trained technical personnel. ‣ The technical personnel must be authorized by the system operator to perform the specified tasks. -
Page 7: Operational Safety
Basic safety instructions Liquiport CSP44 Operational safety ‣ Before commissioning the entire measuring point, ensure that all the connections are correct. Ensure that electric cables and hose connections are not damaged. ‣ Do not operate damaged products and secure them against unintentional commissioning. -
Page 8: Incoming Acceptance And Product Identification
Liquiport CSP44 Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance 1. Make sure the packaging is undamaged. Inform your supplier of any damage to the packaging. Keep the damaged packaging until any issues have been resolved. -
Page 9: Scope Of Delivery
Incoming acceptance and product identification Liquiport CSP44 3.2.2 Identifying the product The order code and serial number of your device can be found in the following locations: • On the nameplate • In the delivery papers To find out the version of your device, enterthe order code indicated on the nameplate into the search screen at the following address: www.endress.com/order-ident... -
Page 10: Installation
Liquiport CSP44 Installation Installation Installation conditions 4.1.1 Dimensions 480 (18.9) a0013473 Fig. 1: Standard version. Engineering unit mm (in). Endress+Hauser... - Page 11 Installation Liquiport CSP44 4.1.2 Mounting location a0013474 Fig. 2: Mounting location of Liquiport 2010 CSP44 The suction line must be routed with a downward slope to the sampling point. Avoid siphoning! Note the following when mounting the device: • Place the device on a level surface.
-
Page 12: Connecting The Suction Line
Liquiport CSP44 Installation 4.1.3 Connection for sampling • Maximum suction height: 8 m (26 ft) • Maximum hose length: 30 m (98 ft) • Hose connection diameter: 10 mm (3/8") internal diameter • Intake speed: > 0.5 m/s (> 1.6 ft/s) in accordance with EN 25667, ISO 5667 >... -
Page 13: Electrical Connection
Electrical connection Liquiport CSP44 Electrical connection WARNING Danger due to damage of the unit ‣ If it is assumed that the unit can no longer be operated safely (e.g. by visible damage), it must immediately be taken out of operation. Ensure that the unit is secured against unintentional use. -
Page 14: Signal Cable Connection (Optional)
Liquiport CSP44 Electrical connection Signal cable connection (optional) a0014162 Fig. 3: Pin connection and wiring diagram for the signal cable (option K3) Power supply U: 24 V max. 30 mA load Binary inputs BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary outputs BO: only low voltage Ui ≤... - Page 15 Electrical connection Liquiport CSP44 a0014197 Fig. 4: Pin connection and wiring diagram for the signal cable (option K4) Power supply U: 24 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary output BO: only low voltage Ui ≤...
-
Page 16: Sensor Connection (Optional)
Liquiport CSP44 Electrical connection a0014198 Fig. 5: Pin connection and wiring diagram for the signal cable (option K5) Power supply U: 24 V max. 30 mA load Binary input BI: > 20 ms, only low voltage Ui ≤ 30 V DC Binary output BO: only low voltage Ui ≤... -
Page 17: Guaranteeing The Degree Of Protection
Electrical connection Liquiport CSP44 Guaranteeing the degree of protection Only the mechanical and electrical connections that are described in this manual, and are necessary for the required, designated application, may be established on the device supplied. ‣ Please play close attention when performing the work as degrees of protection individually... -
Page 18: Operation Options
Liquiport CSP44 Operation options Operation options Overview 6.1.1 Display and operating elements Display (red background in the event of an error) Navigator (jog/shuttle and press/hold function) Soft keys (function depends on the menu) a0013350-de Fig. 7: Overview of operation 6.1.2 Display... -
Page 19: Access To The Operating Menu Via The Local Display
Operation options Liquiport CSP44 Access to the operating menu via the local display 6.2.1 Operation concept a0013353-de a0013354-de Fig. 9: Pressing the soft key: selecting the menu directly Fig. 10: Turning the navigator: moving the cursor in the menu a0013355-de a0013356-de Fig. -
Page 20: Configuration Options
Liquiport CSP44 Operation options 6.2.2 Locking or unlocking operating keys Locking operating keys 1. Press the navigator for longer than 2 s. A context menu for locking the operating keys is displayed. You have the choice of locking the keys with or without password protection. "With password"... - Page 21 Operation options Liquiport CSP44 6.3.3 Numerical values • You are changing a variable. • The maximum and minimum values for this variable are shown on the display. • Set a value within this range. • Example: Menu/Operation/Display/Contrast 6.3.4 Actions • You trigger an action with the appropriate function.
- Page 22 Liquiport CSP44 Operation options 6.3.5 Customized text • You are assigning an individual designation. • Enter a text. You can use the characters in the editor for this purpose (upper-case and lower-case letters, numbers and special characters). • Using the soft keys, you can: –...
- Page 23 Operation options Liquiport CSP44 6.3.6 Tables • Tables are required in order to represent mathematical functions. • To edit a table, use the navigator to move through the rows and columns and change the cell values. • You only edit numerical values. The controller automatically takes units of measure into account.
-
Page 24: Commissioning
Liquiport CSP44 Commissioning Commissioning Function check WARNING Incorrect connection, incorrect supply voltage Safety risks for staff and incorrect operation of the device ‣ Check that all connections have been established correctly in accordance with the wiring diagram. ‣ Make sure that the supply voltage matches the voltage indicated on the nameplate. - Page 25 Commissioning Liquiport CSP44 7.2.2 Initial screen You can find the following menu items and soft keys on the initial screen: • Select sampling program • Edit program %0V • Start program %0V • MENU • MAN • MEAS • MODE 7.2.3 Display settings...
- Page 26 Liquiport CSP44 Commissioning Path: Menu/Operation/Display Function Options Info Meas. screen Options Once you have defined your own measuring screen, you • Off can switch it on here. You can find the new screen under • On "User definable screens" in the "All measured values"...
- Page 27 Commissioning Liquiport CSP44 Path: Menu/Operation/Display Function Options Info Current program: Read only The name of the sampling program currently selected is displayed. Status Read only Display "Active": The sampling program has been started and the device takes a sample as per the set parameters.
-
Page 28: Basic Setup
Liquiport CSP44 Commissioning Basic setup Making basic settings 1. Go to the "Setup/Basic setup" menu. Make the following settings: 2. Device tag: Give your device a name of your choice (max. 32 characters). 3. Set date: Correct the set date if necessary. -
Page 29: Sampling Programs
Commissioning Liquiport CSP44 Sampling programs 7.4.1 Differences between program types The following overview shows the differences between the Basic, Standard and Advanced program types: Basic: single program Sampling program (1) Ÿ activation immediate Program stop Program start: Ÿ time-, flow proportional Ÿ... - Page 30 Liquiport CSP44 Commissioning 7.4.2 Manual sampling 1. Manual sampling is triggered by the "MAN" soft key. This pauses any program currently running. The current bottle configuration and the current sample volume are displayed. The distributor position and sample volume can be changed.
- Page 31 Commissioning Liquiport CSP44 7.4.3 Programming for automatic sampling Create a simple sampling program in the general overview under "Select sampling program/New/Basic" or in the "Menu/Setup/Sampling programs/Setup program/New/Basic" menu: • Enter the "Program name". • The settings from the "Basic setup" for bottle configuration and bottle volume are displayed.
- Page 32 www.addresses.endress.com...
