KA01166C/07/EN/06.17
71390876
Products
Brief Operating Instructions
Liquiport 2010 CSP44
Automatic sampler for liquid media
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information on the device can be found in the
Operating Instructions and in the other documentation
available at:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liquiport 2010 CSP44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Liquiport 2010 CSP44

Summary of Contents for Endress+Hauser Liquiport 2010 CSP44

  • Page 1 These Instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information on the device can be found in the Operating Instructions and in the other documentation available at: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Liquiport 2010 CSP44 Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Liquiport 2010 CSP44 Table of contents Table of contents Document information ............4 Warnings .

  • Page 4: Document Information

    Document information Liquiport 2010 CSP44 Document information Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣...

  • Page 5: Documentation

    Liquiport 2010 CSP44 Document information Documentation The following manuals which are available on the product pages on the internet complement these Operating Instructions: • Operating Instructions for Liquiport CSP44, BA00465C – Device description – Commissioning – Operation – Software description (excluding sensor menus; these are described in a separate manual - see below) –...

  • Page 6: Basic Safety Instructions

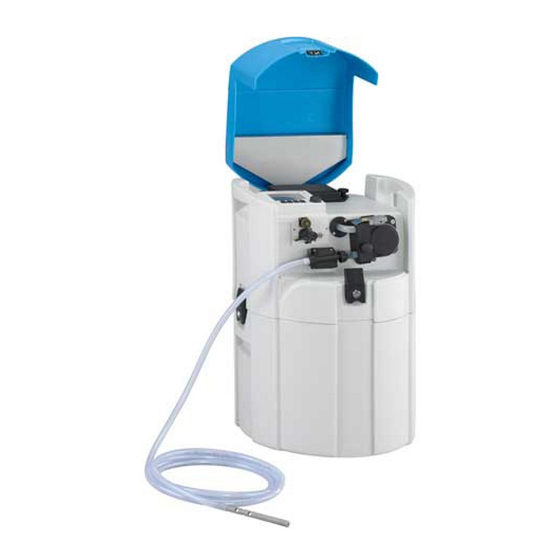

    Designated use Liquiport 2010 CSP44 is a portable sampler for liquid media in non-hazardous areas. The samples are taken discontinuously using a peristaltic pump and are then distributed into sampling containers.

  • Page 7: Operational Safety

    Liquiport 2010 CSP44 Basic safety instructions Operational safety Before commissioning the entire measuring point, verify that all connections are correct. Ensure that electrical cables and hose connections are undamaged. Do not operate damaged products, and safeguard them to ensure that they are not operated inadvertently.

  • Page 8: Incoming Acceptance And Product Identification

    Incoming acceptance and product identification Liquiport 2010 CSP44 Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged.  Notify your supplier of any damage to the packaging. Keep the damaged packaging until the matter has been settled.

  • Page 9: Scope Of Delivery

    Liquiport 2010 CSP44 Incoming acceptance and product identification Scope of delivery The scope of delivery comprises: • 1 Liquiport 2010 CSP44 with: – The ordered bottle configuration – Optional hardware • 1 print version of Brief Operating Instructions in the language ordered •...

  • Page 10: Installation

    Installation Liquiport 2010 CSP44 Installation Installation conditions 4.1.1 Dimensions 480 (18.9) A0013473  1 CSP44 standard version, dimensions in mm (in) Endress+Hauser...
  • Page 11 Liquiport 2010 CSP44 Installation 4.1.2 Installation site A0013474  2 Installation site, example The suction line must be routed with a downward slope to the sampling point. Avoid siphon formation! Note the following when erecting the device: • Erect the device on a level surface.
  • Page 12 Installation Liquiport 2010 CSP44 4.1.3 Connection for suctioning samples • Maximum suction height: 8 m (26 ft) • Maximum hose length: 30 m (98 ft) • Diameter of hose connection: 10 mm (3/8")) internal diameter • Intake speed: > 0.5 m/s (> 1.6 ft/s) as per EN 25667, ISO 5667 >...
  • Page 13 Liquiport 2010 CSP44 Installation Useful sampling accessories • Suction filter: Impedes coarser solids and solids which can cause clogging. • Immersion assembly: The adjustable immersion assembly fixes the suction line at the sampling point. Endress+Hauser...

  • Page 14: Installation

    Installation Liquiport 2010 CSP44 Installation Connecting the suction line When installing the device, take the installation conditions into account. Open the device cover at the front fastening clasp. Route the suction line from the sampling point to the device. Screw the suction line onto the device' s hose connection.

  • Page 15: Electrical Connection

    Liquiport 2010 CSP44 Electrical connection Electrical connection Connecting the sampler WARNING Device is live Incorrect connection may result in injury or death ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein.
  • Page 16 Electrical connection Liquiport 2010 CSP44 Plug the connectors on the device into the color-coded terminals of the battery (red --> red; black --> black). Make sure the connections are secure. Place the battery back into the battery compartment. The battery terminals must be toward the front.

  • Page 17: Connecting Modules And Sensors

    Liquiport 2010 CSP44 Electrical connection A0014207 Fixing screws Battery compartment cover Release the two securing screws (1). Remove the cover of the battery compartment (2). Remove the old batteries and release the plug-in connections. Connect the new batteries (pay attention to the battery polarity).

  • Page 18: Signal Cable Connection (Optional)

    Electrical connection Liquiport 2010 CSP44 Signal cable connection (optional) B 1+ B 1- B 2+ B 2- B 1+ B 1- B 2+ B 2- GY/PK RD/BU A0014162  4 Pin assignment and wiring diagram of signal cable (version K3) Auxiliary voltage U: 24 V max.
  • Page 19 Liquiport 2010 CSP44 Electrical connection B 1+ B 1- B 1+ B 1- GY/PK RD/BU A0014197  5 Pin assignment and wiring diagram of signal cable (version K4) Auxiliary voltage U: 24 V max. 30 mA load capacity Binary input BI: > 20 ms, only extra-low voltage Ui £ 30 V DC Binary output BO: only extra-low voltage Ui £...

  • Page 20: Ensuring The Degree Of Protection

    Electrical connection Liquiport 2010 CSP44 B 1+ B 1- B 1+ B 1- B 2+ B 2- I 1+ I 1- GY/PK I 2+ RD/BU I 2- A0014198  6 Pin assignment and wiring diagram of signal cable (version K5) Auxiliary voltage U: 24 V max.

  • Page 21: Post-Connection Check

    Liquiport 2010 CSP44 Electrical connection Post-connection check WARNING Connection errors The safety of people and of the measuring point is under threat. The manufacturer does not accept any responsibility for errors that result from failure to comply with the instructions in this manual.

  • Page 22: Operation Options

    Operation options Liquiport 2010 CSP44 Operation options Overview 6.1.1 Display and operating elements Display (with red display background in alarm condition) Navigator (jog/shuttle and press/hold EH_CSF 09:11:05 31.03.2015 function) Soft keys (function depends on menu) MODE A0025501  7 Overview of operation 6.1.2...

  • Page 23: Access To The Operating Menu Via The Local Display

    Liquiport 2010 CSP44 Operation options Access to the operating menu via the local display 6.2.1 Operating concept MODE MODE Turning the navigator: moving the cursor in the menu Pressing the soft key: selecting the menu directly Menu/Language MODE Turning the navigator: selecting a value (e.g. from a list)

  • Page 24: Configuration Options

    Operation options Liquiport 2010 CSP44 6.2.2 Locking or unlocking operating keys Locking operating keys ‣ Press the navigator for longer than 2 s.  A context menu for locking the operating keys is displayed. You have the choice of locking the keys with or without password protection. "With password"...
  • Page 25 Liquiport 2010 CSP44 Operation options 6.3.3 Numerical values • You are changing a variable. • The maximum and minimum values for this variable are shown on the display. • Set a value within this range. • Example: Menu/Operation/Display/Contrast Menu/...ration/Display/Contrast 6.3.4 Actions •...
  • Page 26 Operation options Liquiport 2010 CSP44 6.3.5 Free text • You are assigning an individual designation. • Enter a text. You can use the characters in the editor for this purpose (upper-case and lower-case letters, numbers and special characters). • Using the soft keys, you can: –...
  • Page 27 Liquiport 2010 CSP44 Operation options 6.3.6 Tables • Tables are needed to map mathematical functions or to enter irregular interval samples. • You edit a table by navigating through rows and columns with the navigator and changing the values of the cells.

  • Page 28: Commissioning

    Commissioning Liquiport 2010 CSP44 Commissioning Function check WARNING Incorrect connection, incorrect supply voltage Safety risks for staff and device malfunctions ‣ Check that all connections have been established correctly in accordance with the wiring diagram. ‣ Ensure that the supply voltage matches the voltage indicated on the nameplate.

  • Page 29: Basic Setup

    Liquiport 2010 CSP44 Commissioning Basic setup Making basic settings Device tag: Give your device any name of your choice (max. 32 characters). Set date: Correct the set date if necessary. Set time: Correct the set time if necessary. Number of bottles: Correct the set number of bottles if necessary.

  • Page 30: Sampling Programs

    Commissioning Liquiport 2010 CSP44 Sampling programs 7.4.1 Difference between program types The following box provides an overview of the differences between the Basic, Standard and Advanced program types. Basic (1 sampling program) Start condition: • Immediate activation Stop condition: • Immediate •...
  • Page 31 Liquiport 2010 CSP44 Commissioning 7.4.2 Manual sampling Manual sampling is triggered by the MAN soft key. This pauses any program currently running.  The current bottle configuration and the current sample volume are displayed. You can select the distributor position. In peristaltic systems, you can also change the sample volume.
  • Page 32 Commissioning Liquiport 2010 CSP44 Select the Bottle change mode after number of samples or time for average samples. With the option "Bottle change after a time", you can enter the change time and bottle synchronization (None, 1st bottle change time, 1st time of change + bottle number). The description for this can be found in the "Bottle synchronization"...
