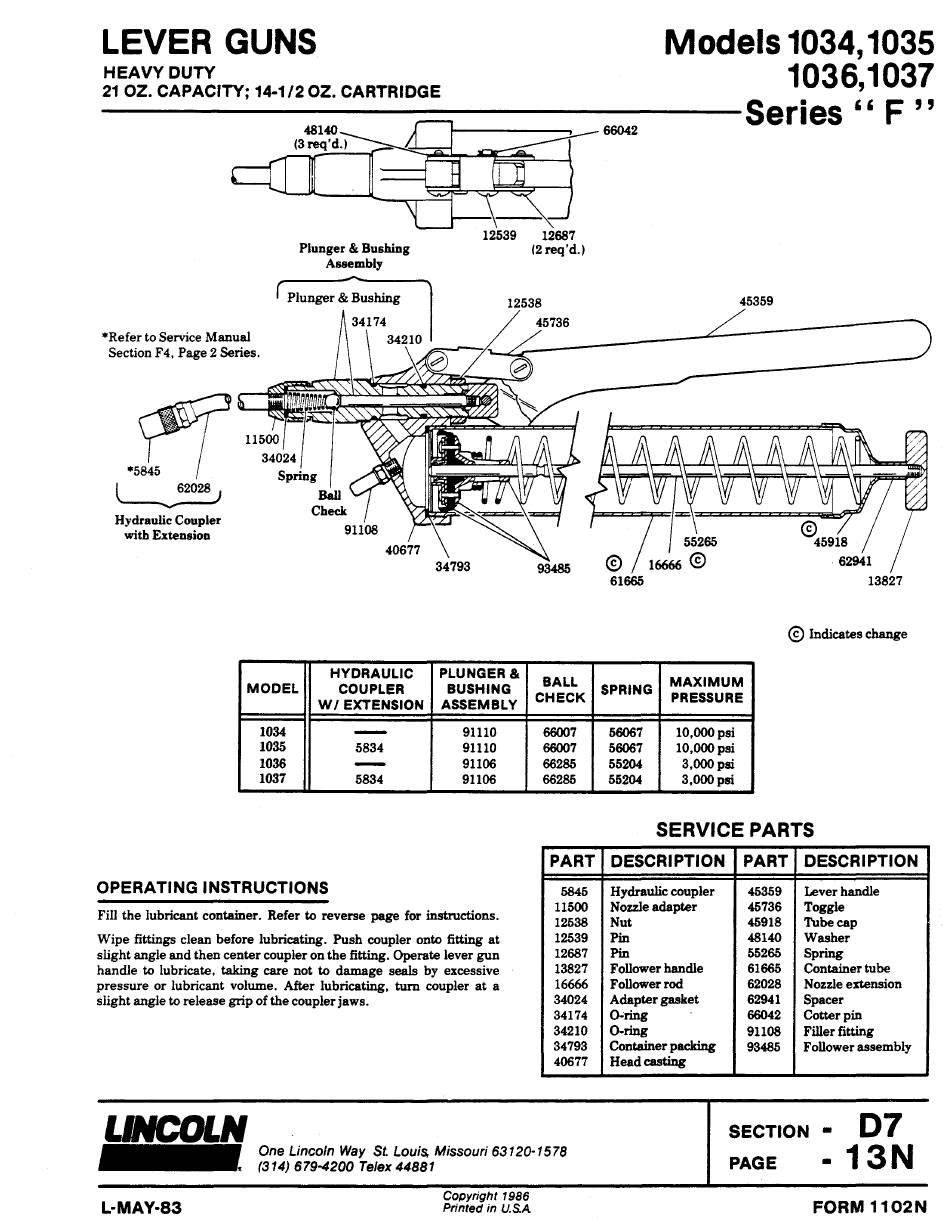

Lincoln F Series Quick Start Manual

LEVER GUNS Models 1034, 1035
HEAVY DUTY
21 OZ. CAPACITY; 14-1/2 OZ. CARTRIDGE
48140 66042
(3 req'd.)
12539 12667
Plunger & Bushing
(2 req'd.)
Assembly
1036, 1037
Series "F"
Plunger & Bushing
12538
45359
34174
45736
*Refer to Service Manual
Section F4, Page 2 Series.
34210
11500
34024
*5845
62028
Hydraulic Coupler
with Extension
Spring
Ball
Check
91108
40677
©
55265
45918
34793
95485
©
16666 ©
61666
HYDRAULIC PLUNGER &
MODEL
COUPLER BUSHING
BALL MAXIMUM
W/EXTENSION ASSEMBLY CHECK
SPRING PRESSURE
1034 91110 66007 56067 10,000 psi
1035
5834 91110 66007 56067
10,000 psi
1036
91106 66285
55204 3,000 psi
1037
5834 91106 66285 55204 3,000 psi
SERVICE PARTS
OPERATING INSTRUCTIONS
Fill the lubricant container. Refer to reverse page for instructions.
Wipe fittings clean before lubricating. Push coupler onto fitting at
slight angle and then center coupler on the fitting. Operate lever gun
handle to lubricate, taking care not to damage seals by excessive
pressure or lubricant volume. After lubricating, turn coupler at a
slight angle to release grip of the coupler jaws.
62941
13827
© Indicates change
PART DESCRIPTION PART DESCRIPTION
5845 Hydraulic coupler 45359 Lever handle
11500 Nozzle adapter
45736 Toggle
12538 Nut
45918
Tube cap
12539
Pin 48140 Washer
12687 Pin
55265 spring
13827 Follower handle 61665 Container tube
16666 Follower rod
62028 Nozzle extension
34024 Adapter gasket 62941 Spacer
34174 O-ring
66042 Cotter pin
34210 O-ring
91108 Filler fitting
34793
Container packing
93485 Follower assembly
40677 Head casting
LINCOLN
One Lincoln Way St. Louis Missouri 63120-1578
® (314) 679-4200 Telex 44881
SECTION
- D7
PAGE
-13N
L-MAY-83
Copyright 1986
Printed in U.S.A.
FORM 1102N
