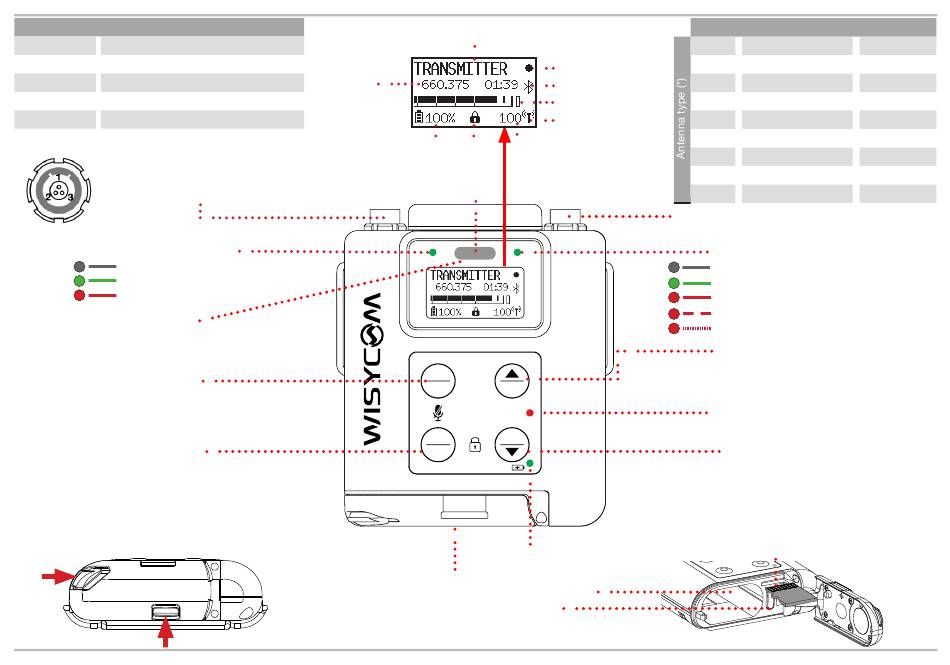

WisyCom MTP60 Quick User Manual page 2

Mic Mode Pinout
2 W 1 = GND / 3 = AF
2 W+B 1 = GND / 3 = AF+5,5 V
3 W 1 = GND / 2 = 5,5 V / 3 = AF
2 W & P 1 = GND / 2 = 3,1 V Ph / 3 = AF
2 W+B & P 1 = GND / 2 = 3,1 V Ph / 3 = AF + 5,5 V
INSTRUMENT 1 = GND / 3 = AF (High impedance)
Mic Input
Load a mic PRESET to suit your
wiring or enter the Audio menu
Audio LED
OFF: Audio is muted
GREEN: Audio is enabled
RED: Audio is peaking
IR Port
Quickly IR sync with legacy receivers.
Activate by going to IRDA screen
SEL / ON
Push to switch ON the device. Push together with
GAIN/UP to enter the main MENU. When in menu
single push to save and confirm selections.
EXIT / OFF
Log press to switch the unit OFF.
Short press to step back into menu
Press together with SEL/ON to mute/unmute the
audio
Press together to open
Transmitter name
Frequency
Group
Channel
Battery Locked
status
icon
IRDA port
SEL
MENU
ON GAIN
REC
EXIT CH
OFF
Charging Led
Battery compartment
Select battery type in the menu to optimise
SEL
MENU
ON GAIN
battery life.
REC
To Connect with Wisycom Manager
EXIT CH
OFF
Recording Icon
Bluetooth Icon
Audio bar
Tx PWR status
RF level
in mW
Antenna Connector (*) Type Lemo
Push to quickly access gain setup frequency
menu and/or scroll up while into the menu.
Fixed red when recording has started
Short press to access channel/group/frequency menu
and/or scroll down while into the menu.
Long press it with EXIT/OFF to lock the front panel
Micro SD card for internal recording.
Quickly enter recording menu by pressing GAIN+CH
USB-C
Label Code Band MHz
507 AWF30-B1-507 470-547
590 AWF30-B1-590 547-663
552 AWF30-B3-552 510-595
646 AWF30-B3-646 595-698
710 AWF30-710 663-760
796 AWF30S-796 760-832
808 AWF30-BP-808 806-810
950 AWF30-B8-950 940-960
1K1 AWF30-B6-1K1 960-1160
RF/Power LED
OFF: MTP60 is OFF
GREEN: Transmission is ON
RED: Transmission is OFF
RED SLOW BLINK: battery < 25%
RED FAST BLINK: battery < 12%
Gain Shortcut/Up
Recording Status Led
Ch Shortcut/Down
SD Card slot
