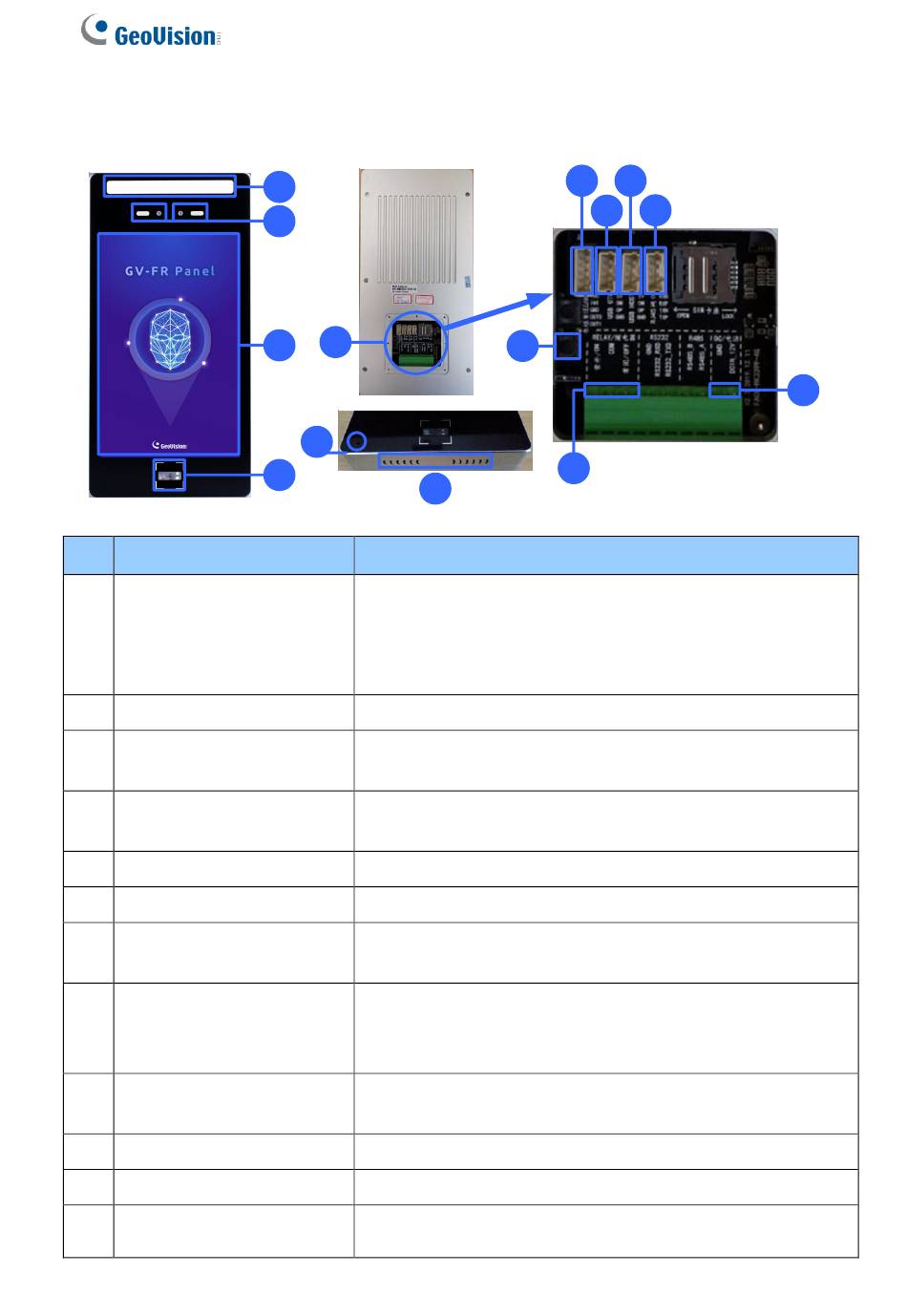

1.4 Overview
No. Name
1
LED Light
2
Built-in Cameras
3
Touchscreen Panel
4
QR Code Reader
5
Rear Panel
6
Reset Button
7
Wiegand Port
8
USB OTG PH2.0-4P Port
9
USB Host PH2.0-4P Port
10
RJ-45 Port
11
Relay Output
12
2-Pin Power connector
5
1
2
5
3
13
4
14
Function
•
White LED: Turns on LED lighting when its radar sensor
detects motion.
•
Green LED: Turns on when recognizing registered faces.
•
Red LED Turns on when detecting unknown faces.
Captures real-time live images at the front of the panel.
Displays the live images captured by the built-in cameras
and accesses its local settings.
Reads QR codes used for access control. The QR code LED
turns on when detecting motion around.
Contains all the ports of the GV-FR Panel, see No. 6 – 10.
Restarts the GV-FR Panel.
Connects to 3
Controller Integration.
Connects to a PC for data backup and/or firmware upgrade
via the supplied USB OTG PH2.0-4P cable
(currently non-functional).
Connects to a USB keyboard or mouse via the supplied USB
Host PH2.0-4P cable.
Connects to the network via the supplied RJ-45 cable.
Contains the following 3 relay pins: NO, COM and NC.
Connects to power via the supplied 2-pin power cable and an
optional power adapter.
7
9
8
10
6
11
rd
-party controllers. See Chapter 7 Third-Party
12
