Performance Data and Typical Characteristic Curves
www.ti.com
9.5

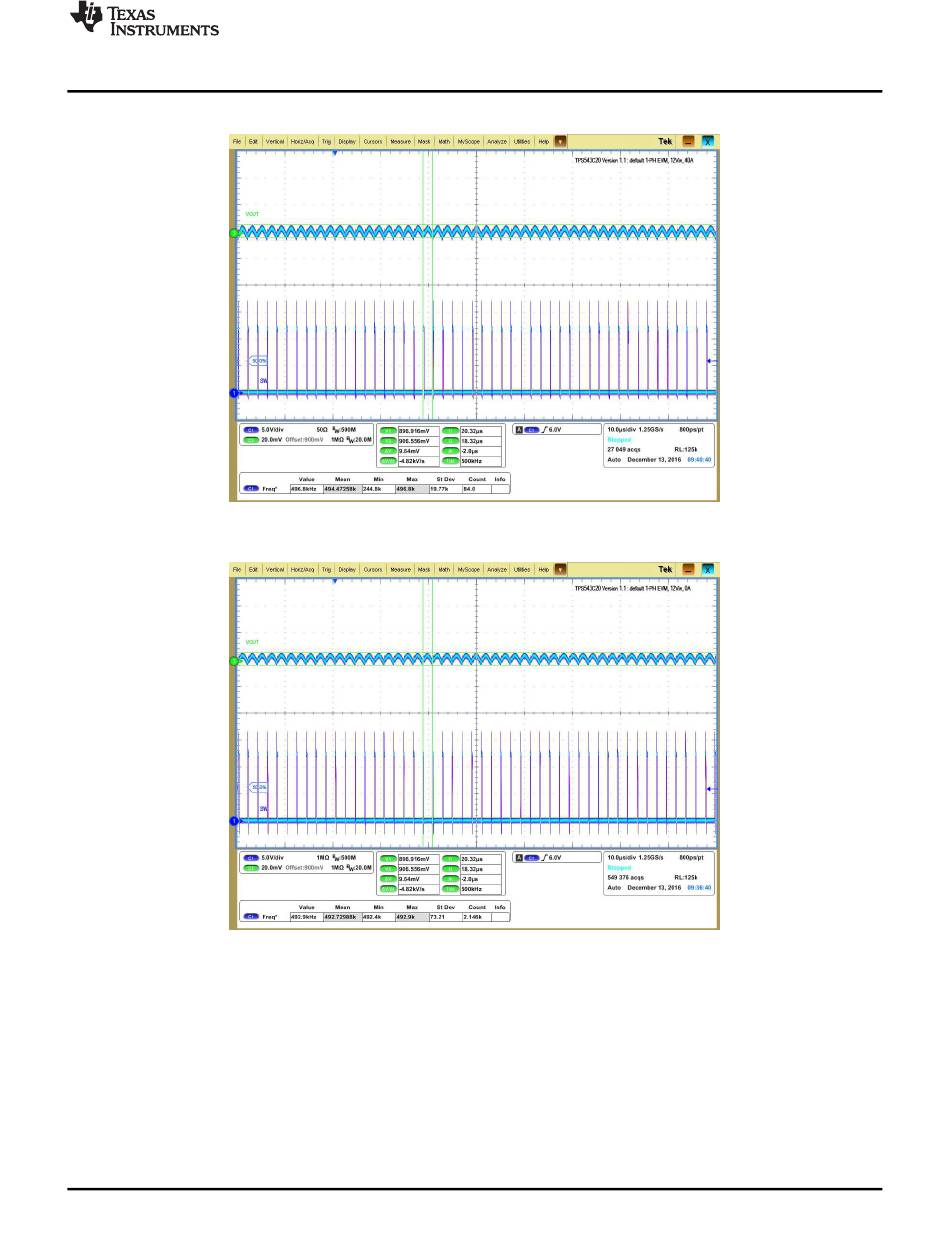

Output Ripple

Figure 8. Output Ripple and SW Node of 0.9-V Output at 12-V
, 40-A Output
IN
Figure 9. Output Ripple and SW Node of 0.9-V Output at 12-V
, 0-A Output
IN
13
SLUUBZ2 – December 2018
TPS543C20AEVM-054 40-A Single Phase Synchronous Step-Down
Converter
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
