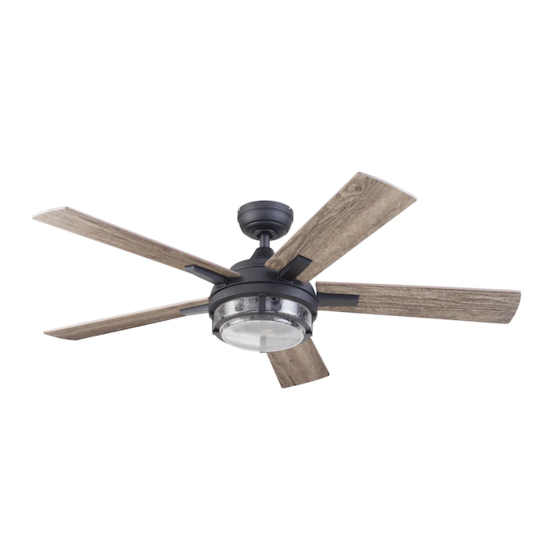

LF Harbor Breeze SUMMERSVILLE 42192 Manual

Hide thumbs

Advertisement

Table of Contents

HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at partsplus@lowes.com or visit www.lowespartsplus.com.
AS21311
SUMMERSVILLE
1
ITEM #3856486
CEILING FAN
MODEL #42192
Español p. 20
RATED FOR
DAMP LOCATIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harbor Breeze SUMMERSVILLE 42192 and is the answer not in the manual?

Questions and answers

Rick Brown
June 1, 2025

With power, the fan is on low and lights are flashing. Relearn didn’t help. Replaced batteries. All connections look good.

0
1 comments:
Mr. Anderson
June 1, 2025

The issue could be interference from another remote. If there are several fans nearby, turn off power to the other fans and re-sync the remote with the fan.

This answer is automatically generated

0
dan casson
May 31, 2025

remote control will not work on harbor breeze summersville ceiling fan led light does not light up

0
1 comments:
Mr. Anderson
May 31, 2025

The remote control may not be working because:

1. A power surge may have cleared the memory and the remote needs to be re-synced to the receiver.
2. The battery in the remote control may need to be replaced.
3. There could be interference from another remote.

The LED light may not be lighting up because:

1. The bulbs are not installed correctly.
2. The light kit wire plugs are not properly connected.
3. There is a faulty connection at the ceiling outlet box.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for LF Harbor Breeze SUMMERSVILLE 42192

Summary of Contents for LF Harbor Breeze SUMMERSVILLE 42192

  • Page 1 ITEM #3856486 SUMMERSVILLE CEILING FAN MODEL #42192 HARBOR BREEZE and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. Español p. 20 RATED FOR DAMP LOCATIONS ATTACH YOUR RECEIPT HERE Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-251-1003, 8 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents..............3 Hardware Contents.

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket Canopy (preassembled to Mounting Bracket [D]) Canopy Cover (preassembled to Canopy [E]) Motor Assembly Fitter Plate (preassembled to Motor Assembly [G]) Fitter Plate Screw (preassembled to Fitter Plate [H]) Mounting Bracket Screw (preassembled to Mounting Bracket [D]) Set Screw (preassembled to Motor Assembly [G])

  • Page 4: Hardware Contents

    HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Motor Screw Qty. 1 Qty. 15 Qty. 15 Qty. 15 + 1 extra + 1 extra + 1 extra + 1 extra...

  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199.

  • Page 6: Preparation

    SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured.

  • Page 7: Initial Installation

    INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft.
  • Page 8 INITIAL INSTALLATION 4. Loosen all four mounting bracket screws (J) on mounting bracket (D), then completely remove the two mounting bracket screws (J) from the round holes of canopy (E). Set aside for later use. Detach mounting bracket (D) from canopy (E). 5.

  • Page 9: Standard Or Angle Mounting Instructions

    STANDARD OR ANGLE MOUNTING INSTRUCTIONS 7. Insert the downrod (A) through the canopy (E) and yoke cover (L). Feed the wires from the motor assembly (G) through the downrod (A). 8. Slide the downrod (A) into the yoke of the motor assembly (G), align the holes, then re-install the downrod clip (C) and downrod pin (B).
  • Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 10. If you decided to cut back the lead wire in Step 9, strip 1/2 in. of insulation from the end of the wires. Twist the stripped ends of each strand of wire within the insulation with pliers (not included).

  • Page 11: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

  • Page 12: Final Installation

    FINAL INSTALLATION 1. Align the canopy (E) over the loose mounting bracket screws (J) preassembled on mounting bracket (D) and turn canopy (E) in a clockwise direction. Secure the canopy (E) with the mounting bracket screws (J) previously removed (Step 4, page 8). Tighten all mounting bracket screws (J) securely.
  • Page 13 FINAL INSTALLATION 4. Remove one of the three fitter plate screws (I) located on the underside of the motor assembly (G) and loosen the other two screws. Connect the 9-pin connector from the fitter plate (H) to the 9-pin connector from the light kit (O).
  • Page 14 FINAL INSTALLATION 7. Remove the battery cover from the back of the remote found in remote pack (N). Insert the battery from remote pack (N) into the remote; ensuring the polarity of the battery matches the polarity indicated in the battery compartment -- positive (+) to positive (+) and negative (-) to negative (-).

  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release the following buttons: Fan Off - Turns the power to fan off. LED Indicator Light On/Off - Tap the light control button to turn the Fan Off light off and on.

  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Bulb Replacement: Use 40-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not recommended for this item.
  • Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade arms 1. Check and tighten all screws that hold are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.

  • Page 18: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.

  • Page 19: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com. PART DESCRIPTION PART# Downrod 4L000013400 Mounting Bracket 4L000014050 Canopy 4L000015180 Canopy Cover...

This manual is also suitable for:

3856486

Table of Contents
