Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
SM20028

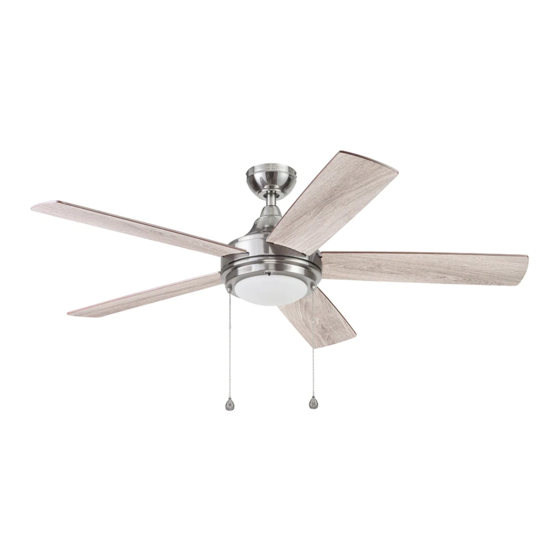

FLORENCE CEILING FAN
1
ITEM #1971064, 1971065
MODEL #42127, 42128
Spanish p. 20
Advertisement
Table of Contents
Related Manuals for LF Harbor Breeze FLORENCE 42127
Summary of Contents for LF Harbor Breeze FLORENCE 42127
- Page 1 FLORENCE CEILING FAN MODEL #42127, 42128 Spanish p. 20 Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ..............3 Hardware Contents . -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Light Kit Motor Assembly Fitter Plate (preassembled to Motor Assembly [H]) Yoke Cover Fitter Plate Screw (preassembled to Fitter Plate [I]) Blade... -
Page 4: Hardware Contents
HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Pull Chain Extension Qty. 3 Qty. 15 Qty. 15 Qty. 2 + 1 extra + 1 extra + 1 extra... -
Page 5: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. -
Page 6: Preparation
SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured. -
Page 7: Initial Installation
INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard mounting is best suited for ceilings 8 ft. - Page 8 INITIAL INSTALLATION 4. Loosen all four preassembled mounting bracket screws (P), then completely remove the two mounting bracket screws (P) from the round holes of canopy (E). Set aside for later use. Detach mounting bracket (D) from canopy (E). 5. Attach mounting bracket (D) to outlet box (not Standard included) using screws and washers provided with Mounting...
-
Page 9: Standard Or Angle Mounting Instructions
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Remove the downrod clip (C) and downrod pin (B) from the downrod (A). Then partially loosen the set screws (Q) in the yoke at the top of the motor housing (H). 2. Insert the downrod (A) through the canopy (E) and yoke cover (J). - Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner: Take the lead wires and make sure you have pulled them all the way through the top of the downrod.
-
Page 11: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use. -
Page 12: Final Installation
FINAL INSTALLATION 1. Align the canopy (E) over the loose mounting bracket screws (P) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (P) and rotate the canopy (E) clockwise. Keyhole 2. Secure the canopy (E) with the mounting bracket screws (P) previously removed (Step 4, page 8). - Page 13 FINAL INSTALLATION 4. Remove one of the three fitter plate screws (K) located on the underside of the motor assembly (H) and loosen the other two screws. Align the key slots of the light pan (N) with the loosened fitter plate screws (K) and turn the light pan (N) clockwise.
- Page 14 FINAL INSTALLATION 7. Attach the pull chain extensions (DD) or custom pull chain extensions (not included) to the fan and light pull chains. Note: When facing the reverse switch, the pull chain for the fan is on the right and the pull chain for the light is on the left.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. Reverse Switch In warmer weather, push the reverse switch to the left which will result in downward airflow creating a wind chill effect (Fig 2a). -
Page 16: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Total fixture wattage is 18.5 watts;... - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade arms 1. Check and tighten all screws that hold are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.
-
Page 18: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 19: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION 1971064 1971065 PART# PART# Downrod 4L000006400 4L000006330 Mounting Bracket 4L000006410 4L000006350 Canopy 4L000002220 4L000008280 Canopy Cover 4L000000830 4L000008290 Light Kit...
