CARDIOSTRONG CST-ASS004 Operating Instructions

Operating Instructions
Art. No. CST-ASS004
TF
1 GENERAL SAFETY INSTRUCTIONS
1.1 Personal Safety
⚠ WARNING
+ Before you start using the device, you should check with your general
physician whether it is suitable for you.
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ People with disabilities must have a medical license and must be
under strict observation when using the equipment.
+ The equipment is strictly for use by one person at a time
+ Keep your hands, feet and other body parts, hair, clothing, jewellery
and other objects well clear of moving parts.
+ If you experience any unusual discomfort during use, turn the device
off and do not use it any further. Contact your general physician.
⚠ CAUTION
+ This device is not a medical device. This device should never replace
medical treatment.
࣑ ATTENTION
+ Do not insert any objects of any kind into the openings of the device.
+ Do not place any heavy objects on the device.
1.2 Set-Up Place
⚠ WARNING
+ Do not place the equipment in main corridors or escape routes.
+ To prevent fire, do not place the device near or in areas with high heat
(e.g. near a heater).
࣑ ATTENTION
+ The device may only be used in one building, in sufficiently tempered
and dry rooms (ambient temperatures between 10°C and 35°C).
The equipment should not be used outdoors or in rooms with high
humidity (over 70%) like swimming pools.
CSTASS004.01.01
2 TECHNICAL DATA
Article weight (gross, incl. packaging): 2,15 kg
Article weight (net, without packaging): 2 kg
Packaging dimensions (L x W x H): 38 cm x 30 cm x 18 cm
Set-up dimensions (L x W x H): 44 cm x 38 cm x 28 cm
Folded dimensions (L x W x H): 27 cm x 38 cm x 16 cm
Maximum load: 40 kg
3 ASSEMBLY AND FOLDING MECHANISM
3.1 Assembly

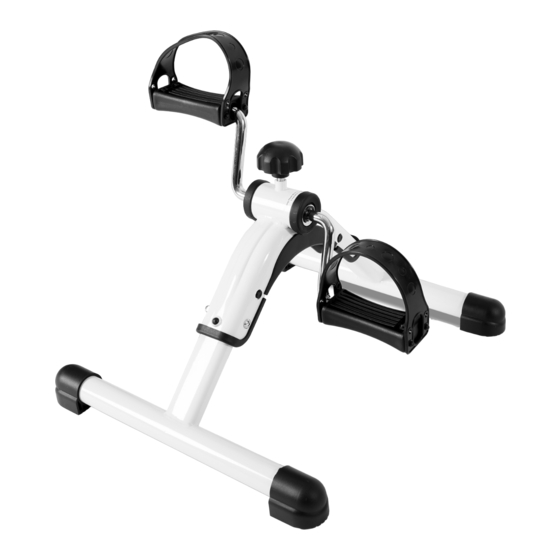

1. Unfold the Mini Bike.
2. Insert the resistance regulator.
3. Adjust the resistance with the regulator.
Resistance regulator
3.2 Folding Mechanism
1. Press the ball pin.
2. Fold the front tube.
3. Fold the rear tube.
The Mini Bike can now safely be stored or transported.
Ball pin
Folded Mini Bike
