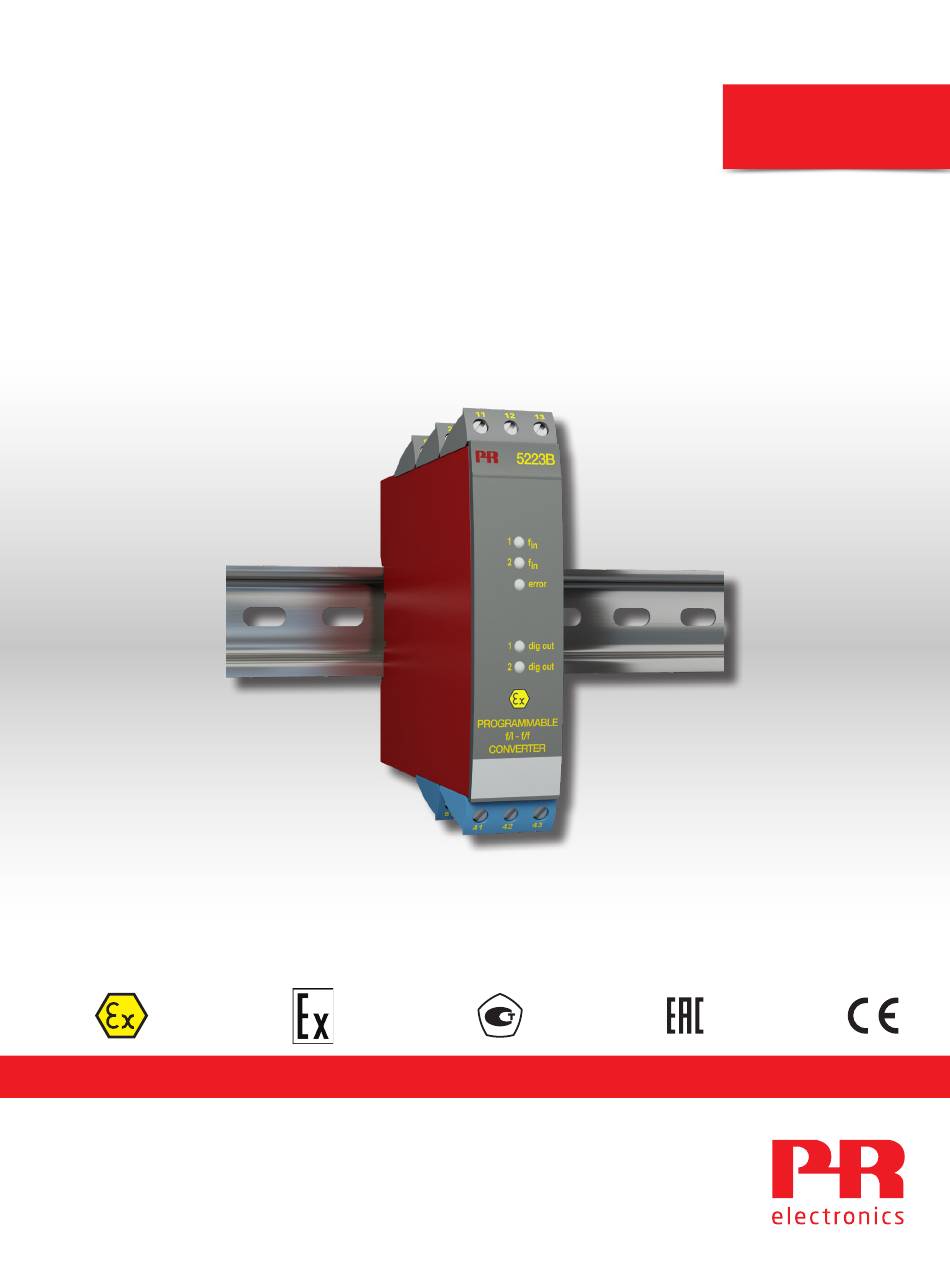

- Page 1 PERFORMANCE MADE SMARTER Product manual 5223 Programmable f/I - f/f converter T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY...
- Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
-
Page 3: Table Of Contents
Programmable f/I - f/f converter 5223 Table of contents Warning ....................Symbol identification . -
Page 4: Warning
Troubleshooting the device. VOLTAGE Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning To keep the safety distances, the relay contacts on the device must not be connected to both hazardous and non-hazardous voltages at the same time. -
Page 5: Safety Instructions
Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location. -
Page 6: How To Demount System 5000
How to demount system 5000 First, remember to demount the connectors with hazardous voltages. Picture 1: By lifting the bottom lock, the device is detached from the DIN rail. Picture 2: Then, by lifting the upper lock and pulling the front plate simultaneously, the PCB is removed. -
Page 7: Applications

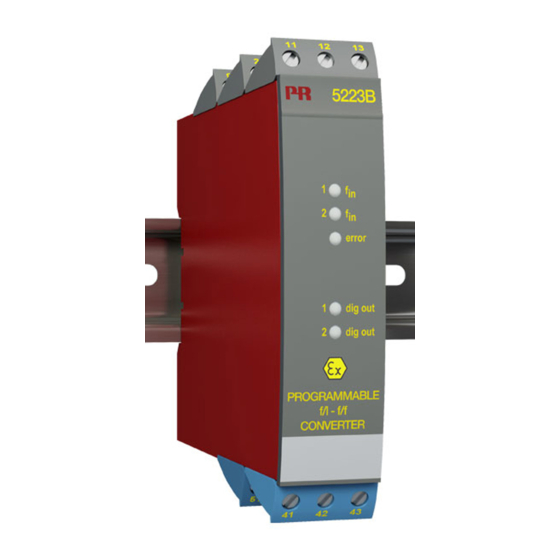

Programmable f/I - f/f converter 5223 • Pulse calculator • Frequency generator • Galvanic isolation, optional ATEX Ex • Analog current and voltage output • PNP / NPN output, optional relays • Universal supply In general • By way of a standard PC and the Loop Link programming kit, the PR 5223 f/I - f/f converter is configured acc. to the requested function. -
Page 8: Relay Outputs
• The action on the outputs can be inverted, and the hysteresis can be set acc. to your specifications. • At power up, shifts on the outputs can be delayed for up to 999 s. • NPN and PNP outputs for external relay, electromechanical counter, PLC input, or equivalent load. •... -
Page 9: Order
Order Type Version Output 5223 Standard Analog + NPN / PNP ATEX Ex Analog + relay output Electrical specifications Environmental conditions Operating temperature ....... . -20°C to +60°C Calibration temperature. - Page 10 Max. frequency (with filter) ......50 Hz Programmable trig level....... . 0.025...6.5 V (nom.) 1...8 mA (nom.) NAMUR input acc.
- Page 11 Frequency generator Min. period ........50 µs Max.
-
Page 12: 5223 Connection To Loop Link
5223 connection to Loop Link Supply C O M Loop Link Comm. 5223 5223V103-UK... -
Page 13: Block Diagram - 5223A
Block diagram - 5223A Front comm. Input gnd. Supply 5 … 17 VDC 24V … 230VAC Supply 24V … 250VDC 5...17V+ Vreg. Relay N.O. or PNP/NPN Error Dig. out Vreg. Dig. out 1 2 x relay f in 1 Relay N.O. / Dig. gnd. 2 x NPN / PNP Dig.out 1 Sup. - Page 14 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
- Page 15 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
