Summary of Contents for BETCO Lil Bertha XSM 24

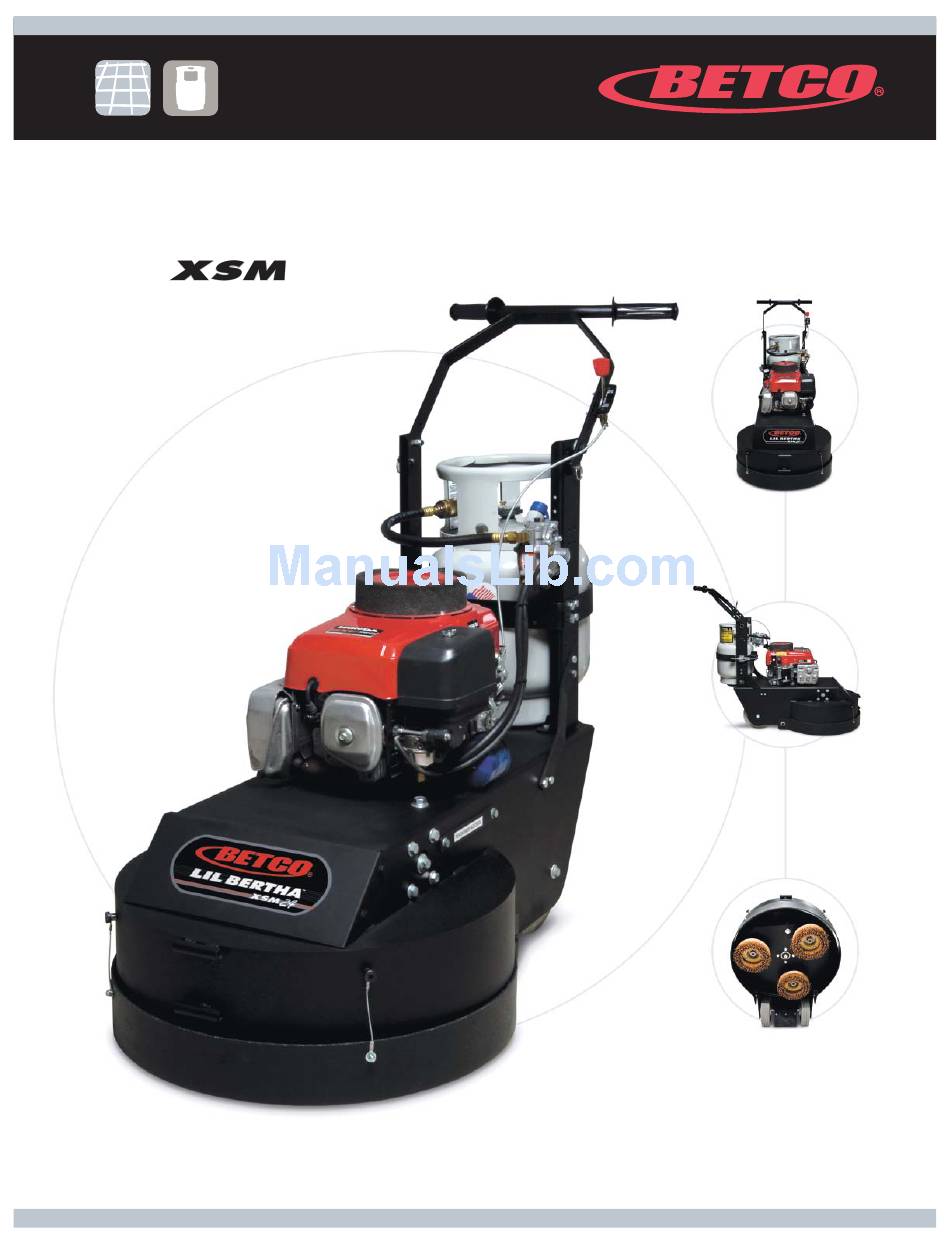

- Page 1 E88398-00 24" Extreme Strip ™ LIL BERTHA LIL BERTHA and Scrub Machine 24 24 24 Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Carbon Monoxide Warning ..........3 Safety ................4 Tank Use and Storage ............5 Starting and Stopping the Honda Engine ......5 Operator Preparation ............6 Major Assemblies ............7 Handle Bar ..............8 - 9 Lower Handle Support ..........10 - 11 Regulator Assembly ..........12 - 13 110V Starter Button ..........12 - 13 Honda Engine Assembly .........14 - 15... -
Page 3: Carbon Monoxide Warning
WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confi ned Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms Train your employees to know the warning signs of carbon monoxide poisoning. -
Page 4: Safety
SAFETY lmportant Safety Information All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas” information below. Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation. -
Page 5: Tank Use And Storage
TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the OPD (Overfl ow Protection Device) vapor withdrawal type cylinder. These style tanks have a triangle shaped valve handle. -
Page 6: Operator Preparation
OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank fi lled, you must make sure the tank is never over-fi lled. •... -
Page 7: Major Assemblies
MAJOR ASSEMBLIES... -
Page 8: Handle Bar
HANDLE BAR... -
Page 10: Lower Handle Support
LOWER HANDLE SUPPORT... -
Page 12: Regulator Assembly
REGULATOR ASSEMBLY E12298 E12359 E10751 E10734 E10084 E10080 E10083 E10077 E10074 E10752 110V STARTER SWITCH E10595 E12277 E10596... - Page 13 PART Description QTY. NUMBER E10074 Hose, 6 LOLA Fuel Line 9.5mm ID x 16mm OD E10077 Fitting, 1/8" MNPT x 1/8" Barb, Hose Barb E10080 Fitting, 3/8 MNPT x 3/8 Barb, Hose Barb, Brass E10083 Fitting, 1/8" MNPT x 1/8" FNPT, Street Elbow, Brass E10084 Fitting, 3/8 MNPT x 3/8 MJIC, 90 Elbow, Brass E10708...
-
Page 14: Honda Engine Assembly
HONDA ENGINE ASSEMBLY... -
Page 16: Deck Assembly
DECK ASSEMBLY E87990 E12410 E88315 E87989 E81063 E86235 E86118 E81089 E88314 E81067 E81089 E81067 E11164 E11146 E81089 E11163 E11170 E81067 E12476 E11340 E11420 E88323 E11335 E11416 E86125 E87988 E12476 E11420 E10120 E11501 E10385 E11420 E81066 E11351 E10121 E11135 E10120 E81066 E83629 E86238... - Page 17 E86125 Screw, #10-32 x 1.000 Hex Head, Zinc E86235 Deck 24" Strip Machine E86238 Splash Skirt, 24" Model E87988 Decal, BETCO Lil Bertha E87989 Transport Wheel Bracket E87990 Pin, 3/8" x 4" Detent with Ring E88314 Handle Support Left E88315...
-
Page 18: Main Drive System
MAIN DRIVE SYSTEM... -
Page 20: Pivot Bracket
PIVOT BRACKET ASSEMBLY E11418 E12447 E11347 E11418 E87987 E12447 E11501 E11347 E10117 E12447 E86234 E86224 E88321 E11347 E12447 E11430... - Page 21 PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E11347 Flange Bearing AMI UCF 205 Set Screws 2.75 Bolt Spacing E11418 Nut, 7/16"-14, Nylon Lock, Grade 5, Zinc E11430 Screw, 7/16"-14 x 2.250 Hex Head, Grade 5, Zinc E11501 Washer, 7/16"...
-
Page 22: Brush Plate
BRUSH PLATE ASSEMBLY... -
Page 24: Parts List
PARTS LIST Page Part # Description E11170 Tensioner Access Cover Page Part # Description E11289 Key 1/4"" x 1/4"" x 1.500"" E10022 Honda Voltage Regulator E11335 Wheel 10 inch 2.50 W E11340 3/4" OD Wheel Axle E10074 Hose, 6 LOLA Fuel Line 9.5mm ID x 16mm OD x 17" L E10077 Fitting, 1/8""... - Page 25 Belt, BB68 Double V E87986 Pin, 5/16"" x 3/4"" Detent with Ring E87987 Screw, 7/16"-14 x 1.000 Hex Head, Grade 5, Zinc E87988 Decal, BETCO Lil Bertha E87989 Transport Wheel Bracket E87990 Pin, 3/8"" x 4"" Detent with Ring E87991 Screw, 5/16"-18 x 1.750 Hex Head, Grade 5, Zinc...
-
Page 26: Engine Maintenance
ENGINE MAINTENANCE HONDA 13 HP PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake fi lter General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc. -
Page 27: Electrical Schematic
ELECTRICAL SCHEMATIC E12411 -- 10' Starter Cord (Not Shown) Lower Handle Assembly E10022 Ignition Coil E86119 Hour Meter, SenDEC 5-80V... -
Page 28: Main Drive Belt
MAIN DRIVE BELT Removal Remove main drive belt tensioner access plate. Remove front access panel bolts and panel. Loosen main drive belt tensioner bolt using a 3/4" wrench. Through the front access slip the belt up over the main drive pulley of the brush drive plate. You can finish removing the main drive belt through the rear opening of the machine under the handle. -
Page 29: Brush Plate And Belt
BRUSH PLATE & BELT... -
Page 30: Brush Change
BRUSH CHANGE Remove propane tank. Remove front access panel to gain access to the brush drive shaft tops. Lay the machine on its side with the brush drive plate installed. The brush drive shaft and brush mount plate are LEFT HAND THREADS. Using a 3/4"... -
Page 31: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Loose wire or bad connection Check wires and connections Engine will not turn Bad electrical component Replace bad component over Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in Open propane tank shut off valve completely off position Low oil... -
Page 32: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
