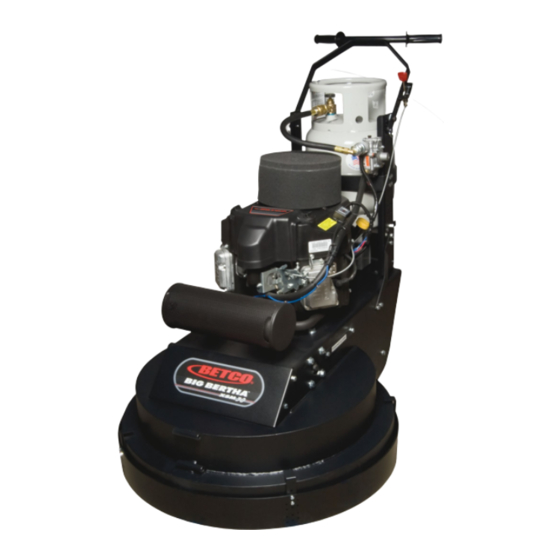

BETCO BIG BERTHA XSM 30 Operator And Parts Manual

30" extreme strip and scrub machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

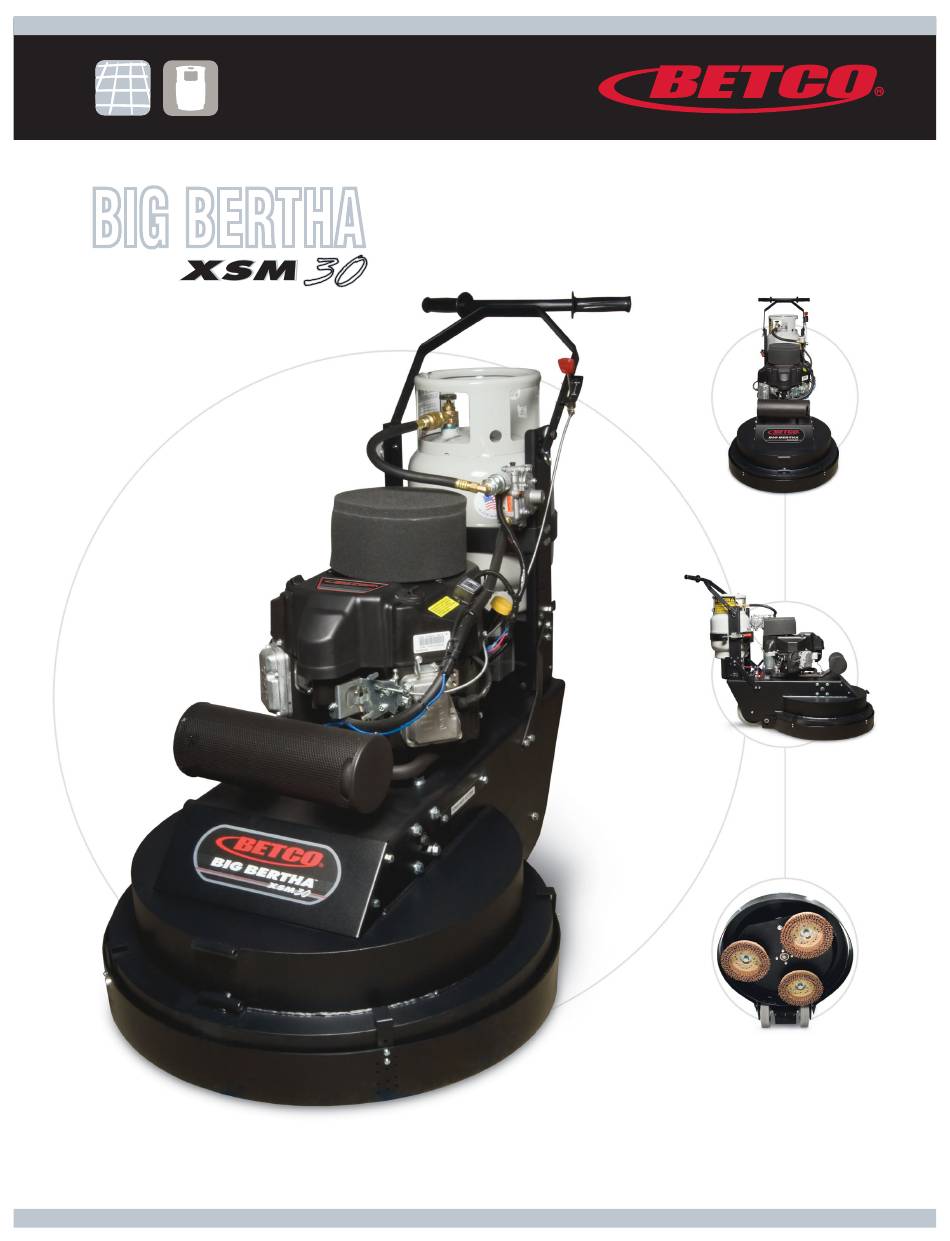

E12327-00
BIG BERTHA
30" Extreme Strip
™
and Scrub Machine
30
Operator and Parts
Manual
1001 Brown Avenue • Toledo, Ohio 43607-0127
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG BERTHA XSM 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BETCO BIG BERTHA XSM 30

Summary of Contents for BETCO BIG BERTHA XSM 30

  • Page 1 E12327-00 BIG BERTHA 30" Extreme Strip ™ and Scrub Machine Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Carbon Monoxide Warning ........3 Safety ................4 tank USe and Storage ..........5 Starting and Stopping the honda engine .... 5 operator preparation ..........6 Major aSSeMblieS ............7 handle bar ..............8 - 9 loWer handle SUpport ........10 - 13 regUlator aSSeMbly ........14 - 15 12V Starter SWitCh ...........14 - 15 kaWaSaki engine aSSeMbly ......16 - 17...

  • Page 3: Carbon Monoxide Warning

    WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confined Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms train your employees to know the warning signs of carbon monoxide poisoning.

  • Page 4: Safety

    SAFETY lmportant Safety Information all lpg (liquid propane gas) powered engines, including this engine, produce Carbon Monoxide (Co). it is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. you must read “danger: lethal exhaust gas” information below. keep hands, feet, and loose clothing away from all moving parts while the machine is in operation.

  • Page 5: Tank Use And Storage

    TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. the fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the opd (overflow protection device) vapor withdrawal type cylinder. these style tanks have a triangle shaped valve handle.

  • Page 6: Operator Preparation

    OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank filled, you must make sure the tank is never over-filled. •...

  • Page 7: Major Assemblies

    MAJOR ASSEMBLIES HANDLE BAR ASM OPD PROPANE TANK LOWER HANDLE SUPPORT REGULATOR ASM ENGINE ASM STRIP MACHINE DECK BRUSH DRIVE TRANSPORT WHEEL ASM PIVOT BRACKET BRUSH DECK ASM...

  • Page 8: Handle Bar

    HANDLE BAR E88808 E12696 E12476 E10120 E83145 E86228 E11420 E86125 E11146 E87986 E86114 (38")
  • Page 9 PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11420 Washer, #10 SAE, Zinc E12476 Screw, Shoulder 1/2" x 1/2" Socket Head E12696 Hand Grip E83145 Washer, Nylon 1/2" ID X 1.25" OD E86114 Kawasaki Throttle Cable 38"...

  • Page 10: Lower Handle Support

    LOWER HANDLE SUPPORT (For Serial Numbers Before 6999) E88806 E86120 E86125 E10457 (13") E11702 E10761 E81072 E81089 E81063 E86125 E86119 E10120 E88316 E10457 (4") E81072 E88319 E81089 E11353 E88807 E10734 E83629 E86125 E88805 E81062 E11146...
  • Page 11 PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E10457 Felt, 1.500 W x 0.125 Thick, Adhesive Back E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc E10761 Rubber Propane Tank Shelf Pad E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11353 Tube Clamp 3/4"...
  • Page 12 LOWER HANDLE SUPPORT (For Serial Numbers 7000 and Greater) E86120 E10457 (13") E89825 E86125 E11702 E89823 E81089 E10141 E89822 E86119 E10457 (4") E10120 E81072 E88807 E89826 E11353 E10734 E81062 E81062 E89824 E11146 E89827...
  • Page 13 Note: Not available for purchase assembled.

  • Page 14: Regulator Assembly

    REGULATOR ASSEMBLY E10751 E88804 E10746 E10084 E12359 E10734 E88509 E10243 (Emissions) E10246 E11321 E88803 (36") E11353 E88510 (24") 12V STARTER SWITCH E10550 E12290 E10449 E86125 E86121 E10204...
  • Page 15 PART Description QTY. NUMBER E10084 Fitting, 3/8 MJIC x 3/8 MNPT, 90 Elbow, Brass E10243 In Line Fuel Shut Off Valve Model 152 (With Emissions) E10246 In Line Fuel Shut Off Valve Model 151 E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc E10746 Fuel Regulator Model 60E E10751...

  • Page 16: Kawasaki Engine Assembly

    KAWASAKI ENGINE ASSEMBLY E10242 - Emission Kit (E10248 E12360 & E10249) E10245 - Bung Plug M18 x 1.5mm E10337 - Valve Oil Seal E10544 - Decal, Clutch E12426 - CO Detection Badge E88859 E12525 - Drive Shaft Oil Seal E85461 - Oil Drain Hose ASM E88326 - Spark Plug E88327 - Ignition Coil ASM E88480...
  • Page 17 PART Description QTY. NUMBER E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc E10135 Washer, 3/8" USS, Zinc E10137 Clamp, Tube 1/2" (COV-0909) E10242 Emissions Kit (E10248, E10249) E10245 Bung Plug M18 x 1.5mm E10248 O2 Sensor Electrical Control Box E10249 O2 Sensor E10337...

  • Page 18: Deck Assembly

    DECK ASSEMBLY E11772 E10734 E10120 E81089 E81063 E88315 E81089 E81089 E81063 E88320 E81067 E88314 E81089 E81067 E81089 E11164 E81067 E81067 E81089 E11335 E11163 E11170 E11501 E11420 E11340 E12476 E86125 E11416 E88323 E11420 E12693 E81066 E10120 E12483 E11339 E11351 E11135 E81066 E11165 E11420 E83629...
  • Page 19 DECK PARTS PART DESCRIPTION QTY. NUMBER E10120 NYLOC HEX NUT 10-32 E10734 HEX HEAD BOLT 1/4-20 x 5/8 LG E11135 WASHER, 3/4" SAE, ZINC E11163 DECAL TENSIONER ACCESS E11164 DECAL, BELT PATH E11165 SPLASH SKIRT, 30 INCH E11170 TENSIONER ACCESS COVER E11335 WHEEL 10 INCH DIA x 2.50 WIDE E11339...

  • Page 20: Main Drive System

    MAIN DRIVE SYSTEM E86232 E12434 E81064 E11289 E81078 E11501 E12400 E12447 E12459 E10117 E10598 E12406 E11350 E12409 E11501 E11417 E11345...
  • Page 21 PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E10598 Screw 7/16"-20 x 1.750 Hex Head, Grade 5, Zinc E11289 Key 1/4" x 1/4" x 1.500" E11345 Belt, B44 V-Belt, 44" E11350 Pulley, BK90H - 8.75 OD E11417 Tensioner Large For Engine E11501 Washer, 7/16"...

  • Page 22: Pivot Bracket Assembly

    PIVOT BRACKET ASSEMBLY (For Serial Numbers Before 6999) E11418 E12447 E11347 E11418 E87987 E12447 E11501 E11347 E10117 E12447 E86234 E86224 E88321 E11347 E12447 E11430...
  • Page 23 PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E11347 Flange Bearing AMI UCF 205 Set Screws 2.75 Bolt Spacing E11418 Nut, 7/16"-14, Nylon Lock, Grade 5, Zinc E11430 Screw, 7/16"-14 x 2.250 Hex Head, Grade 5, Zinc E11501 Washer, 7/16"...
  • Page 24 PIVOT BRACKET ASSEMBLY (For Serial Numbers 7000 and Greater) E11418 E11347 E12447 E11418 E89818 E10117 E89816 E86234 E12447 E89817 E11418 E89782 E12447 E10117 E12447 E12447 E86234 E89828 E11347 E12447 E89819...
  • Page 25 PART DESCRIPTION QTY. NUMBER E10117 SPLIT LOCK WASHER 7/16 E11347 FLANGE BEARING AMI UCF 205 SET SCREWS 2.75 BOLT SPACING E11418 NYLOC NUT 7/16-14 E12447 FLAT WASHER, 7/16, SAE E86234 HEX HEAD SCREW 7/16-14 x 1-1/2 E89782 PIVOT BASE ASM E89816 FLANGE-MOUNTED STEEL BALL BEARING, 1"...

  • Page 26: Brush Plate Assembly

    BRUSH PLATE ASSEMBLY E81072 E12444 E81067 E11501 E12400 E12400 E12459 E12459 E11350 E11348 E12400 E12459 E12427 E11346 E11344 E12427 E11343 E10458 E11349 E10117 E11336 E10116 E11501 E83641 E12409 E11342 E12406 E11414 E12444 E81063...
  • Page 27 PART DESCRIPTION QTY. NUMBER E10116 HEX HEAD SCREW 7/16-14 x 1-1/4 LG E10117 SPLIT LOCK WASHER 7/16 E10458 TENSIONER LARGE FOR BRUSHES E11336 BRUSH MOUNTING PLATE E11342 BRUSH MOUNTING PLATE LH E11343 STRIPPER CENTER DRIVE HUB ASSEMBLY E11344 STRIPPER BRUSH DRIVE HUB ASSEMBLY E11346 PULLEY, BK47H - 4.45 OD E11348...

  • Page 28: Engine Maintenance

    ENGINE MAINTENANCE KAWASAKI FS481V PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake foam and intake paper filter Check and clean engine cooling air intake filter General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc.

  • Page 29: Electrical Schematic

    ELECTRICAL SCHEMATIC EP50034 LP Ready 17HP Kawasaki Engine Assembly With Emission Kit (E10242) Black Wire E10248 O2 Sensor Electrical Control Box E10249 O2 Sensor Blue Wire E12405 Oil Pressure Switch Green Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch E86119 Hour Meter, SenDEC 5-80V Yellow...

  • Page 30: Main Drive Belt

    MAIN DRIVE BELT Removal Remove main drive belt tensioner access plate. Remove front access panel bolts and panel. Loosen main drive belt tensioner bolt using a 3/4" wrench. Through the front access slip the belt up over the main drive pulley of the brush drive plate. You can finish removing the main drive belt through the rear opening of the machine under the handle.

  • Page 31: Brush Drive Plate And Belt

    BRUSH PLATE & BELT Brush Drive Plate Removal Remove front access panel bolts and panel. Loosen main drive belt tensioner bolt using a 3/4" wrench. Through the front access slip the main drive belt up over the main drive pulley of the brush drive plate. Remove pivot bracket axle bolts.

  • Page 32: Brush Change

    BRUSH CHANGE Remove propane tank. Remove front access panel to gain access to the brush drive shaft tops. Lay the machine on its side with the brush drive plate installed. The brush drive shaft and brush mount plate are LEFT HAND THREADS. Using a 3/4"...

  • Page 33: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections Engine will not turn over Bad electrical component Replace bad component Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in off...

  • Page 34: Emissions Warranty

    Corporation cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. as the Sore owner you should however be aware that betco Corporation may deny your warranty if your Sore or its part has failed due to abuse, neglect, improper maintenance or unapproved modification.
  • Page 35 Corporation according to subsection (4) below. any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

  • Page 36: Warranty

    Service distributor. if the original part is returned within the warranty policy period from date of delivery for inspection by betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
