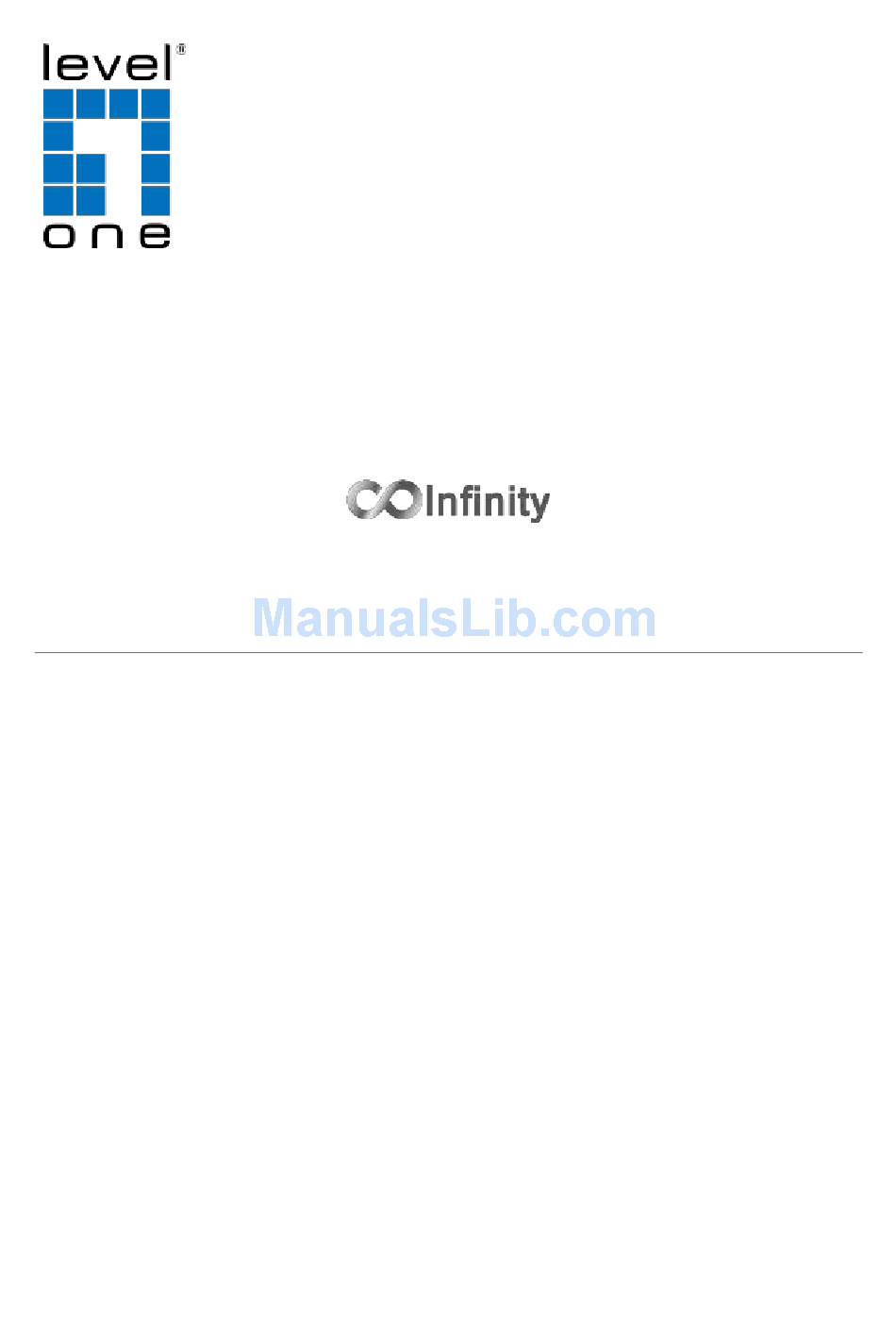

IES-1085
4 x 802.3af + 4 x 802.3at + 2 GE SFP Managed Switch -40 to 75C, DIN-rail

User Manual

v1.00 - 1206

Advertisement

Table of Contents
loading

Related Manuals for LevelOne Infinity IES-1085

Summary of Contents for LevelOne Infinity IES-1085

  • Page 1: User Manual

    IES-1085 4 x 802.3af + 4 x 802.3at + 2 GE SFP Managed Switch -40 to 75C, DIN-rail User Manual v1.00 - 1206...

  • Page 2: Preface

    Preface This manual describes how to install and use the Industrial Managed PoE (Power over Ethernet) Ethernet Switch. This switch introduced here is designed to deliver full scalability with SNMP/RMON web-based management functions by providing: To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

  • Page 3: Table Of Contents

    Table of Contents PREFACE ..............................2 TABLE OF CONTENTS ............................ 3 QUICK START GUIDE ..........................5 ............................5 HYSICAL ESCRIPTION ............................7 UNCTIONAL ESCRIPTION ............................8 ONSOLE ONFIGURATION ............................. 9 ONFIGURATION PRODUCT OVERVIEW ........................... 10 ........................ 10 NDUSTRIAL ANAGED THERNET WITCH ..............................
  • Page 4 ............................ 73 DMINISTRATION ONSOLE ................................82 YSTEM .................................. 92 ................................99 WITCHING ................................. 108 RUNKING STP ................................. 109 VLAN ................................122 S ................................. 128 SNMP ................................131 802.1 ................................138 ............................. 143 THER ROTOCOLS SPECIFICATIONS ..........................154 APPENDIX A ............................155 APPENDIX B ............................

  • Page 5: Quick Start Guide

    Quick Start Guide This quick start guide describes how to install and use the Industrial Managed PoE (Power over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Port Status LEDs and Power Inputs User Manual Page 5...

  • Page 6: Power Input

    Power Input 47 57VDC Power Ground 47 57VDC Power Ground Earth Ground Relay Output 1A @ 250VAC Relay Alarm warning signal disable for following: 1. The relay contact closes if Power1 and Power2 are both failed but Power3 on 2. The relay contact closes if Power3 is failed but Power1 and Power2 are both on ...

  • Page 7: Functional Description

    Functional Description  Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment.  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP management.

  • Page 8: Console Configuration

    Console Configuration  Connect to the switch console: Connect the DB9 straight cable to the RS-232 serial port of the device and the RS-232 serial port of the terminal or computer running the terminal emulation application. Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

  • Page 9: Web Configuration

    Web Configuration  Login the switch: Specify the default IP address (192.168.1.10) of the switch in the web browser. A login window will be shown as below:  Enter the factory default login ID: root. Enter the factory default password (no password). Then click on the Login button to log on to the switch.

  • Page 10: Product Overview

    Product Overview Industrial Managed Ethernet Switch Front View Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. ...

  • Page 11: Product Highlights

    Product Highlights Basic Features  Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment.  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP management.
  • Page 12 TRUNKING Port Trunking  PORT-SECURITY Per-port programmable MAC address locking  Up to 24 Static Secure MAC addresses per port  PORT-MIRRORING Port-mirroring  QOS (IEEE802.1p Quality of Service) 4 priority queues  INTERNETWORKING PROTOCOLS Bridging:  IEEE802.1s Multiple Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1D Spanning Tree compatible IEEE802.1Q GVRP...

  • Page 13: Front Panel Display

    Front Panel Display POWER  This LED comes on when the switch is properly connected to power and turned on.  Port Status LEDs The LEDs are located on the front panel, displaying status for each respective port. Please refer to the following table for more details. Status Description Steady...

  • Page 14: Physical Ports

    Physical Ports The Industrial Managed Ethernet Switch provides: Number of ports 10/100Base-TX (802.3at) 10/100Base-TX (802.3af ) 100Base SFP: 10/100Base-TX 100Base-FX/BX 1000Base SFP: 10/100/1000Base-TX 1000Base-SX/LX/BX CONNECTIVITY  RJ-45 connectors on TX ports  Single or Duplex LC connectors on SFP 100Base-FX/BX fiber transceiver ...

  • Page 15: Switch Management

    Switch Management Web-based browser interface The switch also boasts a point-and-click browser-based interface that lets user access full switch configuration and functionality from a Netscape or Internet Explorer browser. Administration console via RS-232 serial port (CLI) The switch provides an onboard serial port, which allows the switch to be configured via a directly connected terminal.

  • Page 16: Installation

    Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: -The ambient temperature should be between -40℃...

  • Page 17: Din Rail Mounting

    DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the Media Converter. Installation: Place the Media Converter on the DIN rail from above using the slot. Push the front of the Media Converter toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the Media Converter from the DIN rail.

  • Page 18: Alarms For Power Failure

    Step 2: Disconnect the power cord if you want to shut down the switch. Back View Alarms for Power Failure Step 1: There are two pins on the terminal block used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.

  • Page 19: Connecting To Your Network

    Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed Connector Port Speed Cable Max.

  • Page 20: Switch Management

    Switch Management This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.

  • Page 21: Administration Console (Cli)

    Administration Console (CLI) The administration console is an internal, character-oriented, Command Line Interface (CLI) for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal, personal computer, Apple Macintosh, or workstation co port.

  • Page 22: Web Management

    Web Management The switch provides a browser interface that lets you configure and manage the switch remotely. applications directly in your web browser by entering the IP address of the switch. You can then use your web browser to list and manage switch configuration parameters from one SNMP-Based Network Management You can use an external SNMP-based application to configure and manage the switch.

  • Page 23: Management Architecture

    Management Architecture All of the management application modules use the same Messaging Application Programming Interface (MAPI). By unifying management methods with a single MAPI, configuration parameters set using one method (e.g. console port) are immediately displayed the other management methods (e.g. SNMP agent of web browser). The management architecture of the switch adheres to the IEEE open standard.

  • Page 24: Snmp & Rmon Management

    SNMP & RMON Management Remote Monitoring (RMON) capabilities. Overview RMON is an abbreviation for the Remote Monitoring MIB (Management Information Base). RMON is a system defined by the Internet Engineering Task Force (IETF) document RFC 2819, which defines how networks can be monitored remotely. RMONs typically consist of two components: an RMON probe and a management workstation: - The RMON probe is an intelligent device or software agent that continually...

  • Page 25: Rmon Mib (Rfc 2819) And Bridge Mib (Rfc 1493)

    WARM START COLD START LINK UP LINK DOWN AUTHENTICATION FAILURE RISING ALARM FALLING ALARM TOPOLOGY ALARM MIB-II defines a set of manageable objects in various layers of the TCP/IP protocol suites. MIB-II covers all manageable objects from layer 1 to layer 4, and, as a result, is the major SNMP MIB supported by all vendors in the networking industry.

  • Page 26: Bridge Groups Supported

    Bridge Groups Supported The switch supports the following four groups of Bridge MIB (RFC 1493): - The dot1dBase Group a mandatory group that contains the objects applicable to all types of bridges. - The dot1dStp Group respect to the Spanning Tree Protocol. If a node does not implement the Spanning Tree Protocol, this group will not be implemented.

  • Page 27: Web-Based Browser Management

    Web-Based Browser Management The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser. This chapter describes how to configure the switch using its web-based browser interface. Logging on to the switch SWITCH IP ADDRESS In your web browser, specify the IP address of the switch.

  • Page 28: Understanding The Browser Interface

    Understanding the Browser Interface The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch. SYSTEM System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout PORT Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities...

  • Page 29: Other Protocols

    Global Configuration, 802.1p Priority, DSCP SNMP SNMP General Setting, SNMP v1/v2c, SNMP v3 802.1X Radius Configuration, Port Authentication OTHER PROTOCOLS GVRP, IGMP Snooping, NTP User Manual Page 29...

  • Page 30: System

    System System Information The System name, Firmware version, System time, MAC address, Default gateway, DNS Server, VLAN ID, IP Address, and IP Subnet Mask of Switch. User Manual Page 30...
  • Page 31 System Name/Password 1. System Name: System Name . Type a system name if it is blank, or replace the current system name with a new one. 2. Updating setting: Updating setting button to update your settings. 3. Password: Password . Type a password. 4.
  • Page 32 IP Address 1. IP Address: C IP Address text box and type a new address to change the IP Address. 2. IP Subnet Mask: C IP Subnet Mask text box and type a new address to change the IP Subnet Mask. 3.
  • Page 33 ARP Table Click ARP Table to view ARP Table. Route Table Click Route Table to view Route Table. User Manual Page 33...

  • Page 34: Save Configuration

    Save Configuration 1. Load config from TFTP server: TFTP Server text box and type the TFTP server IP address from where the file will be obtained. FILE text box and type the name of the file that will be obtained. Load button to load the file from the TFTP server.

  • Page 35: Firmware Upgrade

    Firmware Upgrade 1. Filename: C Filename text box and type the name of the file that you intend to upgrade it to the switch. 2. TFTP server IP: C TFTP server IP text box and type the TFTP server IP address from where the file will be obtained.
  • Page 36 Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time. User Manual Page 36...
  • Page 37 Firmware has been upgraded successfully to the switch. Reboot the switch after completing the upgrade process. User Manual Page 37...
  • Page 38 Alarm Setting 1. Name: C Name drop-down menu to choose fe1~fe10 , ge1~ge2 , or Power1~Power3 Name drop-down list. 2. Trigger Enabled: C Trigger Enabled drop-down menu to choose YES or NO Trigger Enabled drop-down list to enable or disable Trigger. 3.
  • Page 39 Reboot Reboot: Reboot button to restart the switch. Logout Logout: Logout button to logout of the switch. User Manual Page 39...

  • Page 40: Port

    Port Configuration 1. Admin Setting: C Admin Setting drop-down menu to choose Link down or Link Admin Setting drop-down list to disable or enable Admin Setting for the port. 2. Speed: C Speed drop-down menu to change the line speed and duplex settings Speed drop-down list for the port.

  • Page 41: Port Status

    Port Status View the Link Status, Speed, Duplex, and Flow control status for all ports. SFP Port: View the Detected, Connector, Transceiver, Mode, Wave Length (nm), Link Length (m), Temperature (C), Vcc (V), Tx_bias (mA), Tx_pow (dbm), and Rx_pow (dbm) information for SFP ports.

  • Page 42: Rate Control

    Rate Control 1. Ingress: C Ingress text box and type a new Rate to change the Ingress Rate Control for the port. Rate Values: 64kbps, 128kbps, 192kbps, , 1792kbps. 2Mbps, 3Mbps, 4Mbps, , 100Mbps. 104Mbps, 112Mbps, 120Mbps, , 1000Mbps. <Note>: M = 1024k. 2.

  • Page 43: Rmon Statistics

    RMON Statistics Click Port 1 ~ Port 12 to view corresponding RMON Statistics. Per Port Vlan Activities Click Port 1 ~ Port 12 to view corresponding vlan activities. User Manual Page 43...

  • Page 44: Switching

    Switching Bridging 1. Aging Time (seconds): Click the text box and type a decimal number as Bridging Aging Time in seconds. 2. Update setting: C update setting button when you finished Aging Time settings. 3. Threshold level (0.1-100): Level for the port.
  • Page 45 Static MAC Entry Static-MAC-Entry Forward: 1. Add MAC address: Add MAC address locked forwarding MAC address for the port. 2. VLAN ID: C VLAN ID drop-down menu and choose a VLAN ID VLAN ID drop-down list. 3. Delete MAC address: C Delete MAC address drop-down menu and choose a locked forwarding MAC address Delete MAC address drop-down list to be...

  • Page 46: Port Mirroring

    Port Mirroring 1. Mirror From: Choose Mirror From port from Port 1 ~ Port 12. 2. Mirror To: C Mirror To drop-down menu to Choose Mirror To port (Port 1 ~ Port 12) from Mirror To drop-down list. 3. Mirror Mode: C Mirror Mode drop-down menu to Choose Tx/Rx , Tx , or Rx from Mirror Mode drop-down list.

  • Page 47: Poe Scheduling

    1. System Power Budget: System Power Budget new system power budget for Switch. 2. Submit: C Submit button when you finished PoE System Setting. PoE Port Setting: 1. Enable Mode: C Enable Mode drop-down menu to choose Disable or Enable from Enable Mode drop-down list to disable or enable this port to discover Powered Device (PD) connected to this port.

  • Page 48: Trunking

    Trunking Port Trunking Static Channel Group: 1. Trunk 1: Click Port 1 ~ Port 10 to assign ports to Trunk 1. (Maximum 4 ports per Trunk.) GE Trunking: 1. Trunk 3: Check Static or Disable to enable or disable Trunk 3 for Gigabit Ethernet ports.

  • Page 49: Stp / Ring

    STP / Ring Global Configuration 1. Spanning Tree Protocol: C Spanning Tree Protocol drop-down menu to Choose Enable or Disable from Spanning Tree Protocol drop-down list to enable or disable Spanning Tree Protocol. 2. Bridge Priority (0..61440): C Bridge Priority between 0 and 61440.
  • Page 50 RSTP Port Setting 1. STP Version: C STP Version drop-down menu to choose RSTP from STP Version drop-down list. 2. Port: C Port drop-down menu to Choose Port 1 ~ Port 12 from Port drop-down list. 3. Priority(Granularity 16): C Priority enter a value between 0 and 240 to set the priority for the port.

  • Page 51: Mstp Properties

    MSTP Properties 1. STP Version: C STP Version drop-down menu to choose MSTP from STP Version drop-down list. 2. Region Name: C Region Name to create an MST region and specify a name to it. MST bridges of a region form different spanning trees for different VLANs. By default, each MST bridge starts with the region name as its bridge address.
  • Page 52 max hops for a BPDU prevents the messages from looping indefinitely in the network. When a bridge receives a MST BPDU that has exceeded the allowed max-hops, it discards the BPDU. 5. Update setting: C Update setting button when you finished MSTP Properties setting.
  • Page 53 Configuration. Included VLANs 1. Instance ID: C Instance ID drop-down menu to choose instance ID from Instance ID drop-down list. 2. Included VLAN: C Included VLAN drop-down menu to choose VLAN from Included VLAN drop-down list. Instance Setting 1. Bridge Priority (0..61440): C Bridge Priority to set the bridge priority for an MST instance to the value specified.
  • Page 54 MSTP Port Setting Port Instance Configuration 1. Instance ID: C Instance ID drop-down menu to choose instance ID from Instance ID drop-down list. 2. Click Port 1 ~ Port 12 to assign ports to the corresponding instance ID. 3. Update setting: C Update setting button when you finished Port Instance Configuration.
  • Page 55 Ring Setting Ring state 1. C Ring state drop-down menu from Ring state drop-down list to choose Enable or Disable to enable or disable Ring state. 2. Update setting: C Update setting button when you finished Ring state setting. Set ring port 1.

  • Page 56: Vlan

    VLAN VLAN Mode Setting 1. VLAN Mode Setting: C VLAN Mode Setting drop-down menu to Choose Tag-based VLAN or Port-based VLAN from VLAN Mode Setting drop-down list. 2. Update Setting: C Update Setting button when you finished VLAN Mode Setting. User Manual Page 56...
  • Page 57 802.1Q VLAN Setting Add VLAN: 1. VLAN setting: Click VLAN setting . The VLAN Setting window appears. 2. Add VLAN: C Add VLAN button to create a new VLAN from VLAN Setting window. 3. VLAN ID(2-4094): VLAN ID textbox and specify a new VLAN ID number from 2 ~ 4094.
  • Page 58 Delete VLAN: 1. VLAN setting: Click VLAN setting . The VLAN Setting window appears. 2. Delete VLAN: C Delete VLAN button. 3. Select a VLAN ID: C Select a VLAN ID drop-down menu from Select a VLAN ID drop-down list to choose the VLAN to be deleted. 4.
  • Page 59 Mode drop-down list for the port. The port will be Tag port if you choose Trunk Mode for the port. And the port will be Tag or Untag port if you choose Hybrid Mode for the port. 3. PVID: PVID textbox and specify a new PVID number for the port. 4.

  • Page 60: Qos

    Global Configuration 1. QoS: C QoS drop-down menu from QoS drop-down list to choose Enable or Disable to enable or disable QoS. 2. Trust: Enable or disable the switch port to trust the CoS (Class of Service) labels of all traffic received on that port.
  • Page 61 802.1p Priority 1. Priority: C Priority drop-down menu from Priority drop-down list to choose 0 ~ 3 for VLAN Priority 0 ~ 7. 2. Submit: C Submit button when you finished 802.1p priority. DSCP 1. Priority: C Priority drop-down menu from Priority drop-down list to choose 0 ~ 3 for DSCP Priority 0 ~ 63.

  • Page 62: Snmp

    SNMP SNMP General Setting 1. SNMP Status: C SNMP Status drop-down menu from SNMP Status drop-down list to choose Enable or Disable to enable or disable SNMP. 2. Description: Description textbox and specify a new description for SNMP. 3. Location: Location textbox and specify a new location for SNMP.
  • Page 63 SNMP v1/v2c 1. Get Community Name: Get Community Name textbox and specify a get community name. 2. Set Community Name: Set Community Name textbox and specify a set community name. 3. Update Setting: C Update Setting button when you finished SNMP V1/V2c Setting. User Manual Page 63...
  • Page 64 SNMP v3 Add User: 1. Add User: C Add User button. The SNMP V3 Setting window appears. 2. SNMP Version: C SNMP Version drop-down menu from SNMP Version drop-down list to choose SNMPv3 No-Auth , SNMPv3 Auth-MD5 , SNMPv3 Auth-SHA , SNMPv3 Priv Auth-MD5 , or SNMPv3 Priv Auth-SHA .
  • Page 65 Delete User: 1. Delete User: C Delete User button. The Select User Name window appears. 2. Select User Name: C Select User Name drop-down menu from Select User Name drop-down list to choose the user to be deleted from using SNMP v3. 3.

  • Page 66: Radius Configuration

    802.1x Radius Configuration 1. Radius Status: C Radius Status drop-down menu from Radius Status drop-down list to choose Enable or Disable to globally enable or disable authentication. 2. Update Setting: C Update Setting button when you finished Radius Status Setting. Add Radius: 1.
  • Page 67 This key must match the encryption used on the radius daemon. All leading spaces are ignored, but spaces within and at the end of the key are used. If spaces are used in the key, do not enclose the key in quotation marks unless the quotation marks themselves are part of the key.
  • Page 68 Port Authentication 1. Interface: C Interface drop-down menu from Interface drop-down list to choose the port to be set port-based authentication. 2. Authentication State: Authentication State drop-down menu from Authentication State drop-down list to choose Enable or Disable to enable or disable authentication state.

  • Page 69: Other Protocols

    Other Protocols GVRP GVRP Global Setting: 1. GVRP: C GVRP drop-down menu from GVRP drop-down list to choose Enable or Disable to enable or disable GVRP (GARP VLAN Registration Protocol). 2. Dynamic VLAN creation: C Dynamic VLAN creation drop-down menu from Dynamic VLAN creation drop-down list to choose Enable or Disable to enable or disable Dynamic VLAN creation.
  • Page 70 3. GVRP registration: C GVRP registration drop-down menu from GVRP registration drop-down list to choose Enable or Disable to enable or disable GVRP registration to the port. Configuring an IEEE802.1Q trunk port in registration mode allows dynamic creation (if dynamic VLAN creation is enabled), registration, and deregistration of VLANs on the trunk port.
  • Page 71 an entry between 1 and 124 (seconds). Default = 10. IGMP passive snooping: 1. Report suppression: report suppression report suppression Enable Disable for the switch. Use this command to enable report suppression for IGMP version 1 and version 2. Report suppression does not apply to IGMP version 3, and is turned off by default for IGMP version 1 and IGMP version 2 reports.
  • Page 72 Enable Disable to enable or disable NTP for the Switch. 2. NTP Server (IP Address or Domain name): NTP Server textbox and specify the IP address or Domain name of NTP server. 3. Sync Time: C Sync Time button to synchronize time with NTP server. 4.

  • Page 73: Command Line Console Management

    Command Line Console Management The switch provides a command line console interface for configuration purposes. The switch can be configured either locally through its RS-232 port or remotely via a Telnet session. For the later, you must specify an IP address for the switch first. This chapter describes how to configure the switch using its console by Commend Line.
  • Page 74 At the switch_a login: (or View Mode). switch_a login: root Basic commands Exec Mode (or View Mode) is the base mode from where users can perform basic commands like: clear, debug, disable, enable, exit, help, logout, no, quit, show, terminal The CLI contains a text-based help facility.
  • Page 75 Login timed out The login session to Exec Mode (or View Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen. Logon back to Exec Mode (View Mode) At the switch_a login: to logon back to Exec...
  • Page 76 Exit from Exec Mode (View Mode) At the switch_a> View Mode). switch_a>exit Privileged Exec Mode (Enable Mode) Logon to Privileged Exec Mode (Enable Mode) At the switch_a> Exec Mode (or Enable Mode). And the switch_a# prompt will show on the screen. switch_a>enable User Manual Page 76...
  • Page 77 Commands Privileged Exec Mode (or Enable Mode) allows users to run commands as following. At the switch_a# prompt just press <?> to list the commands. switch_a#? At the switch_a# prompt just type in the full or partial command string then typing a User Manual Page 77...
  • Page 78 question to display the command keywords or parameters along with a short description. switch_a#show ? Login timed out The login session to Privileged Exec Mode (or Enable Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen.
  • Page 79 Exit from Privileged Exec Mode (or Enable Mode) At the switch_a# Mode (or Enable Mode). switch_a#exit Configure Mode (Configure Terminal Mode) Logon to Configure Mode (Configure Terminal Mode) At the switch_a# Configure Mode (or Configure Terminal Mode). And the switch_a(config)# prompt will show on the screen.
  • Page 80 Commands Configure Mode (or Configure Terminal Mode) serves as a gateway into the modes as following. At the switch_a(config)# prompt just press <?> to list the commands. switch_a(config)#? User Manual Page 80...
  • Page 81 At the switch_a(config)# prompt just type in the full or partial command string then to display the command keywords or parameters along with a short description. switch_a(config)#show ? Login timed out The login session to Configure Mode (or Configure Terminal Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out.

  • Page 82: System

    System System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout System Name/Password System Name: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.

  • Page 83: Route Table

    switch_a(config)# 2. Usage: Use enable password command to modify or create a password to be used when entering the Enable mode. 3. Command Syntax: enable password PASSWORD PASSWORD specifies the new password of the system. 4. Example: The following example sets the new password mypasswd to switch: switch_a(config)#enable password mypasswd switch_a(config)# ARP Table...
  • Page 84 4. Example: The following example shows the Route Table of switch: switch_a#show route-table IP Address IP Address/IP Subnet Mask: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen.
  • Page 85 3. Command Syntax: ip default-gateway IP-ADDRESS no ip default-gateway IP-ADDRESS A.B.C.D specifies the IP address of the default gateway. 4. Example: The following example sets the default gateway 192.168.1.254 to switch: switch_a(config)#ip default-gateway 192.168.1.254 switch_a(config)# DNS Server: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode).
  • Page 86 WORD specifies the file name to be loaded to switch. 4. Example: The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to switch: switch_a#install image 192.168.1.100 flash.tgz switch_a# Load config to TFTP server: 1. Command Mode: Privileged Exec mode Logon to Privileged Exec Mode (Enable Mode).
  • Page 87 switch_a# Restore Default: 1. Command Mode: Privileged Exec mode Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen. switch_a# 2. Usage: Use restore default command to restore default setting of the switch. 3. Command Syntax: restore default 4.
  • Page 88 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to set the interval when the configuration would be automatically saved. The range of interval value is from 5 to 65535. And the default value is 30 seconds. 3.

  • Page 89: Alarm Setting

    eload reboot the switch after completing the upgrade process. Alarm Setting Alarm-trigger if: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to enable or disable alarm trigger on interface. 3.
  • Page 90 4. Example: The following example enables alarm trigger on interface fe1 to switch: switch_a(config)#alarm-trigger if fe1 switch_a(config)# Alarm-trigger power: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.
  • Page 91 Logout 1. Command Mode: Exec mode or Privileged Exec mode Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen. switch_a> switch_a# 2. Usage: Use logout command to exit from the Exec mode or Privileged Exec mode. 3.

  • Page 92: Port

    Port Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities Configuration Admin Setting: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2.
  • Page 93 MODE specifies the duplex mode: auto, full, half. 4. Example: The following example shows the use of duplex MODE (full) to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#duplex full switch_a(config-if )# Flow control: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode).
  • Page 94 3. Command Syntax: show interface IFNAME IFNAME specifies the name of the interface for which status and configuration information is desired. 4. Example: The following example shows the use of show interface to display interface configuration and status of the interface fe1 (port 1): switch_a>show interface fe1 Alarm Situation: 1.
  • Page 95 LEVEL Threshold value -128 ~ 128℃. 4. Example: The following example sets high temperature alarm threshold 100℃ for SFP transceiver of interface ge1 (port G1): switch_a(config)#sfp set-temp ge1 high-alarm 100 switch_a(config)# Voltage Alarm (Warning) Threshold: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode).
  • Page 96 LEVEL Threshold value 0 ~ 131 mA. 4. Example: The following example sets high transmitter laser bias alarm threshold 131 mA for SFP transceiver of interface ge1 (port G1): switch_a(config)#sfp set-tx-bias ge1 high-alarm 131 switch_a(config)# Tx-pow Alarm (Warning) Threshold: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode).
  • Page 97 information is desired. LEVEL Threshold value -30 ~ 8.16 dbm. 4. Example: The following example sets high received optical power alarm threshold 8.16 dbm for SFP transceiver of interface ge1 (port G1): switch_a(config)#sfp set-rx-pow ge1 high-alarm 8.16 switch_a(config)# Rate Control 1.
  • Page 98 switch_a# 2. Usage: Use the show interface statistics command to display RMON statistics of interface. 3. Command Syntax: show interface statistics IFNAME IFNAME specifies the name of the interface for which RMON statistics is desired. 4. Example: The following example shows the use of show interface statistics to display RMON statistics of the interface fe1 (port 1): switch_a>show interface statistics fe1 Per Port Vlan Activities...

  • Page 99: Switching

    Switching Bridging, Static MAC Entry, Port Mirroring, PoE, PoE Scheduling Bridging Aging Time (seconds): 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to specify an ageing-out time for a learned MAC address. The learned MAC address will persist till this specified time.
  • Page 100 4. Example: The following example shows setting storm-control level LEVEL (30) to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#storm-control level 30 switch_a(config-if )# Broadcast: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1.
  • Page 101 Use no storm-control multicast command to disable multicast traffic. 3. Command Syntax: storm-control multicast enable no storm-control multicast 4. Example: The following example shows setting storm-control multicast enable to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#storm-control multicast enable switch_a(config-if )# DLF: 1.
  • Page 102 switch_a(config)# 2. Usage: Use this command to statically configure a bridge entry to forward matching frames. 3. Command Syntax: bridge GROUP address MAC forward IFNAME VLANID no bridge GROUP address MAC forward IFNAME VLANID GROUP <1-1> Bridge-group ID used for bridging. MAC the Media Access Control (MAC) address in the HHHH.HHHH.HHHH format.
  • Page 103 Port Mirroring 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use this command to define a mirror source port and its direction. Use the no parameter with this command to disable port mirroring by the destination port on the specified source port.
  • Page 104 4. Example: The following example sets new power budget 246 Watts to Switch: switch_a(config)#poe system-power-budget 246 switch_a(config)# Enable Mode: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.
  • Page 105 4. Example: The following example sets new fixed power limit 15 Watts to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#poe fixed-power-limit 15 switch_a(config-if )# Power Priority: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 106 (no) poe power-down-alarm enable 4. Example: The following example shows the use of poe power-down-alarm enable to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#poe power-down-alarm enable switch_a(config-if )# PoE Scheduling PoE Schedule: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 107 3. Command Syntax: poe schedule-time DAY HOUR DAY <0-6> specifies Sunday ~ Saturday to Switch. HOUR <0-23> specifies hours to Switch. no poe schedule-time DAY 4. Example: The following example sets PoE scheduling to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if )#poe schedule-time 3 0-10,12,14-20, 22-23 switch_a(config-if )# User Manual...

  • Page 108: Trunking

    Trunking Port Trunking Port Trunking 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use static-channel-group command to create a static aggregator, or add a member port to an already-existing static aggregator.

  • Page 109: Stp

    Global Configuration, RSTP Port Setting, MSTP Properties, MSTP Instance Setting, MSTP Port Setting, Ring Setting Global Configuration STP Version: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.
  • Page 110 BRIDGE-FORWARD Puts all ports of the specified bridge into the forwarding state. 4. Example: The following example enables or disables the multiple-spanning-tree on bridge GROUP (1): switch_a(config)#bridge 1 multiple-spanning-tree enable switch_a(config)#no bridge 1 multiple-spanning-tree enable bridge-forward switch_a(config)# Rapid Spanning Tree Protocol: 1.
  • Page 111 BRIDGE-FORWARD Puts all ports of the specified bridge into the forwarding state. 4. Example: The following example enables or disables the spanning-tree on bridge GROUP (1): switch_a(config)#bridge 1 spanning-tree enable switch_a(config)#no bridge 1 spanning-tree enable bridge-forward switch_a(config)# Bridge Priority (0..61440): 1.
  • Page 112 GROUP <1-1> The ID of the bridge group to which this hello time is assigned. HELLOTIME <1-9> The hello BPDU interval in seconds. 4. Example: The following example sets the hello-time HELLOTIME (9) of bridge GROUP (1): switch_a(config)#bridge 1 hello-time 9 switch_a(config)# Max Age (sec) (6..28): 1.
  • Page 113 GROUP <1-1> The ID of the bridge group to which this delay time is assigned. FORWARD_DELAY <4-30> the forwarding time delay in seconds. 4. Example: The following example sets the forward-time FORWARD_DELAY (30) of bridge GROUP (1): switch_a(config)#bridge 1 forward-time 30 switch_a(config)# RSTP Port Setting Priority(Granularity 16):...
  • Page 114 2. Usage: Use this command to set the cost of a path associated with a bridge-group. Use the no parameter with this command to restore the default cost of a path associated with a bridge-group. 3. Command Syntax: bridge GROUP path-cost PATHCOST no bridge GROUP path-cost GROUP <1-1>...
  • Page 115 Autoedge: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use spanning-tree autoedge command to assist in automatic identification of the edge port.
  • Page 116 switch_a(config)#interface fe1 switch_a(config-if )#spanning-tree edgeport switch_a(config-if )# MSTP Properties Region Name: 1. Command Mode: MST Configuration mode Logon to Configure Mode (Configure Terminal Mode). Then logon to MST Configuration mode. The switch_a(config-mst)# prompt will show on the screen. switch_a(config)#spanning-tree mst configuration switch_a(config-mst)# 2.
  • Page 117 3. Command Syntax: bridge GROUP revision REVISION_NUM GROUP <1-1> Specify the bridge-group ID. REVISION_NUM <0-255> Revision number. 4. Example: The following example specifies a revision number (25) of MST configuration in bridge GROUP (1): switch_a(config)#spanning-tree mst configuration switch_a(config-mst)#bridge 1 revision 25 switch_a(config-mst)# Max Hops: 1.
  • Page 118 switch_a(config)#spanning-tree mst configuration switch_a(config-mst)# 2. Usage: Use this command to simultaneously add multiple VLANs for the corresponding instance of a bridge. This command can be used only after the VLANs are defined. Use the no parameter with this command to simultaneously remove multiple VLANs for the corresponding instance of a bridge.
  • Page 119 (1): switch_a(config)#bridge 1 instance 3 priority 0 switch_a(config)# MSTP Port Setting Bridge-Group Instance: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2.
  • Page 120 for a particular instance on a LAN, or which port should be the root port for an instance. A lower value implies a better priority. In the case of the same priority, the interface index will serve as the tiebreaker, with the lower-numbered interface being preferred over others.
  • Page 121 Ring Setting Ring state: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to enable Ring state. Use the no parameter with this command to disable Ring state.

  • Page 122: Vlan

    VLAN VLAN Mode Setting, 802.1Q VLAN Setting, 802.1Q Port Setting, Port Based VLAN 802.1Q VLAN Setting VLAN Database: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use vlan database command to enter the VLAN configuration mode.
  • Page 123 disable Sets VLAN into a disable state. 4. Example: The following example enables the vlan VLANID (2) and name VLAN_NAME (vlan2) of bridge GROUP (1): switch_a(config-vlan)#vlan 2 bridge 1 name vlan2 state enable switch_a(config-vlan)# 802.1Q Port Setting Switchport mode access: 1.
  • Page 124 2. Usage: Use switchport mode hybrid command to set the switching characteristics of the Layer-2 interface as hybrid, and classify both tagged and untagged frames. Use the no switchport hybrid command to reset the mode of the Layer-2 interface to access (default).
  • Page 125 Switchport hybrid allowed vlan: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use this command to set the switching characteristics of the Layer-2 interface to hybrid. Both tagged and untagged frames will be classified over hybrid interfaces.
  • Page 126 The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use this command to set the switching characteristics of the Layer-2 interface to trunk. The all parameter indicates parameter indicates that no VLAN ID is configured on this port. The add and remove Use the no parameter to remove all VLAN IDs configured on this port.
  • Page 127 2. Usage: Use this command to set or remove the default VLAN for the interface. 3. Command Syntax: switchport portbase add｜remove vlan VLANID VLANID The ID of the VLAN will be added to or removed from the Layer-2 interface. 4. Example: The following example specifies to add the interface fe1 (port 1) to VLANID (2): switch_a(config)#interface fe1 switch_a(config-if )#switchport portbase add vlan 2...

  • Page 128: Qos

    Global Configuration, 802.1p Priority, DSCP Global Configuration QoS: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use mls qos enable command to globally enable QoS. Use the no mls qos command to globally disable QoS.
  • Page 129 Strict Priority: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use priority-queue out command to enable the egress expedite queue. Use the no priority-queue out command to disable the egress expedite queue. 3.
  • Page 130 Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use wrr-queue cos-map command to specify CoS values for a queue. 3. Command Syntax: wrr-queue cos-map QUEUE_ID COS_VALUE QUEUE_ID Queue ID. Range is 0-3. COS_VALUE CoS values.

  • Page 131: Snmp

    SNMP SNMP General Setting, SNMP v1/v2c, SNMP v3 SNMP General Setting SNMP Status: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use snmp-server enable command to enable and no snmp-server enable command to disable SNMP to the switch.
  • Page 132 Location: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use snmp-server location command to specify and no snmp-server location command to remove location for SNMP. 3.
  • Page 133 Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to specify trap community name for SNMP. Use the no parameter with this command to remove trap community name for SNMP. 3.
  • Page 134 The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use snmp-server trap-type enable linkDown command to enable link down trap for SNMP. Use the no snmp-server trap-type enable linkDown command to disable link down trap for SNMP. 3. Command Syntax: (no) snmp-server trap-type enable linkDown 4.
  • Page 135 2. Usage: Use snmp-server community get command to specify and no snmp-server community get command to remove get community name for SNMP. 3. Command Syntax: snmp-server community get NAME no snmp-server community get NAME The get community name for SNMP. 4.
  • Page 136 Add a user using snmp v3 with read-only or read-write access mode and without authentication. Use the no form of the command to delete this user. 3. Command Syntax: (no) snmp-server v3-user USERNAME (ro｜rw) noauth USERNAME Specify a user name. ro read-only access mode rw read-write access mode 4.
  • Page 137 The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Add a user using snmp v3 with read-only or read-write access mode, MD5 or SHA authentication, and privacy. Use the no form of the command to delete this user. 3.
  • Page 138 802.1x Radius Configuration, Port Authentication Radius Configuration Radius Status: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use dot1x system-auth-ctrl command to globally enable authentication. Use no dot1x system-auth-ctrl command to globally disable authentication.
  • Page 139 switch_a(config)# Secret Key: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to set the shared secret key between a Radius server and a client. 3.

  • Page 140: Port Authentication

    switch_a(config)# Retransmit: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to specify the number of times the Switch transmits each radius request to the server before giving up. 3.
  • Page 141 switch_a(config-if )# Port Control: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if )# 2. Usage: Use this command to force a port state. Use no dot1x port-control command to remove a port from the 802.1x management.
  • Page 142 3. Command Syntax: dot1x timeout re-authperiod SECS no dot1x timeout re-authperiod SECS <1-4294967295> Specify the seconds between reauthorization attempts. The default time is 3600 seconds. 4. Example: The following example specifies to set the interval 25 seconds between reauthorization attempts: switch_a(config)#interface fe1 switch_a(config-if )#dot1x timeout re-authperiod 25 switch_a(config-if )#...

  • Page 143: Other Protocols

    Other Protocols GVRP, IGMP Snooping, NTP GVRP GVRP: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use set gvrp enable bridge command to enable (set) and set gvrp disable bridge command to disable (reset) GVRP globally for the bridge instance.
  • Page 144 The following example enables dynamic VLAN creation for bridge GROUP (1): switch_a(config)#set gvrp dynamic-vlan-creation enable bridge 1 switch_a(config)# Per port setting: GVRP: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.

  • Page 145: Igmp Snooping

    The following example sets GVRP applicant state to active on the interface fe1 (port 1): switch_a(config)#set gvrp applicant state active fe1 switch_a(config)# Per port setting: GVRP registration: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.
  • Page 146 (VLAN) when no multicast routing protocol is configured in the subnet (VLAN). When enabled, the IGMP Snooping querier sends out periodic IGMP queries for all interfaces on that VLAN. Use the no ip igmp snooping querier command to disable IGMP querier configuration. 3.
  • Page 147 Use ip igmp version command to set the current IGMP protocol version on an interface. To return to the default version, use the no ip igmp version command. 3. Command Syntax: ip igmp version VERSION no ip igmp version VERSION IGMP protocol version number. 4.
  • Page 148 Then logon to Interface mode. vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface vlan1.1 switch_a(config-if )# 2. Usage: Use ip igmp query-interval command to configure the frequency of sending IGMP host query messages. To return to the default frequency, use the no ip igmp query-interval command. 3.
  • Page 149 4. Example: The following example configures a maximum response time of 8 seconds on vlan1.1: switch_a(config)#interface vlan1.1 switch_a(config-if )#ip igmp query-max-response-time 8 switch_a(config-if )# IGMP passive snooping: Static mc router port: 1. Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 150 2. Usage: Use ip igmp snooping report-suppression command to enable report suppression for IGMP versions 1 and 2. Use the no ip igmp snooping report-suppression command to disable report suppression. 3. Command Syntax: (no) ip igmp snooping report-suppression 4. Example: The following example enables report suppression for IGMPv2 reports on vlan1.1: switch_a(config)#interface vlan1.1 switch_a(config-if )#ip igmp version 2...
  • Page 151 The switch_a(config)# prompt will show on the screen. switch_a(config)# 6. Usage: Use ntp enable command to enable NTP for the Switch. Use no ntp enable command to disable NTP for the Switch. 7. Command Syntax: (no) ntp enable 8. Example: The following example enables NTP for the Switch: switch_a(config)#ntp enable switch_a(config)#...
  • Page 152 3. Command Syntax: ntp sync-time 4. Example: The following example synchronizes time with NTP server: switch_a(config)#ntp sync-time switch_a(config)# Time Zone: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2.
  • Page 153 Daylight Saving Mode: 1. Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# 2. Usage: Use this command to enable daylight saving. Use no clock summer-time command to disable daylight saving. 3.

  • Page 154: Specifications

    Specifications Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX Store-and-Forward Switching Method Forwarding Rate 10Base-T 10 / 20Mbps half / full-duplex 100 / 200Mbps half / full-duplex 100Base-TX 100Base-FX/BX 200Mbps full-duplex 2000Mbps full-duplex 1000Base-T/SX/LX/BX Performance 14,880pps for 10Mbps 148,810pps for 100Mbps...

  • Page 155: Appendix A

    Appendix A DB9 DCE pin assignment Name RS232 Signal name Data Carrier detect Received data Transmit data Signal ground Data set Ready Clear to send User Manual Page 155...

  • Page 156: Appendix B

    Appendix B Time Zone Country and City Lists Europe MEZ-1MESZ Europe/Vienna, Europe/Berlin, Europe/Zurich MET-1METDST Africa/Tunis, CET, MET, Europe/Tirane, Europe/Andorra, Europe/Brussels, Europe/Prague, Europe/Copenhagen, Europe/Paris, Europe/Gibraltar, Europe/Budapest, Europe/Rome, Europe/Vaduz, Europe/Luxembourg, Europe/Malta, Europe/Monaco, Europe/Amsterdam, Europe/Oslo, Europe/Warsaw, Europe/Belgrade, Europe/Madrid, Africa/Ceuta, Europe/Stockholm, Europe/Vatican, Europe/San_Marino, Arctic/Longyearbyen, Atlantic/Jan_Mayen, Europe/Ljubljana, Europe/Sarajevo, Europe/Skopje, Europe/Zagreb, Europe/Bratislava, Poland...
  • Page 157 RFT-11RFTDST Asia/Sakhalin, Asia/Magadan RFT-12RFTDST Asia/Kamchatka, Asia/Anadyr North America PST8PDT America/Los_Angeles, US/Pacific-New, PST8PDT, US/Pacific, SystemV/PST8PDT MST7MDT America/Denver, America/Boise, America/Cambridge_Bay, America/Shiprock, MST7MDT, Navajo, US/Mountain, SystemV/MST7MDT MST7 America/Phoenix, MST, US/Arizona, SystemV/MST7 CST6CDT America/Chicago, America/North_Dakota/Center, America/Menominee, America/Costa_Rica, America/Managua, CST6CDT, US/Central, SystemV/CST6CDT EST5EDT America/New_York, America/Kentucky/Louisville, America/Kentucky/Monticello, America/Detroit, America/Pangnirtung, America/Louisville, EST5EDT, US/Eastern, US/Michigan, SystemV/EST5EDT...
  • Page 158 America/Bahia, America/Sao_Paulo, America/Cuiaba, America/Montevideo, America/Catamarca, America/Rosario, Brazil/East WBST4WBDT America/Campo_Grande, America/Boa_Vista, America/Manaus, Atlantic/Stanley, America/Asuncion, Brazil/West ACRE5 America/Rio_Branco, America/Porto_Acre, Brazil/Acre NORO2 America/Noronha, Brazil/DeNoronha CST4CDT Antarctica/Palmer, America/Santiago, Chile/Continental EIST6EIDT Pacific/Easter, Chile/EasterIsland Asia MST-8 Asia/Kuala_Lumpur, Asia/Kuching CST-8 Asia/Harbin, Asia/Shanghai, Asia/Chongqing, Asia/Urumqi, Asia/Kashgar, Asia/Hong_Kong, Asia/Macau, Asia/Macao, Hongkong, PRC, ROC Oceania CST-9:30CDT Australia/Adelaide, Australia/Broken_Hill,...
  • Page 159 Etc/Zulu, Etc/Greenwich, Etc/GMT-0, Etc/GMT+0, Etc/GMT0, Africa/Timbuktu, GMT+0, GMT-0, GMT0, Greenwich, Iceland, UCT, UTC, Universal, Zulu UCT1 Atlantic/Cape_Verde, Etc/GMT+1 UCT2 Atlantic/South_Georgia, Etc/GMT+2 UCT3 Antarctica/Rothera, America/Belem, America/Cayenne, America/Paramaribo, Etc/GMT+3 UCT4 America/Anguilla, America/Antigua, America/Barbados, America/Dominica, America/Grenada, America/Guadeloupe, America/Martinique, America/Montserrat, America/Puerto_Rico, America/St_Kitts, America/St_Lucia, America/St_Vincent, America/Tortola, America/St_Thomas, America/Aruba, America/La_Paz, America/Porto_Velho, America/Curacao,...
  • Page 160 Asia/Qatar, Asia/Riyadh, Asia/Aden, Etc/GMT-3 UCT-4 Indian/Mauritius, Indian/Reunion, Indian/Mahe, Asia/Muscat, Etc/GMT-4 UCT-5 Indian/Kerguelen, Indian/Maldives, Asia/Karachi, Asia/Dushanbe, Asia/Ashgabat, Asia/Samarkand, Asia/Tashkent, Etc/GMT-5 UCT-5:45 Asia/Katmandu UCT-6 Antarctica/Mawson, Antarctica/Vostok, Asia/Dhaka, Asia/Thimphu, Indian/Chagos, Asia/Colombo, Etc/GMT-6, Asia/Dacca, Asia/Thimbu UCT-6:30 Asia/Rangoon, Indian/Cocos UCT-7 Antarctica/Davis, Asia/Phnom_Penh, Asia/Jakarta, Asia/Pontianak, Asia/Vientiane, Asia/Bangkok, Asia/Saigon, Indian/Christmas, Etc/GMT-7 UCT-8 Antarctica/Casey, Asia/Brunei, Asia/Taipei,...
  • Page 161 UCT12 Etc/GMT+12 North America (Canada) PST8PDT_CA America/Vancouver, America/Dawson_Creek, America/Whitehorse, America/Dawson, Canada/Pacific MST7MDT_CA America/Edmonton, America/Yellowknife, America/Inuvik, Canada/Mountain CST6CDT_CA America/Rainy_River, America/Winnipeg, America/Rankin_Inlet, Canada/Central EST5EDT_CA America/Montreal, America/Toronto, America/Thunder_Bay, America/Nipigon, America/Iqaluit, Canada/Eastern AST4ADT_CA America/Goose_Bay, America/Halifax, America/Glace_Bay, Canada/Atlantic North America (Cuba) EST5EDT_CU America/Havana, Cuba North America (Haiti) EST5EDT_HT America/Nassau, America/Santo_Domingo, America/Port-au-Prince, America/Bogota...
  • Page 162 User Manual Page 162...

Table of Contents
