Optimizing the 10-GbE port configuration

The 10-GbE modules (J8707A, J8708A, J9309A, and J8694A) used in the HP ProCurve Switch 8200zl, select

3500, 5400zl, and 6200yl series are designed to deliver full 10 Gbps wire-speed to each port, where either

one or two ports are in a linked state with another device . When three or four 10-GbE ports are in a linked

state, the module supports an aggregate bandwidth of 28 .8 Gbps across the linked ports .

As illustrated in the figure below, internally, there are two 14 .4 Gbps channels between each 4-port 10-GbE

module and the switch fabric .

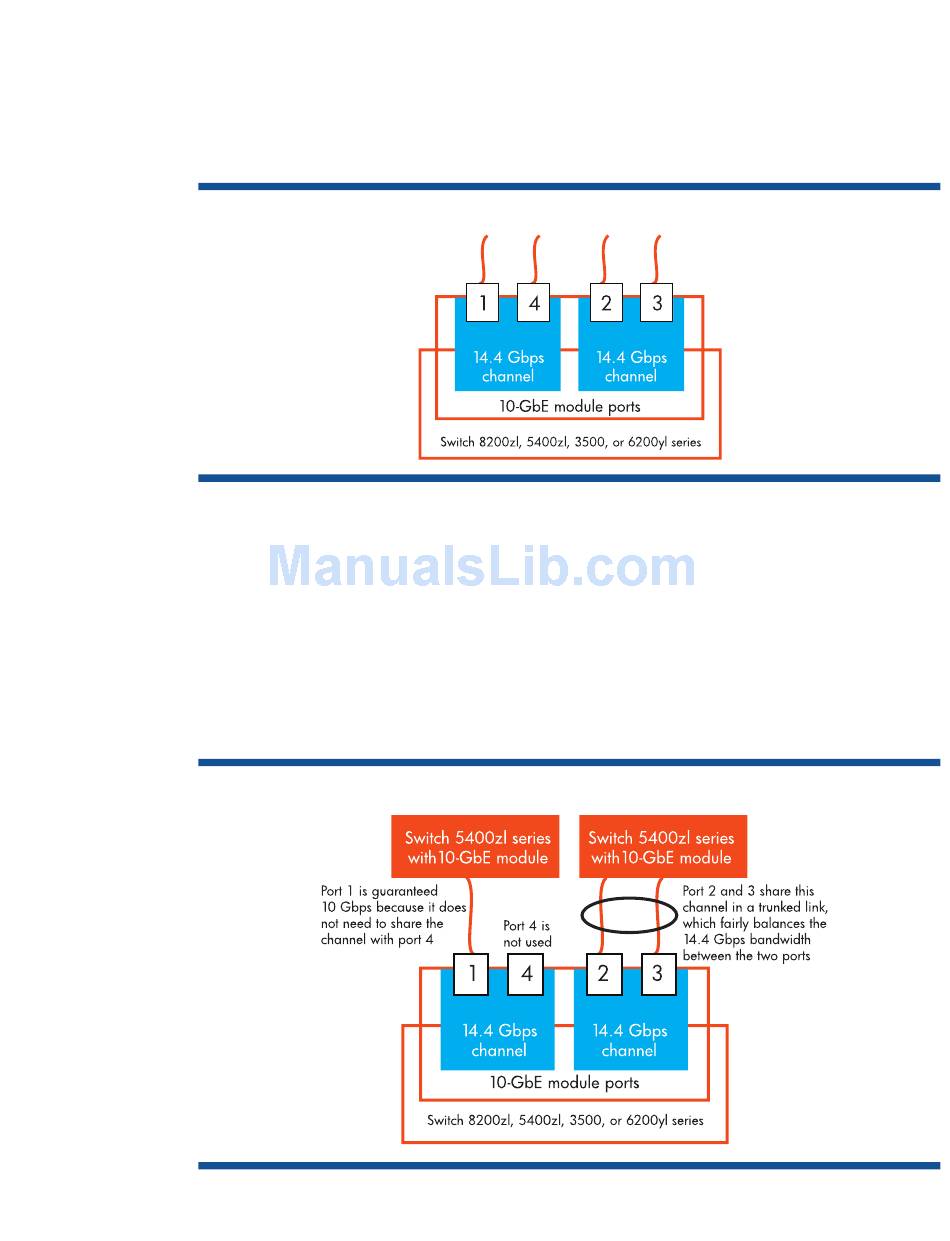

Figure 21. 10-GbE module architecture showing ports grouped by 14.4 Gbps channel. Architecture model applies to the HP ProCurve Switch 8200zl,

5400zl, select 3500, and 6200yl series product lines.

• When any two 10-GbE ports on a given module are in a linked state, each port automatically operates on its

own channel, which guarantees 10 Gbps of bandwidth for each port .

• When more than two ports of a 10-GbE module are in a linked state, ports 1 and 4 are statically mapped

to share one 14 .4 Gbps channel, while ports 2 and 3 are statically mapped to share the other 14 .4 Gbps

channel .

– If only one port in a given channel is in a linked state, then that port operates at wire-speed and the other

port uses no bandwidth .

– If both ports in a given channel are in a linked state, then the 14 .4 Gbps of bandwidth is balanced fairly

between the two ports .

For example, in an application where three ports on the module are needed and it is important to ensure that

port 1 always has a full 10 Gbps available, the connection choices shown in the next figure would be used .

Figure 22. Approach for guaranteeing 10 Gbps on a specific port
