The 8200zl Management Modules are hot-swappable—the switch does not have to be powered-off to remove
either management module . The dual management module (MM) design allows either module to manage the
system in an active/standby model . By default, MM1 will assume the "active" role; but in general, whichever
MM was the last one to be "active", the other MM will assume the "standby" role . All operations are performed
through the "active" MM (either MM1 or MM2) . If the active MM were to fail, the standby MM takes control of
the switch and continues operation . However, if only one management module is running and then is removed,
all ports lose communication and the system will be powered down .

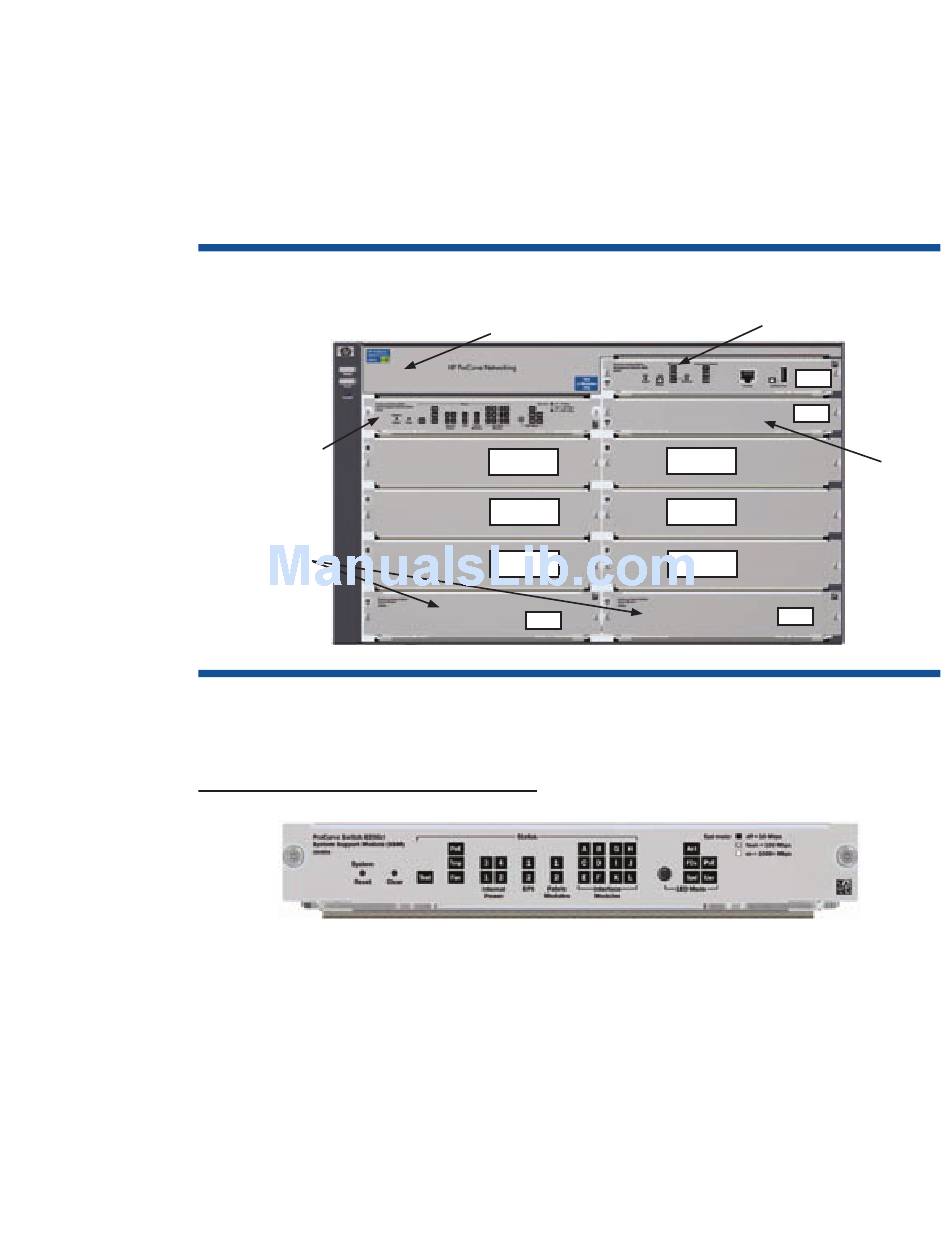

Switch 8206zl Chassis layout

The Switch 8206zl is a rack-mountable, 6U-height chassis . The interface modules are inserted in the front slots,
labeled A through F . Management and fabric modules are labeled MM1/MM2 and FM1/FM2, respectively .
Figure 3. J8715A HP ProCurve Switch 8212zl Base System slot labeling
(MM = Management Module; FM = Fabric Module; all others = Interface Module)
J9095A System
Support Module
J9093A 8200zl
Fabric Modules
Switch 8200zl series-specific modules and components
The Switch 8200zl Series shares interface modules and power supplies with the Switch 5400zl series . This next
section will cover details of modules and components specific to the 8200zl series .
J9092A HP ProCurve 8200zl Management Module
Power, Fault, Locator LEDs
Slot A
Slot C
Slot E
FM1
J9092A 8200zl
Management Module
MM1
MM2
Slot B
Management
Slot D
Slot F
FM2
2nd
Module slot
13
